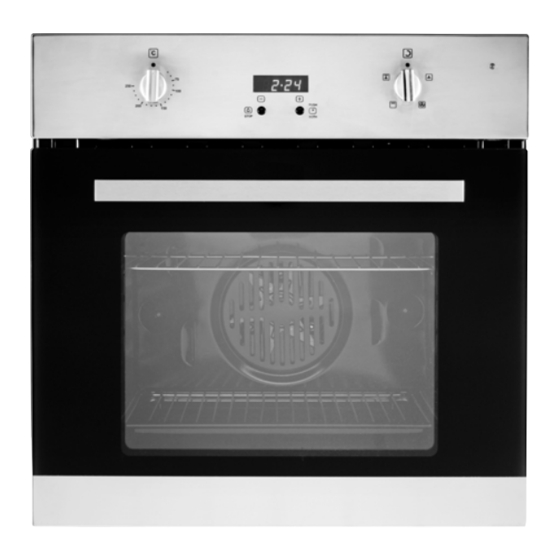

- Page 1 Built-in 4 Function Fan Oven with LED Display CZ55579 INSTALLATION AND OPERATING INSTRUCTIONS The product may differ from the one illustrated but the installation and operation procedure remains the same...
-
Page 2: Table Of Contents
Contents Introduction Unpacking Before installation Location Housing dimensions Electricity supply Installing the oven Safety notes Using the oven Using the grill Minute minder and clock Cleaning the oven Cleaning the glass door Changing the lamp Mains lead replacement Plug replacement For best cooking results Troubleshooting guide Safe oven disposal... -
Page 3: Unpacking
Introduction This quality oven has been designed to provide trouble-free service provided it is installed and maintained correctly. This oven is for domestic use only. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference. -
Page 4: Location
Location Avoid installing the oven too close to a fridge or boiler. The oven can be installed either in a housing unit as shown in Figure 1 or under a worktop as shown in Figure 2. Ensure that the surrounding material is heat resistant and non-combustible. Certain minimum clearances must be allowed for when planning the unit’s location. -
Page 5: Electricity Supply
Electricity supply Once a satisfactory location has been established, the electrical supply to the appliance must be arranged beneath the work surface. If an existing mains supply does not exist at the location, a mains wall outlet below the work surface, and a suitably rated isolator switch should be installed above the work surface and to one side of the unit, in case of an emergency (Figure 4). - Page 6 Please read these safety notes before using the oven • Make sure you understand what the oven • Never leave children unsupervised where the oven is installed as the appliance will get hot controls do before using the oven. during and after use. •...
-
Page 7: Using The Oven
Using the oven NOTE: When using for the first time the oven may smell for a short time while burning off dust and manufacturing residues from the heating elements. This is normal and does not indicate a fault with the oven. -
Page 8: Using The Grill
Using the grill IT IS IMPORTANT TO CLOSE THE OVEN DOOR WHEN GRILLING FOOD. Move the shelf to the first or second position from the top. Select the symbol on the control selector. Turn the thermostat control between 50°C and 250°C and preheat the element for five minutes. Place the food in the middle of the grill pan and position the pan so the food is near but not touching the top element. -
Page 9: Cleaning The Oven
Cleaning the oven Before cleaning the oven, wait for it to cool down. It is best to clean the bottom of the oven after every use and not allow the food or spots of oil to remain and become permanent stains. Wash surfaces in warm soapy water. -
Page 10: Mains Lead Replacement
Mains lead replacement Do not attempt to repair or replace the mains connecting cable yourself, consult a qualified electrician. Plug replacement This product is supplied with a fitted plug which contains a GREEN/ 13A fuse. If you are simply replacing the fuse, you must YELLOW use a 13A fuse which has been approved by ASTA to (EARTH) -
Page 11: For Best Cooking Results
For best cooking results Grill Even cooking • Ensure that the grill pan is positioned centrally below the grill element. Fat splattering: To avoid fat splattering onto the oven interior • Ensure that the grill pan is not lined with foil •... -
Page 12: Safe Oven Disposal
Safe oven disposal To help the environment, Local authority instructions should be followed for the disposal of your product This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
