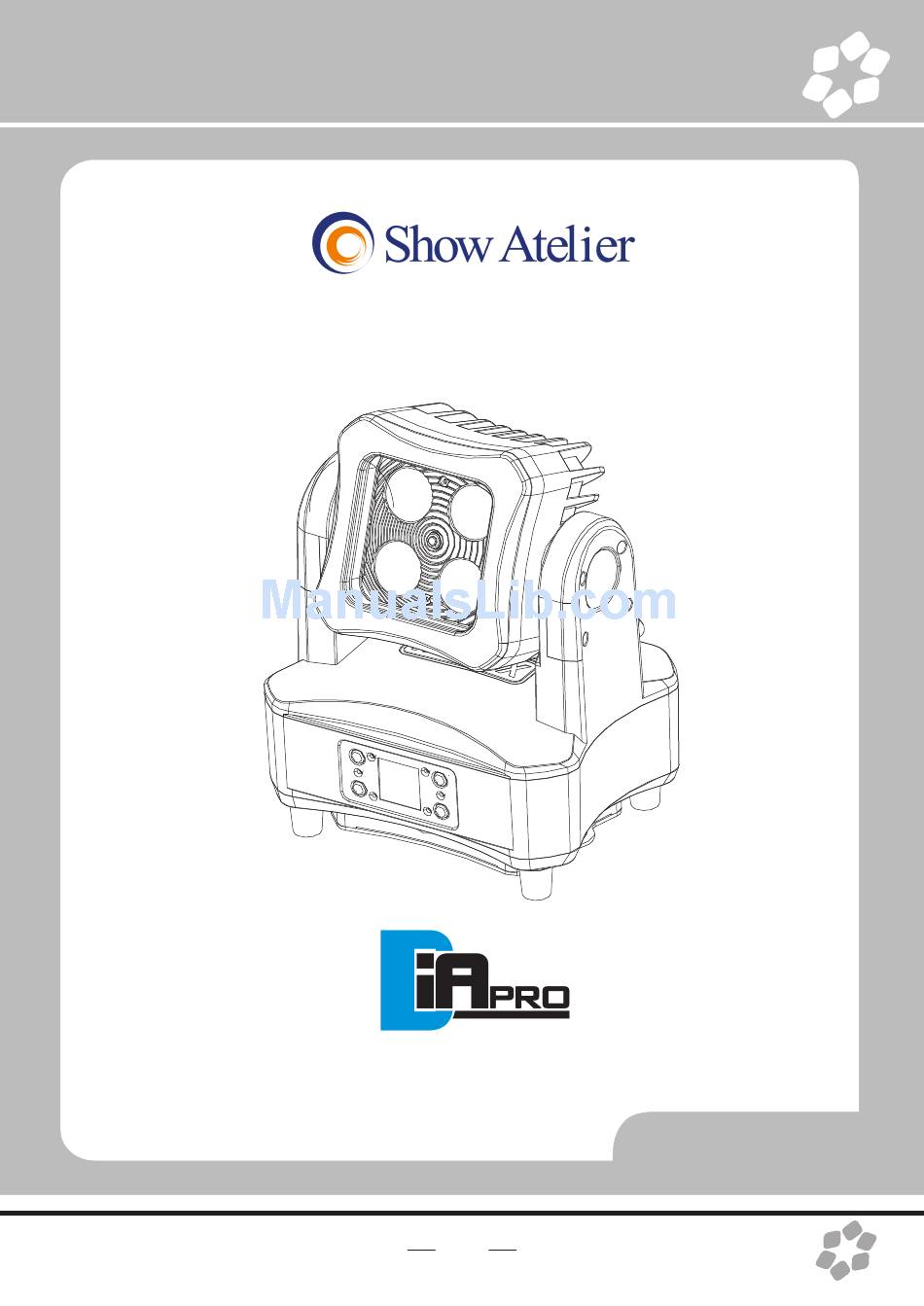

  • Page 1 DIAPro LED Battery Wash Beam IP65 USER MANUAL...

  • Page 2: Before You Begin

    1.BEFORE YOU BEGIN What is included ò 1 x Fixture ò 1 x Power cable with plug ò 1 x User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton; check the contents to ensure that all parts are present, and have been received in good condition.

  • Page 3: Safety Instructions

    Safety Instructions WARNING! Please read these instructions carefully, which includes important information about the installation, usage and maintenance of this product.. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING!

  • Page 4: Specifications

    2.INTRODUCTION Specifications Voltage Rating: AC100V～240V 50-60Hz Power Rating: 50W LED Quantity: 4 x10 W RGBW Lens: 8°-40° Ζοοm Ingress Protection: IP65 /indoor(option) Product Size: 240x191x286 N/W:6Kgs Battery Duration 9 hours full white, 20 hours color fade 4-hour fast charge from flight case, 8 hours in slow charge with PowerCon More than 1,000 charge/deplete cycles No memory effect...

  • Page 5: Installation Requirement

    3.SETUP Installation Requirement This product can be used in a variety of situations, can hang and put on the ground. If hanging the fixture for over head use, then please follow the below steps. Please choose the suitable location to put or hang the light when installing it.

  • Page 6: Connection Of Dmx Signal Wire

    Connection of DMX Signal Wire Please use the fixture controller wire specially when use the DMX512 Controller. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. Connect the end of the cable coming from the first fixture which will have a (male) 3 pin connector to the input connector of the next fixture consisting of a (female) 3 pin connector.

  • Page 7: Pin To 5 Pin Conversion Chart

    3-PIN TO 5-PIN CONVERSION CHART Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. 3 PIN TO 5 PIN CONVERSION CHART Conductor 3 Pin Female(output) 5 Pin Male (Input) Ground/Shield Pin 1...
  • Page 8 MAIN SUB- INSTRUCTION FUNCTION SELECTION FUNCTION Set DMX start address 001~512 DMX ADDRESS ADVANCED 12CH 12 Channls CONTROL BASIS 05CH 5 Channls MODE NORMAL 08CH 8 Channls Dimmer 00~100 Dimmer 00~100 User can combine RED, GREEN, Green 00~100 BLUE,WHITE to generate a custom color Blue 00~100 Static color...

  • Page 9: Dmx512 Controller Mode

    DMX512 Controller Mode 1、Setting DMX512 Address 【 】 【001--512】 DMX ADDRESS 2、 Setting Channels 【CONTROL 】 【 】 MODE [ ADVANCED,BASIS,NORMAL WDMX control 【 】 【WDMX】 【ON/OFF/RESET】 PERSONALITY [ [ If the unit is successfully connected in the home display the sign“ ”.

  • Page 10: Dmx512 Channel Values

    DMX512 Channel Values Value Description Electronic shutter effect 0 - 19 Shutter closed 20 - 24 Shutter open 25 - 64 Strobe 1 (fast --slow) 65 - 69 Shutter open 70 - 84 Strobe 2: opening pulse (fast--slow) 85 - 89 Shutter open 90 - 104 Strobe 3: closing pulse (fast--slow)
