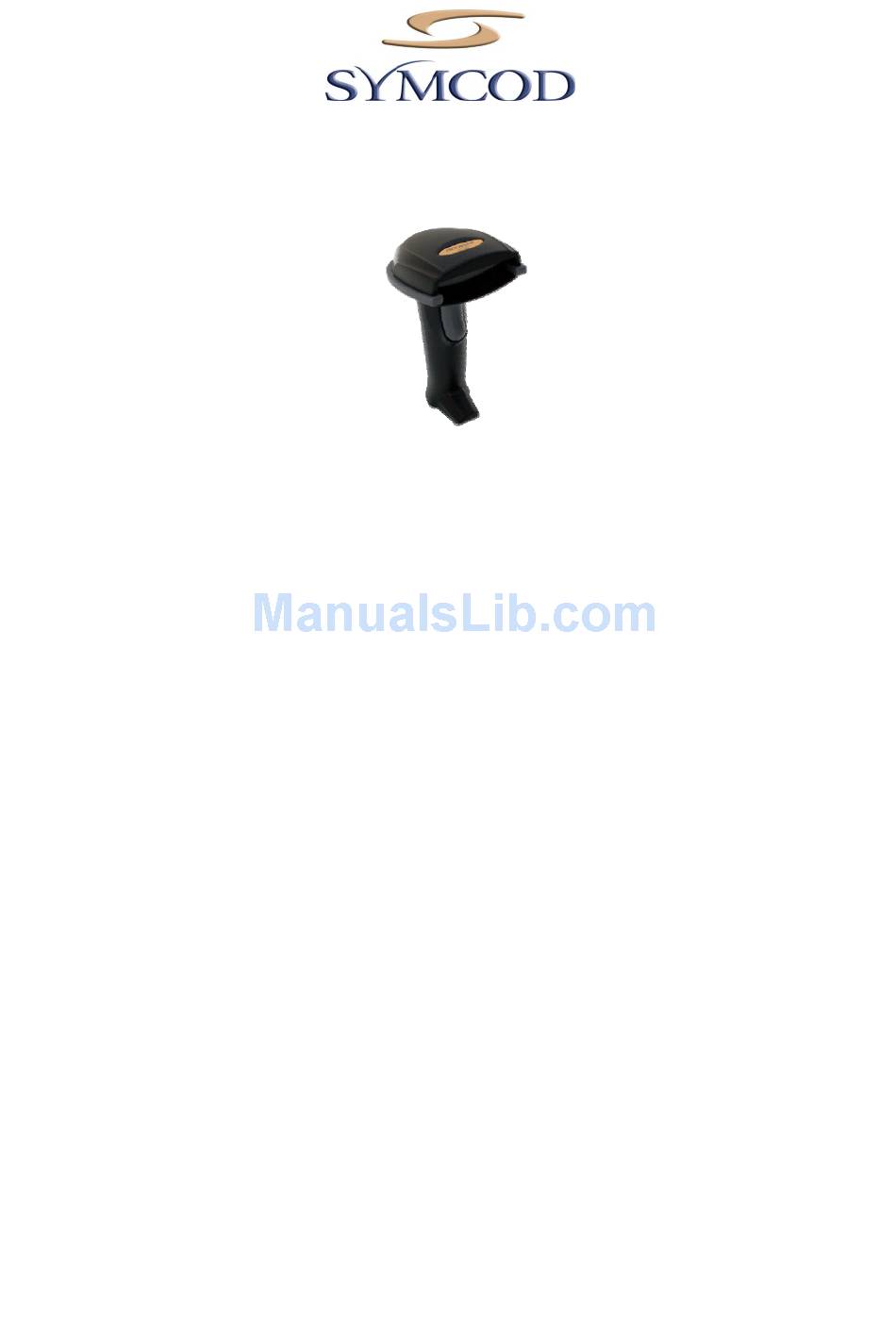

  • Page 1 WWW.SYMCOD.COM Manual LS6300 Laser Barcode Scanner Version: 30/04/2013...
  • Page 2 The Symcod LS6300 is an affordable scanner solution for operation management. Always looking for reliable and economical solution, this model has been specially selected by Symcod for its excellent value for money. Recommended for light industrial operation, it is design without mechanical moving parts which is an asset.
  • Page 3 RS-232 P r o g r a m m a t i o n g u i d e 1. Use the cable required for the selected interface 2. Connect the cable to the device 3. Scan the « Default » code to reset the scanner to the factory configuration. 4.
  • Page 4 Multi-Interface Functions – 1 BUZZER / GOOD READ BEEP TONE GOOD READ BEEP TONE NONE RESET IMAGE DECODE OPTIONS REVERSE IMAGE – DECODE OPTIONS REVERSE IMANGE ENABLE DISABLE CODE ID DECODE OPTIONS SEND BAR CODE ID - DECODE OPTIONS SEND BAR CODE DISABLE ID –...
  • Page 5 Multi-Interface Functions – 2 READING SCAN MODE SCAN MODE – SINGLE SCAN NO MODE SINGLE SCAN TRIGGER SCAN MODE – MULTISCAN SCAN MODE – MULTISCAN NO TRIGGER SCAN MODE - PULSE LASER/CCD TIMEOUT LASER/CCD TIMEOUT 5 SECONDS 2 SECONDS LASER/CCD PULSE RATE - 7 LASER/CCD PULSE RATE - 3...
  • Page 6 Keyboard Language Italian (Original setting) Norway France Germany Vietnam Sweden Spain Denmark Portugal Switzerland Hungary *As a general rule, the following characters are not supported by the scanner for countries other than United States: @ | $ # { } [ ] = / ‘ \ < > ~...
  • Page 7 Symbologies On/Off - 1 CODE 11 CODE 11 - ENABLE CODE 11 - DISABLE CODE 39 CODE 39 ENABLE CODE 39 DISABLE FULL ASCII ENABLE FULL ASCII DISABLE...
  • Page 8 Symbologies On/Off - 2 CODE 93 CODE 93 - ENABLE CODE 93 - DISABLE CODE 128 CODE 128 - DISABLE CODE 128 - ENABLE CODE 128 ISBT - ENABLE CODE 128 ISBT - DISABLE CODABAR CODABAR - ENABLE CODABAR - DISABLE INTERLEAVE 2 OF 5 I2OF5 - ENABLE...
  • Page 9 Symbologies On/Off - 3 MSI - ENABLE MSI - DISABLE UPC/EAN UPC-A DISABLE UPC-A ENABLE UPC-E ENABLE UPC-E DISABLE EAN-13 ENABLE EAN-13 DISABLE EAN-8 ENABLE EAN-8 DISABLE...
  • Page 10 Symbologies Set Up - 1 CODE 11 CODE 11 ID CHARACTER – “m” CODE 11 ID CHARACTER – “Z” CODE 11 DOUBLE CHECK CODE 11 DOUBLE CHECK ENABLE DISABLE CODE 39 CODE 39 SS CHAR - NONE CODE 39 SS CHAR ‛+’ CODE 39 SEND START/STOP CODE 39 SEND START/STOP CHARS ENABLE...
  • Page 11 Symbologies Set Up – 2 CODE 93 CODE 93 ID CHARACTER – “h” CODE 93 ID CHARACTER – “Z” CODE 93 DOUBLE CHECK - ENABLE CODE 93 DOUBLE CHECK - DISABLE CODE 128 CODE 128 ID CHARACTER – ‛g’ CODE128 ID CHARACTER - ‛Z’ CODE 128 DOUBLE CHECK CODE 128 DOUBLE CHECK ENABLE...
  • Page 12 Symbologies Set Up – 3 CODABAR CODABAR ID CHARACTER –‛k’ CODABAR ID CHARACTER –‛Z’ CODABAR DOUBLE CHECK - ENABLE CODABAR DOUBLE CHECK - DISABLE Interleave 2 of 5 I2OF5 CHECK DIGIT - DISABLE I2OF5 CHECK DIGIT - ENABLE I2OF5 ID CHARACTER – ‛i’ I2OF5 ID CHARACTER –...
  • Page 13 Symbologies Set Up – 4 ID2OF5 DOUBLE CHECK - ENABLE ID2OF5 DOUBLE CHECK - DISABLE MSI CHECK DIGIT – MOD 10 MSI CHECK DIGIT –RESET MSI ISBN ID CHARACTER –‛f’ MSI ISBN ID CHARACTER –‛Z’ MSI DOUBLE CHECK - ENABLE MSI DOUBLE CHECK - DISABLE UPC/EAN EXPAND UPC-E TO UPC-A ENABLE...
  • Page 14 Symbologies Set Up – 5 SEND UPC-A CHECK DIGIT ENABLE SEND UPC-A CHECK DIGIT DISABLE SEND UPC-E CHECK DIGIT ENABLE SEND UPC-E CHECK DIGIT DISABLE SEND EAN-13 CHECK DIGIT ENABLE SEND EAN-13 CHECK DIGIT DISABLE SEND EAN-8 CHECK DIGIT ENABLE SEND EAN-8 CHECK DIGIT DISABLE UPC-A ID CHARACTER ‛b’...
  • Page 15 Symbologies Set Up – 6 EAN-8 ID CHARACTER ‛d’ EAN-8 ID CHARACTER ‛Z’ UPC/EAN ISBN ID CHARACTER ‛f’ ISBN ID CHARACTER ‛Z’ UPC/EAN SUPPLEMENTS UPC/EAN SUPPLEMENTS DISABLE 2 DIGIT ONLY UPC/EAN SUPPLEMENTS UPC/EAN SUPPLEMENTS 5 DIGIT ONLY 2 & 5 DIGIT UPC/EAN DOUBLE CHECK UPC/EAN DOUBLE CHECK>...

  • Page 16: Edit Setup Bar Codes

    EDIT SETUP BAR CODES EDIT #1 – STRIP 1 LEADING CHARACTER EDIT #1 - OFF ON ALL BAR CODES THAT START WITH ‛12345’ EDIT #2 – STRIP 1 TRAILING CHARACTER EDIT #2 – OFF EDIT #1 – FILTER LEADING SPACES EDIT #1 - OFF EDIT –...

  • Page 17: Macro/Special Keys Setup Bar Codes

    MACRO/SPECIAL KEYS SETUP BAR CODES MACRO #1 – FIND ‛1’ AND REPLACE MACRO #1 - DISABLED WITH ‛ONE’ MACRO #2 – FIND ‛2’ AND REPLACE MACRO #2 - DISABLED WITH ‛TWO’ FOR CODE 39 ONLY MACRO – FIND ‛0’ AND MACRO –...

  • Page 18: Termination String Setup Bar Codes

    TERMINATION STRING SETUP BAR CODES STRING #1 – TERMINATION STRING #1 - DISABLE CHAR - CR STRING #2– CODE 128 TERMINATION STRING #2– CODE 128 TERMINATION CHAR - CR CHAR - REMOVED STRING – CODE 39 TERMINATION STRING – CODE 39 TERMINATION CHAR CHAR - TAB –...
