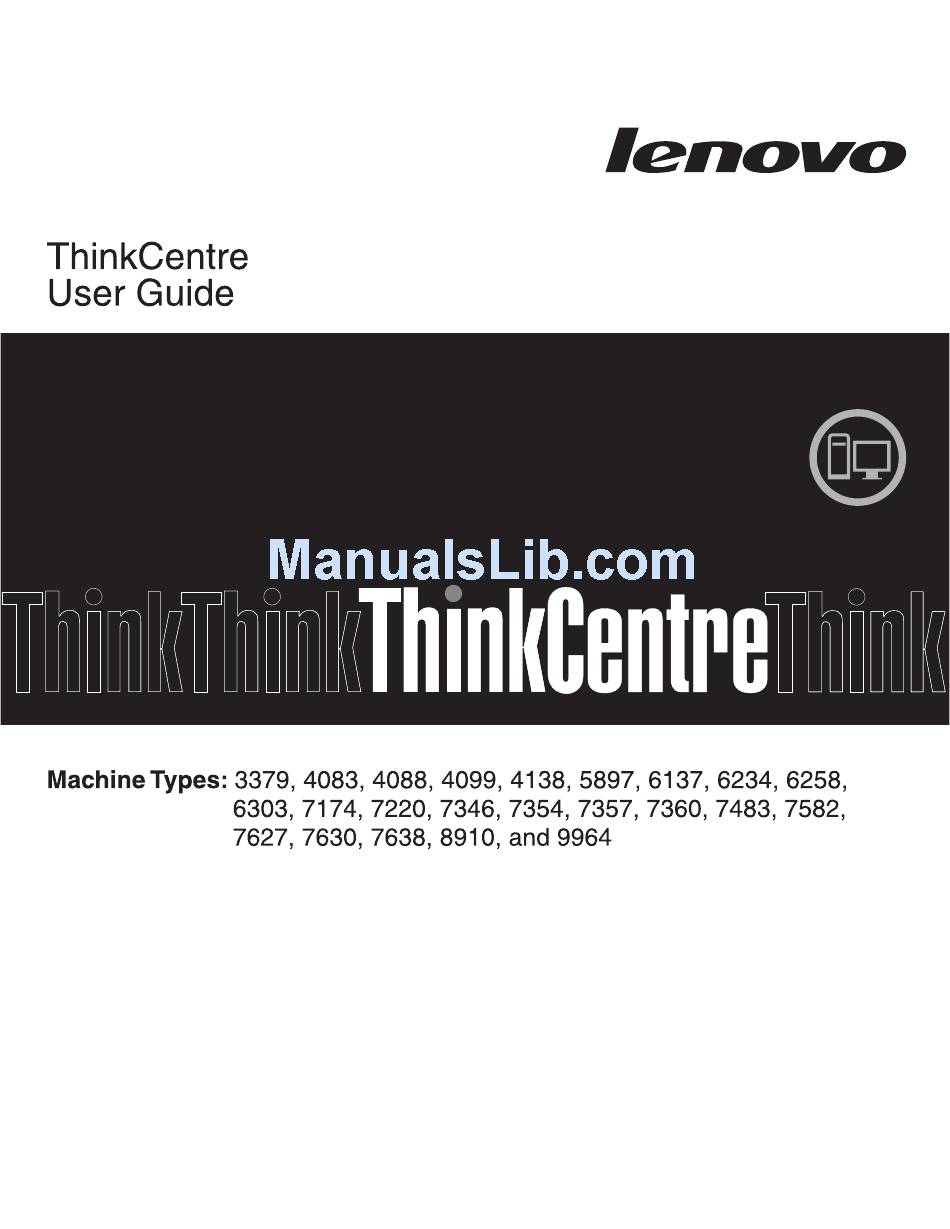

  • Page 3 ThinkCentre User Guide...
  • Page 4 Third Edition (October 2009) © Copyright Lenovo 2009. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

  • Page 5: Table Of Contents

    Creating a recovery repair diskette Using a recovery repair diskette Installing or reinstalling device drivers . © Copyright Lenovo 2009 Setting a rescue device in the startup sequence Solving recovery problems . Chapter 4. Using the Setup Utility . . . 49 Starting the Setup Utility program .
  • Page 6 Appendix. Notices ..69 Television output notice . European conformance CE mark . User Guide Trademarks . . 70 Index ....71 .

  • Page 7: Important Safety Information

    If you no longer have a copy of the ThinkCentre Safety and Warranty Guide, you can obtain a Portable Document Format (PDF) version from the Lenovo site at: http://www.lenovo.com/support ©...
  • Page 8 User Guide...

  • Page 9: Chapter 1. Product Overview

    Integrated graphics card for a VGA (Video Graphics Array) connector and DisplayPort connector v PCI (Peripheral Component Interconnect) Express x16 graphics card slot on the system board for a discrete graphics card © Copyright Lenovo 2009 ® processor ™...
  • Page 10 Audio subsystem v High Definition (HD) with ADI 1882 Audio Codec v Audio line-in connector, audio line-out connector, and microphone connector on the rear panel v Microphone connector and headphone connector on the front panel v Internal speaker (some models) Connectivity v 10/100/1000 Mbps integrated Ethernet controller v PCI V.90 Data/Fax modem (some models)
  • Page 11 1. The operating systems listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by Lenovo as compatible with your computer following the publication of this booklet. Corrections and additions to this list are subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system vendor.

  • Page 12: Specifications

    Specifications This section lists the physical specifications for your computer. Dimensions Width: 317 mm (12.48 inches) Height: 99 mm (3.90 inches) Depth: 355 mm (13.98 inches) Weight Maximum configuration as shipped: 7.5 kg (16.53 lbs) Environment Air temperature: Operating: 10° to 35°C (50° to 95°F) Non-operating: -40°...

  • Page 13: Software Overview

    This section describes the Windows applications included with your computer. Software provided by Lenovo The following software programs are provided by Lenovo to help you improve productivity and reduce the cost associated with maintaining your computer. Software programs provided with your computer might vary depending on your model type and preinstalled operating system.

  • Page 14: Adobe Reader

    Lenovo, such as the Rescue and Recovery program and the Productivity Center program. ThinkVantage Power Manager: The ThinkVantage Power Manager program provides convenient, flexible, and complete power management for your ThinkCentre can adjust your power settings to achieve the best balance between system performance and power saving.

  • Page 15: Locations

    Locations Locating connectors on the front of your computer Figure 1 shows the locations of the connectors on the front of your computer. Note: Not all computer models have the following connectors. Figure 1. Front connector locations 1 USB connector 2 Microphone connector 3 Headphone connector 4 USB connector...

  • Page 16: Locating Connectors On The Rear Of Your Computer

    Locating connectors on the rear of your computer Figure 2 shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer. Figure 2.
  • Page 17 Connector Description Audio line-in connector Used to receive audio signals from an external audio device, such as a stereo system. When you attach an external audio device, a cable is connected between the audio line-out connector of the device and the audio line-in connector of the computer.

  • Page 18: Locating Components

    Locating components Figure 3 shows the locations of the various components in your computer. To open the computer cover, see “Opening the computer cover” on page 14. Figure 3. Component locations 1 Hard disk drive (some models) 2 Microprocessor, heat sink and fan assembly 3 Internal speaker (some models) User Guide...

  • Page 19: Locating Parts On The System Board

    Locating parts on the system board Figure 4 shows the locations of the parts on the system board. Figure 4. System board parts locations 1 PCI card slot 2 PCI Express x16 graphics card slot 3 Battery 4 Internal speaker connector 5 Cover presence switch connector (Intrusion switch connector) (some models)
  • Page 20 User Guide...

  • Page 21: Chapter 2. Installing Options And Replacing Hardware

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support Note: Use only computer parts provided by Lenovo. © Copyright Lenovo 2009 understand the "Important safety information" in the ThinkCentre Safety and Warranty Guide.

  • Page 22: Installing External Options

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to open the computer cover.
  • Page 23 5. Press the buttons on the sides of the computer and pivot the computer cover upward to open. Figure 5. Opening the computer cover Chapter 2. Installing options and replacing hardware...

  • Page 24: Accessing The System Board Components And Drives

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to install or replace a memory module.
  • Page 25 To install or replace a memory module: 1. Open the computer cover. See “Opening the computer cover” on page 14. 2. Pivot the optical drive bay assembly upward to access the memory slots. See “Accessing the system board components and drives” on page 16. 3.

  • Page 26: Installing Or Replacing A Pci Card

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to install or replace a PCI card. Your computer has one standard PCI card slot and one PCI Express x16 graphics card slot.
  • Page 27 To install or replace a PCI card: 1. Open the computer cover. See “Opening the computer cover” on page 14. 2. Rotate the card retainer to the open position. If you are installing a PCI card, remove the appropriate slot cover. If you are replacing an old PCI card, remove the old card that is currently installed.

  • Page 28: Installing Internal Drives

    4. Install the new card into the appropriate card slot on the system board and rotate the card retainer to the closed position. See “Locating parts on the system board” on page 11. Figure 11. Installing the PCI card What to do next: v To work with another option, go to the appropriate section.

  • Page 29: Drive Specifications

    When you install an internal drive, it is important to note the type and size of the drive that you can install in each bay. Also, it is important to correctly connect the internal drive cables to the installed drive. Drive specifications Your computer comes with the following factory-installed drives: v A 3.5-inch hard disk drive in bay 1...
  • Page 30 “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to install a drive in bay 2.

  • Page 31: Connecting A Sata Drive

    5. Slide the drive into the bay until it locks into position. Figure 14. Installing a drive in bay 2 6. Pivot the optical drive bay assembly upward to gain access to the cable connections and connect the signal cable and the power cable for the drive. 7.

  • Page 32: Replacing The Hard Disk Drive

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the hard disk drive if your computer has one.
  • Page 33 4. Push the blue handle of the hard disk drive bracket inwards to release the two clips 1 that secure the hard disk drive to the chassis and then pivot the hard disk drive upwards. Figure 16. Removing the hard disk drive 5.
  • Page 34 7. To install a new hard disk drive into the bracket, flex the bracket and align pin 1 , pin 2 , pin 3 , and pin 4 on the bracket with the holes in the hard disk drive. Figure 17. Installing the hard disk drive bracket Important: Do not touch the circuit board on the bottom of the hard disk 8.

  • Page 35: Replacing The Optical Drive

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the optical drive.

  • Page 36: Replacing The Battery

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as parallel-port assignments (configuration).
  • Page 37 4. Remove the old battery. Figure 21. Removing the old battery 5. Install a new battery. Figure 22. Installing a new battery 6. Reinstall the hard disk drive if removed. See “Replacing the hard disk drive” on page 24. 7. Close the computer cover and connect the cables. See “Completing the parts replacement”...

  • Page 38: Replacing The Power Supply Assembly

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the power supply assembly.
  • Page 39 5. Disconnect the power supply assembly cables from all drives and from the power connectors 1 and 2 on the system board. Note: You might need to remove the hard disk drive to gain easy access to the power connector 2 . See “Replacing the hard disk drive” on page Figure 24.

  • Page 40: Replacing The Heat Sink And Fan Assembly

    9. Install and tighten the four screws at the rear of the chassis to secure the power supply assembly. Note: Use only the screws provided by Lenovo. 10. Reconnect all the power supply assembly cables to the drives and the system board.
  • Page 41 4. Remove the heat sink and fan assembly from the system board by pivoting the lever 1 that secures the heat sink and fan assembly until it is fully in the up position. Note: It helps to remove the hard disk drive before this step. See “Replacing the hard disk drive”...

  • Page 42: Replacing The Card Reader

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the card reader.

  • Page 43: Replacing The Keyboard

    “Important safety information” in the ThinkCentre Safety and Warranty Guide that came with your computer. To obtain a copy of the ThinkCentre Safety and Warranty Guide, go to: http://www.lenovo.com/support This section provides instructions on how to replace the keyboard. To replace the keyboard: 1.

  • Page 44: Completing The Parts Replacement

    2. Unplug all power cords from electrical outlets. 3. Locate the connector for the mouse. Note: Your mouse might be connected to a standard mouse connector 1 or a Figure 29. Mouse connectors 4. Disconnect the failing mouse cable from the computer. 5.

  • Page 45: Obtaining Device Drivers

    8. 7. To update your configuration, see Chapter 4, “Using the Setup Utility,” on page Note: In most areas of the world, Lenovo requires the return of the defective Customer Replaceable Unit (CRU). Information about this will come with the CRU or will come a few days after the CRU arrives.

  • Page 46: Integrated Cable Lock

    The cable lock also locks the buttons used to open the computer cover. This is the same type of lock used with many notebook computers. You can order a security cable directly from Lenovo by searching on Kensington at: http://www.lenovo.com/support Figure 31.
  • Page 47 To erase lost or forgotten passwords: 1. Open the computer cover. See “Opening the computer cover” on page 14. 2. Access the system board. See “Accessing the system board components and drives” on page 16. Note: You must remove the hard disk drive to gain access to the Clear CMOS/Recovery jumper.
  • Page 48 User Guide...

  • Page 49: Chapter 3. Recovery Information

    This section provides instructions on how to create recovery media on different operating systems. v To create recovery media on Windows 7, click Start → All Programs → Lenovo ThinkVantage Tools → Factory Recovery Disks. Then, follow the instructions on the screen.

  • Page 50: Using Recovery Media

    Using recovery media This section provides instructions on how to use recovery media on different operating systems. v To use recovery media on Windows 7 or Windows Vista, do the following: Attention: When you use recovery media to restore the computer to the factory default settings on Windows 7 or Windows Vista, all the files currently on the system drive or the hard disk drive will be deleted and replaced by the factory default settings.

  • Page 51: Performing A Backup Operation

    To perform a backup operation using the Rescue and Recovery program on Windows 7, do the following: 1. From the Windows desktop, click Start → All Programs → Lenovo ThinkVantage Tools → Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 52: Using The Rescue And Recovery Workspace

    Using the Rescue and Recovery workspace The Rescue and Recovery workspace resides in a protected, hidden area of your hard disk drive that operates independently from the Windows operating system. This enables you to perform recovery operations even if the Windows operating system cannot be started.

  • Page 53: Creating And Using Rescue Media

    This section provides instructions on how to create rescue media on different operating systems. v To create a rescue medium on Windows 7, do the following: 1. From the Windows desktop, click Start → All Programs → Lenovo ThinkVantage Tools → Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 54: Creating And Using A Recovery Repair Diskette

    1. Turn on the computer, and make sure that your computer has Internet access. 2. Follow the instructions on the Web site at: http://www.lenovo.com/think/support/site.wss/document.do?lndocid=MIGR-54483 3. After the recovery repair diskette is created, take out the diskette from the diskette drive and label it Recovery Repair Diskette. Then, store it in a safe place for future use.

  • Page 55: Installing Or Reinstalling Device Drivers

    Device drivers for factory-installed devices are located on the computer hard disk drive (usually drive C:) in the SWTOOLS\DRIVERS folder. The latest device drivers for factory-installed devices are also available at http://www.lenovo.com/ support. Other device drivers are on the software media that come with individual devices.

  • Page 56: Setting A Rescue Device In The Startup Sequence

    Setting a rescue device in the startup sequence Before you start the Rescue and Recovery program from an internal hard disk drive, a disc, a USB hard disk drive, or other external devices, you must first make sure that your rescue device is set as the first boot device in the startup device sequence in the Setup Utility program.

  • Page 57: Copyright Lenovo

    You do not have to set any passwords to use your computer. However, using passwords improves computing security. If you decide to set any passwords, read the following sections. © Copyright Lenovo 2009 Setup Utility program menu is not displayed until you type the correct password. For more information, see “Using passwords.”...

  • Page 58: Password Considerations

    Password considerations A password can be any combination of up to 64 alphabetic and numeric characters. For security reasons, it is recommended to use a strong password that cannot be easily compromised. To set a strong password, use the following guidelines: v Have at least eight characters in length v Contain at least one alphabetic character and one numeric character v Setup Utility program and hard disk drive passwords are not case sensitive...

  • Page 59: Enabling Or Disabling A Device

    Enabling or disabling a device This section provides information on how to enable or disable user access to the following devices: Serial ATA External SATA Port Legacy Diskette A (some models) To enable or disable a device, do the following: 1.

  • Page 60: Selecting Or Changing The Startup Device Sequence

    Selecting or changing the startup device sequence To view or permanently change the configured startup device sequence, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 49. 2. Select Startup → Startup Sequence. See the information displayed on the right side of the screen.

  • Page 61: Chapter 5. Updating System Programs

    Lenovo might make changes and enhancements to the POST and BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com. Instructions for using the POST/BIOS updates are available in a TXT file that is included with the update files. For most models, you can download either an update program to create a system-program-update (flash) disc or an update program that can be run from the operating system.

  • Page 62: Updating (Flashing) Bios From Your Operating System

    6. Follow the instructions on the screen to complete the update. Updating (flashing) BIOS from your operating system Note: Because Lenovo makes constant improvements to the Web site, the Web page contents are subject to change without notice, including the contents referenced in the following procedure.
  • Page 63 video, the series of beeps will end, and the system will automatically turn off. Remove the disc from the optical drive before the system completely turns off. 12. Repeat steps 2 through 5. 13. Move the Clear CMOS/Recovery jumper back to the standard position (pin 1 and pin 2).
  • Page 64 User Guide...

  • Page 65: Chapter 6. Troubleshooting And Diagnostics

    If you cannot correct the problem, have the computer serviced. Refer to the safety and warranty information that is provided with your computer for a list of service and support telephone numbers. © Copyright Lenovo 2009 electrical outlet. make sure that it is switched on.
  • Page 66 Symptom Action The keyboard does not work. Verify that: The computer does not respond v The computer is turned on. to the keyboard. v The monitor is turned on and the brightness and contrast controls are set v The keyboard is securely connected to the keyboard connector on the v No keys are stuck.

  • Page 67: Diagnostic Programs

    Lenovo troubleshooting center, update system drivers, and review system information. To run the Lenovo System Toolbox, click Start → All Programs → Lenovo Services → Lenovo System Toolbox. Follow the instructions on the screen. For additional information about running the diagnostic program, refer to the Lenovo System Toolbox help system.

  • Page 68: Pc-Doctor For Rescue And Recovery

    PC-Doctor for Rescue and Recovery The PC-Doctor for Rescue and Recovery diagnostic program is part of the Rescue and Recovery workspace on each Lenovo computer. Use the PC-Doctor for Rescue and Recovery if you are unable to start the Windows operating system.

  • Page 69: Cleaning The Mouse

    2. Make sure the computer is turned on and then insert the disc into the optical drive. The diagnostic program opens. Note: You can insert the disc into the optical drive when you are setting the 3. Follow the instructions on the screen to select the diagnostic test you want to run.
  • Page 70 To clean a non-optical mouse: Note: The following illustration might be slightly different from your mouse. 1 Retainer ring 2 Ball 3 Plastic rollers 4 Ball cage 1. Turn off your computer. 2. Disconnect the mouse cable from the computer. 3.

  • Page 71: Chapter 7. Getting Information, Help, And Service

    If the Adobe Reader has not been installed on your computer, a message will appear when you attempt to view the PDF file and you will be guided through the Adobe Reader installation. 2. The publications are available in other languages on the Lenovo Support Web site at: http://www.lenovo.com/support 3.

  • Page 72: Thinkvantage Productivity Center

    Lenovo Welcome The Lenovo Welcome program introduces you to some innovative built-in features of Lenovo and guides you through a few important setup tasks to help you make the most of your computer. Note: The Lenovo Welcome program is only available on computers that have an internal hard disk drive, a preinstalled Windows 7 or Windows Vista operating system, and preinstalled software programs from Lenovo.

  • Page 73: Lenovo Web Site (Http://Www.lenovo.com)

    Engineering Change management - There might be changes that are required after a product has been sold. Lenovo or your reseller will make selected Engineering Changes (ECs) that apply to your hardware available.

  • Page 74: Using Other Services

    You must retain your proof of purchase to obtain warranty service. For a list of the Lenovo Support phone numbers for your country or region, go to http://www.lenovo.com/support and click Support phone list or refer to the ThinkCentre Safety and Warranty Guide that is provided with your computer.

  • Page 75: Purchasing Additional Services

    Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at: http://www.lenovo.com Chapter 7. Getting information, help, and service...
  • Page 76 User Guide...

  • Page 77: Appendix. Notices

    Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

  • Page 78: Television Output Notice

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. European conformance CE mark Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo Rescue and Recovery The Lenovo logo...
  • Page 79 65 diagnostics, troubleshooting 57 diskette, creating and using a recovery repair 46 DisplayPort connector 9 documentation, using 65 drivers, device 37 © Copyright Lenovo 2009 drives bays 21 internal 20 specifications 21 environment, operating 4 eSATA connector 9...
  • Page 80 9 keyboard, replacing 35 Lenovo System Toolbox 59 Lenovo ThinkVantage Toolbox 59 Lenovo ThinkVantage Tools 63 Lenovo Web site 65 Lenovo Welcome 64 locating components 10 media, creating and using recovery media 41 media, creating and using rescue 45...
  • Page 81 46 rescue media, creating and 45 Setup Utility 49 VGA monitor connector 9 video subsystem 1 viewing and changing settings 49 warranty information 64 Web site, Lenovo 65 workspace, backup and recovery 44 Index...
