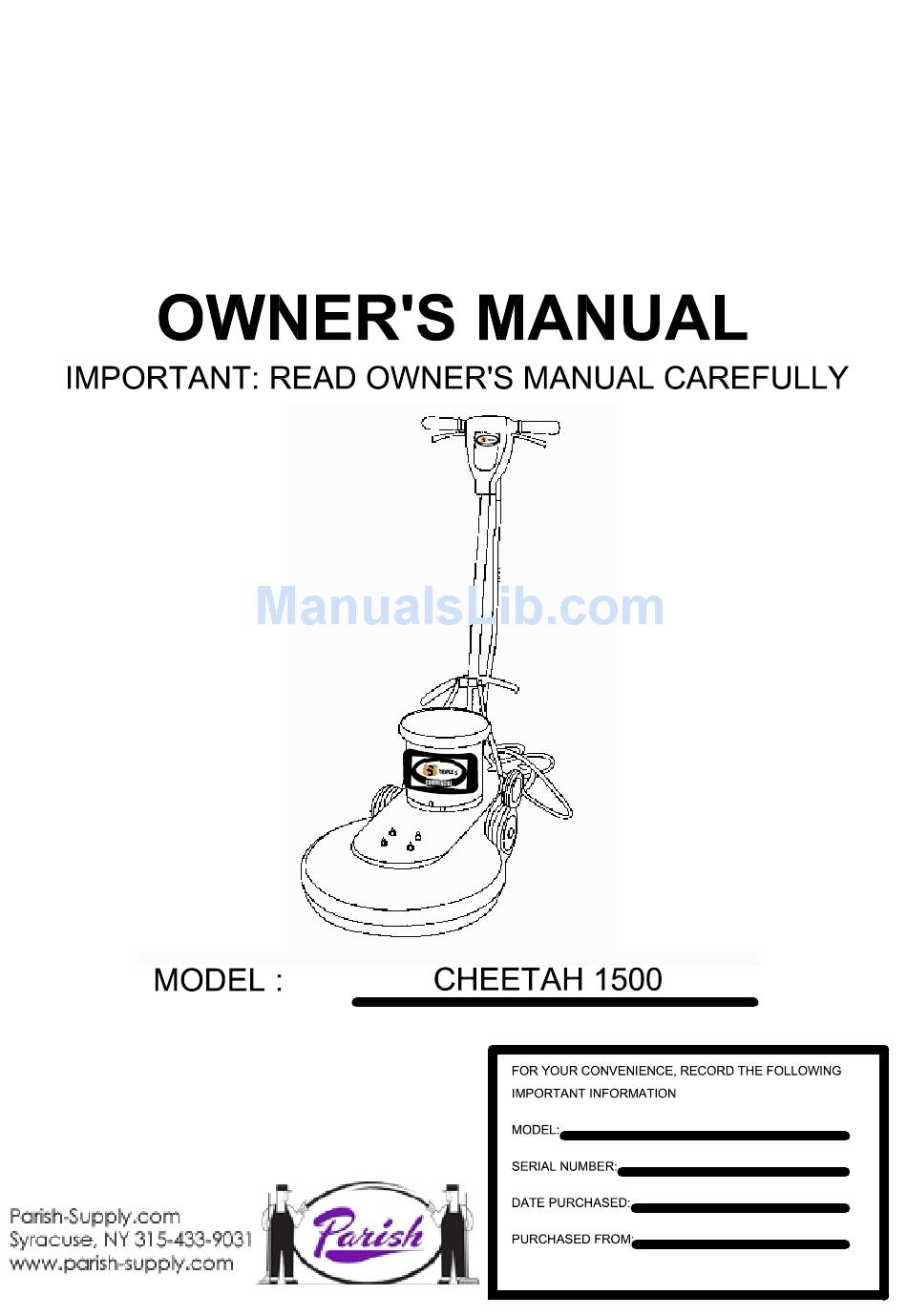

Parish CHEETAH 1500 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHEETAH 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Parish CHEETAH 1500

Summary of Contents for Parish CHEETAH 1500

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Precautions Machine Operation Machine Maintenance & Storage Handle Release Assembly Instructions Parts Lists 6-10 Wiring Diagram Warranty Policy...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS !!! This machine must be grounded! Grounding 2) Before operating machine: provides the path of least resistance for - Make sure all safety devices are in place electrical current. To reduce the risk of electrical and operate properly. shock should the machine malfunction, the machine has a special grounding plug.

  • Page 4: Machine Operation

    Operation of High Speed Floor Machine 9. To stop the machine at any time, simply READ OPERATORS MANUAL release the operating trigger(s) and the THOROUGHLY PRIOR TO OPERATING machine will stop automatically. OR SERVICING THIS MACHINE. GENERAL USE MAINTENANCE 1. Remove any obstructions or other obstacles To keep the machine performing well for in the area which is to be cleaned.

  • Page 5: Handle Release Assembly Instructions

    Handle Release Assembly Instructions STEP 2 STEP 1 1) Remove handle clamp 1) Remove nut and spacer from handle blocks with hex head bracket assembly. 2) Push the two handle brackets forwa- 2) Place handle assembly into rd so they lean against the motor. handle clamp blocks 3) Re-attach the blocks to the base with...

  • Page 6: Parts Lists

    PARTS LIST HANDLE GROUP...
  • Page 7 HANDLE GROUP PART DESCRIPTION NUMBER REQ'D VF30016 HANDLE RELEASE VF30017 SCREW PIN, HANDLE RELEASE VF30018 WASHER, PLAIN,HANDLE RELEASE VF30015 BOLT, HANDLE RELEASE VF13503 NUT, M8, NYLON INSERT VF30014 COVER, HOOK, CABLE VF45125 CORD, HANDLE, 14/3C VF50120A GROMMET VF14053 HEX SOCKET SCREW, M6x25 VF30011BD CLAMP BLOCK, HANDLE VF13504...
  • Page 8 PARTS LIST BASE GROUP...
  • Page 9 BASE GROUP PART DESCRIPTION NUMBER REQ'D ZD41000 MOTOR,120V VF99926-2 CARBON BRUSH VF44204 RECTIFIER ZD41306 MOTOR COVER VF53110 LABEL VF41079TR LABEL, LOGO ZD40205 KEY, MOTOR VF53112 BRACKET, LEFT VF13514 WASHER, PLAIN, φ8xφ16 VF53107 HEX SCREW, BRACKET VF52011A AXLE, TRANSPORT VF13520 RETAINING RING, EXTERNAL, φ12 VF50119 WAVING WASHER, φ12 VF48202...
  • Page 10 BASE GROUP PART DESCRIPTION NUMBER REQ'D VF14075 BEARING, 6004 2RS VF52006 SPACER, BEARING VF14003 RETAINING RING, INTERNAL, φ42 VF52001 KEY, DRIVEN SHAFT VF52005 DRIVEN SHAFT VF14007 HEX SCREW, M10x32 VF52007 MOUNTING PLATE, DRIVEN SHAFT AS321203TR BUMPER, FRAME AS321201TP FRAME VF14059 CAP NUT, M10 VF14004 RETAINING RING, EXTERNAL, φ19...

  • Page 11: Wiring Diagram

    Wiring Diagram Switch Housing Circuit Switch Breaker Black White Green STO 14/3C Handle Motor Power Cord Cord Supply Cord -11-...

  • Page 12: Warranty Policy

    WARRANTY POLICY The warranty terms outlined below are in lieu of any other warranties, either stated or implied, including any implied warranty of merchantability, fitness for a particular purpose or otherwise. Under no circumstances will seller be liable for any loss, damage, expense or consequential damages arising in connection with the use or inability to use this product.
