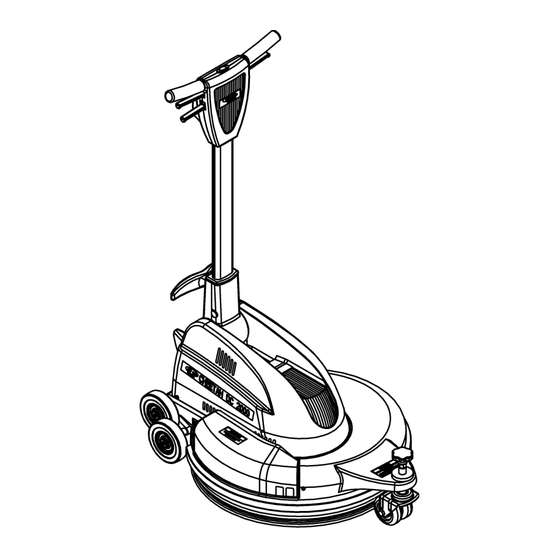

- Page 1 OWNER'S MANUAL IMPORTANT: READ OWNER'S MANUAL CAREFULLY MODEL : CHEETAH DC2000 FOR YOUR CONVENIENCE, RECORD THE FOLLOWING IMPORTANT INFORMATION MODEL: _________ _ SERIAL NUMBER:-------- DATE PURCHASED: _______ _ PURCHASED FROM: _______ _...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precautions Machine Operation Machine Maintenance & Storage Parts Lists 6-11 Wiring Diagram Warranty Policy... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS !!! This machine must be grounded! Grounding 2] Before operating machine: provides the path of least resistance for - Make sure all safety devices are in place electrical current. To reduce the risk of electrical and operate properly. shock should the machine malfunction, the machine has a special grounding plug. -
Page 4: Machine Operation
Operation of High Speed Floor Machine * THIS IS A SPECIALIZED MACHINE WHICH 8] The handle height may be adjusted by REQUIRES THE OPERATOR TO UTILIZE A lifting up on the handle release lever, TRIPLE S APPROVED PAD, AND MUST BE located on the right side of the switch ADJUSTED PROPERLY TO ENSURE THE housing. -
Page 5: Machine Maintenance & Storage
adjustment knob to the right to reduce pad 6] Check machine for loose or missing nuts pressure. YELLOW LIGHT(S): If one or and bolts, and replace as necessary. both yellow lights is illuminated, stop the 7] If the machine is used in a dusty machine and turn the pad pressure environment, you may remove the motor adjustment knob to the left to increase the... -
Page 6: Parts Lists
PARTS LIST BASE GROUP... -
Page 7: Parts Lists
PARTS LIST PART DESCRIPTION NUMBER REQ'D VF52114 PLASTIC STAND, RIGHT VF52115 PLASTIC STAND, LEFT VF54048 CONNECTOR, MOTOR COVER VV20509 SCREW, M5x10, PH VF54017TR LABEL VF54047TR COVER, MOTOR VF13503 NUT, NYLON INSERT, M8 VF13524 WASHER, PLAIN VF54020 RIGHT ARM VF54019 LEFT ARM GT13016 SCREW, M8x60, HEX SOCKET VA13480... -
Page 8: Parts List
PARTS LIST PART DESCRIPTION NUMBER REQ'D VF54027 LOCK WASHER, BIG MOUTH VF99003A BIG MOUTH VF54006 FLEXIBLE SKIRT VF54011 CASTER, DUAL SWIVEL VF54028 SCREW BUSHING, HOUSING VF54001TR HOUSING VF54025 ADJUSTMENT DECAL VF54036 HOOK, COVER, DUST BAG VF50108 VF14081 NUT, M12 VF50103A ADJUSTING KNOB, CASTER VF54021 SPACER... - Page 9 PARTS LIST HANDLE GROUP...
-
Page 10: Housing
PARTS LIST PART DESCRIPTION NUMBER REQ'D VF47009 FRONT COVER, GEAR SEAT VF54037 GEAR SEAT VF47028 GEAR & LEVELING INSERT KIT GV40227 WASHER, NYLON GV40228 "O" RING, GEAR SEAT VF50120A GROMMET VF47015 REAR COVER, GEAR SEAT VF14080 SELF-TAPPING SCREW, ST4x25 VF14000 SELF-TAPPING SCREW, ST4x35 VF47046 SEAL RING... -
Page 11: Sss" Logo
PARTS LIST PART DESCRIPTION NUMBER REQ'D GV40218 SPRING, SAFETY BLOCK VF99010C CIRCUIT BREAKER, 17A VF13527 EXTERNAL TOOTH, WASHER, φ4 VF13526 SCREW, HOLDING, M4x30 VF46704TR OPERATING TRIGGER, RIGHT VF48306 PIN, LEVER GT13014 NUT, M4, NYLON INSERT VF46707TR TRIGGER, HANDLE ADJUSTMENT GT13017 BIG WASHER, PLAIN, φ4xφ16 VF46706TR HANDLE GRIP... -
Page 12: Wiring Diagram
Wiring Diagram -12-... -
Page 13: Warranty Policy
WARRANTY POLICY The warranty terms outlined below are in lieu of any other warranties, either stated or implied, including any implied warranty of merchantability, fitness for a particular purpose or otherwise. Under no circumstances will seller be liable for any loss, damage, expense or consequential damages arising in connection with the use or inability to use this product.
