Summary of Contents for CFR Altra Pro 400

  • Page 2: Table Of Contents

    Altra 400/Heat Altra Pro 400 Tank Assembly................16 Altra Pro 400 Pump/Motor Assembly ..............18 Altra Pro 400 Heat Altra Pro 400 Heat Base Assembly ..............20 Altra Pro 400 Heat Final Assembly ..............22 Altra Pro Heat Back Panel Assembly ..............24 Altra Pro 1000 Altra Pro 1000 Base Assembly ...............26...
  • Page 3: Unpacking Your New Altra Series Cleaning Station

    ALTRA Series Operator Manual Congratulations on your purchase of a CFR Altra Series Cleaning Station. Read this entire manual before operating or servicing the Altra. Unpacking your new Altra Series Cleaning Station The Altra Series Cleaning Station was thoroughly inspected, tested, and packaged to deliver the equipment in good operating condition.
  • Page 4: Introduction

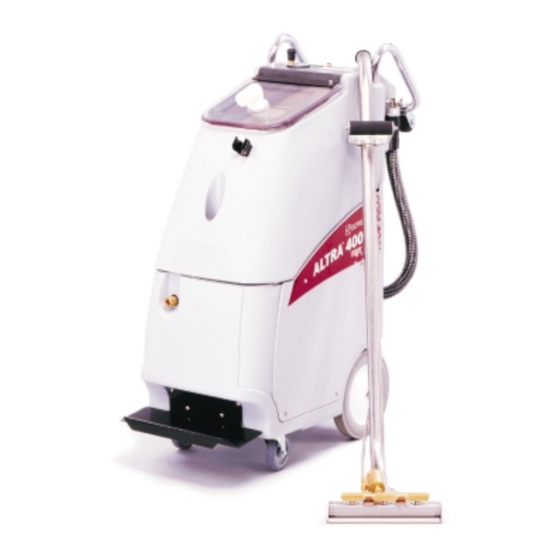

    Altra Pro 400 The Altra Pro 400 is designed for carpet, upholstery and hard surface cleaning and restoration. Altra Pro Heat 400 The Altra Pro Heat 400 with its built-in 2400 watt heater, is one of the most powerful portable cleaning systems on the market.
  • Page 5: Important Safety Instructions

    15. Do not expose to rain. Store indoors. 16. If unit is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a local CFR service center.
  • Page 6: Grounding Instructions

    SET UP INSTRUCTION 1. Fill out Warranty Card and return it to CFR. Filter Installation Inlet Basket w/prefilter Install inlet basket with prefilter in it into the tank opening. Dump and clean debris each time water is added and at the end of each cleaning job.
  • Page 7: Operating Instructions

    11. Clean surface with tool attached to hose assembly. CAUTION: The hose trigger valve will get hot during use when the heater is turned on for Altra Pro 400 heat. 12. During the cleaning process, the fluid level will be reduced and the lower level float switch will shut off the pump.
  • Page 8 ALTRA Series Operator Manual TOOL USAGE Hose Assembly Attach hose assembly to machine by attaching vacuum hose to the tank lid and the fluid hose to the front of the machine. If the fluid hose is difficult to insert, the system pump pressure can be relieved by pushing the prime switch or dialing down the pressure with the adjusting knob.
  • Page 9: Maintenance

    Remove the filter and rinse with water. Remove any debris from the strainer. Keep o-ring and threads of the plug lubricated. CFR DeFoam is a good lubricant or use a non-petroleum based lubricant. This will ensure a tighter seal.
  • Page 10: Periodic Maintenance

    A convenient method is to insert the nozzle into a garden hose ball valve, tighten the ball valve to a faucet, and turn on the water. (CFR has ball valves available, part #7AX020). Inspect nozzle and repeat cleaning procedure, if necessary.
  • Page 11: Specifications Altra Pro 400

    ALTRA Series Operator Manual SPECIFICATIONS — ALTRA PRO 400 Power Cord Two detachable 35 (10.7 meter) Cords, 12 Ga., 3 Wire, Molded End Plug Voltage 115 Volts AC, 60 HZ Vacuum Motor — 12.75 Amps Pump Motor — 2.57 Amps...
  • Page 12 ALTRA Series Operator Manual SPECIFICATIONS — ALTRA PRO 400 Heat Power Cord Two detachable 35 (10.7 meter) Cords, 12 Ga., 3 Wire, Molded End Plug Voltage 115 Volts AC, 60 HZ Vacuum Motor — 12.75 Amps Pump Motor — 2.57 Amps Heater —...
  • Page 13 ALTRA Series Operator Manual SPECIFICATIONS — ALTRA Pro 1000 / Pro 1000 220/240 Volt Power Cord Two detachable 35 (10.7 meter) Cords, 12 Ga., 3 Wire, Molded End Plug Voltage 115 Volts AC, 60 HZ /220/240 Volts, AC, 50 HZ Vacuum Motor —...
  • Page 14: Trouble Shooting Guide

    ALTRA Series Operator Manual TROUBLE SHOOTING GUIDE • Vacuum or pump will not run Check that electrical cord is firmly seated in wall outlet. • Check and reset building circuit breaker if tripped. • Check GFCI on back of machine and reset if tripped. NOTE: GFCI and/or circuit breaker may trip if vacuum motor is flooded.
  • Page 15 Check CFR chemical usage instructions for proper application. • Multiple cleanings may be needed to clean deeply imbedded dirt that is pulled to the surface by CFR s deep cleaning technology. Offset cleaning passes by 6 inches. No fluid from cleaning head •...
  • Page 16: Warranty

    CFR, a Tacony company, warrants new products manufactured and sold under the name CFR to be free from defects in materials and workmanship under normal use and service. CFR s obligation under this warranty is limited to repairing or replacing, at our...
  • Page 17 ALTRA Series Operator Manual For more information about top quality CFR products please see your local CFR distributor or visit us at wwwcfrcorp.com Thank you for purchasing CFR Environmental Cleaning Systems. CFR Environmental Cleaning Systems 3101 Wichita Court Fort Worth, Texas 76140 817.551.0700...
