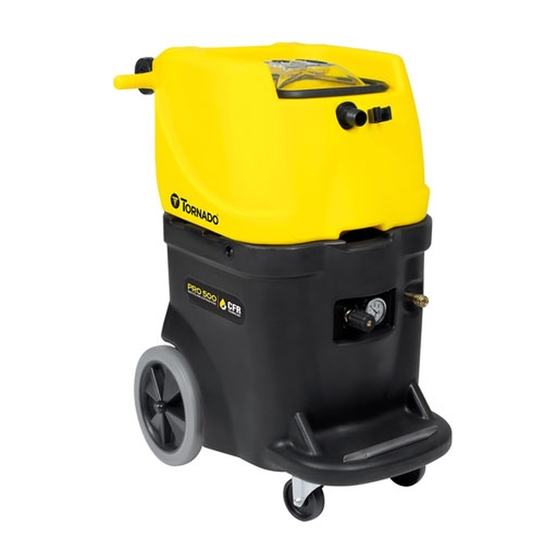

Perfect Heat, Pro 500
and Pro 750 Series
INSTRUCTION MANUAL
Read all instructions before using this machine.
IMPORTANT SAFETY INSTRUCTIONS
This manual is to ensure that the CFR Pro Series is operated correctly.
All operators must read, understand and practice the following safety instructions.
72671A 01/2005
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CFR Perfect Heat Pro 500 Series
Summary of Contents for CFR Perfect Heat Pro 500 Series
-

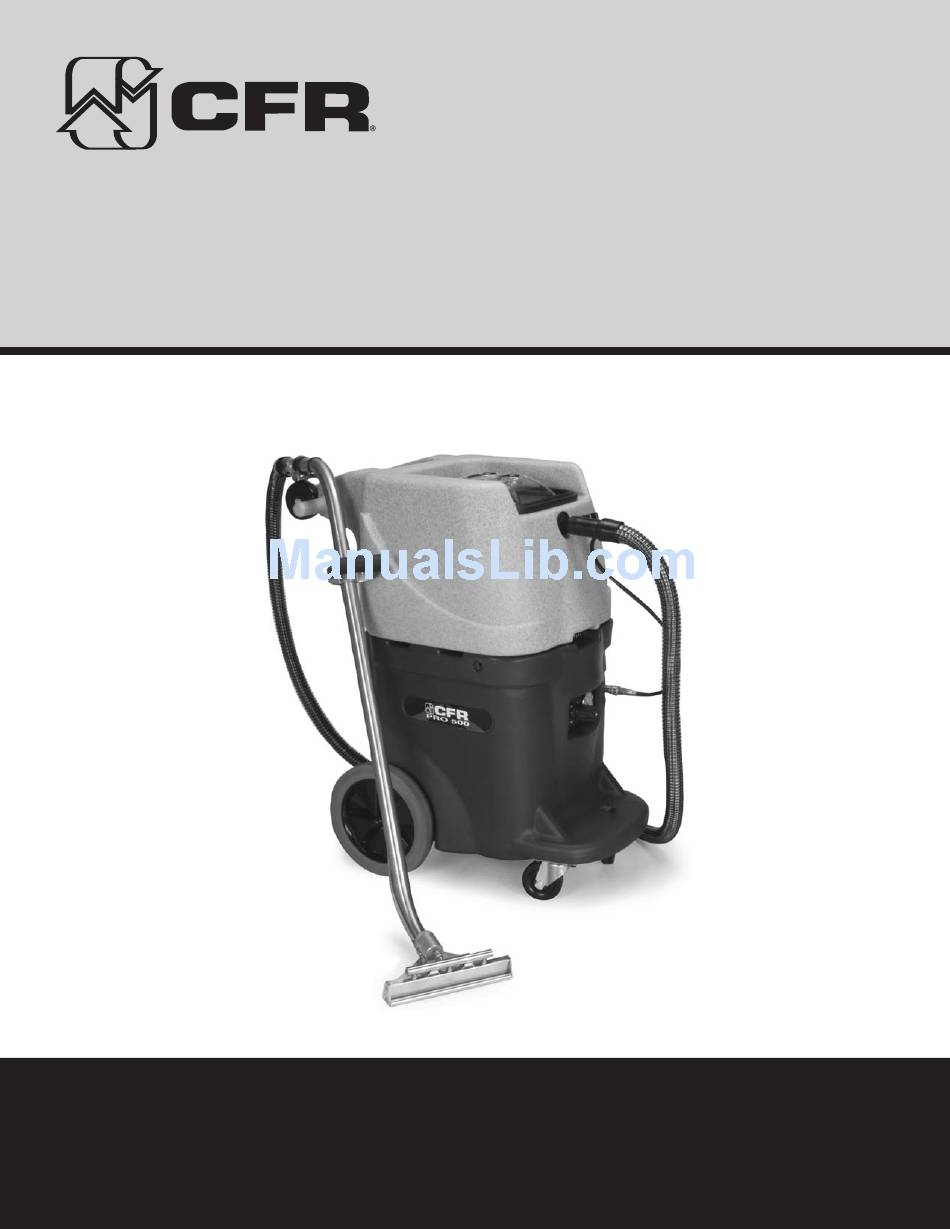

Page 1: Instruction Manual
Pro 750 Series INSTRUCTION MANUAL Read all instructions before using this machine. IMPORTANT SAFETY INSTRUCTIONS This manual is to ensure that the CFR Pro Series is operated correctly. All operators must read, understand and practice the following safety instructions. 72671A 01/2005... -
Page 2: Table Of Contents
Shipping damage is not warranted. INTRODUCTION Congratulations on your purchase of a CFR Pro 500/750. CAUTION Read this entire manual before operating or servicing the . Read All Instructions, Warnings and Cautions Please complete and return the enclosed warranty card. -
Page 3: Operating Instructions
16. If unit is not working as it should, has been dropped, is 120 to 130 degrees F. damaged, left outdoors, or dropped into water, take it 4. Add CFR in-tank cleaner per chemical label use to a local CFR service center. instructions. In addition, pre-spraying is often desirable... - Page 4 TANK MAY CAUSE VACUUM MOTOR FLOODING AND 2. Turn on electrical heater, switch is located on panel. MACHINE DAMAGE. Pour one to two ounces of CFR 3. Pre-heat machine for 5-10 minutes before use. Defoam directly into the tank or into the vacuum hose while the vacuum is running.
-
Page 5: Maintenance
Remove any debris from the strainer. Keep o-ring and 6. Check pump performance occasionally against built-in threads of the plug lubricated. CFR DeFoam is a good pressure gauge. Pump running pressure on the Pro lubricant or use a non-petroleum based lubricant. - Page 6 (ampere) loads. If either breaker trips, the pump motor or vacuum (ampere) loads. If either breaker trips, the pump motor or vacuum motor is overloaded. motor is overloaded. CFR PRO SERIES...
- Page 7 Water dripping from bottom of machine exhaust. Check machine for excess foaming. Add CFR Defoam to tool hose and tank. Open machine top cover and let vacuum run for 10 minutes to dry out vacuum motor, then close lid and resume cleaning.
- Page 8 Base Assembly CFR PRO SERIES...
- Page 9 Connector, Double thread, female X9014 Hinge 72726A Valve, 3-way 72020A Screw, #12 x 1”, Self tap, PHMS, Zinc SW158 1 /4” Cable Clamp PF1750 Heater Unit, 1750 Watts 7BF030 Nut, 10-24, Nylon Insert Lock, 18-8 SS PF1750-2 Heater unit, 220V CFR PRO SERIES...
- Page 10 Tank Assembly CFR PRO SERIES...
- Page 11 Hose Clamp, ?” SS 72659A Decal, Water Level Gauge 70079C Hose, ? Wire Reinforced 42” 72588A Heat Shrink Tubing, Clear PVC, PC25+ ?” to ?” Male/Male Barb 5/8” Exp. ID, 7.5”L1 7AF003 Plug, Counter Hex ?” 72660A Rope 26” CFR PRO SERIES...
-
Page 12: Warranty
Replacement parts that have become defec- tive through wear or abuse are not included in this warranty. CFR will pay service labor to the distributor or authorized service repair center per the warranty flat rate schedule. Service labor will be paid for two years on all warranted poly- ethylene housings, aluminum frames and chassis, and one year on all other warranted components.
