AD-100
DAB/FM RADIO TUNER
OWNERS MANUAL
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Adastra AD-100

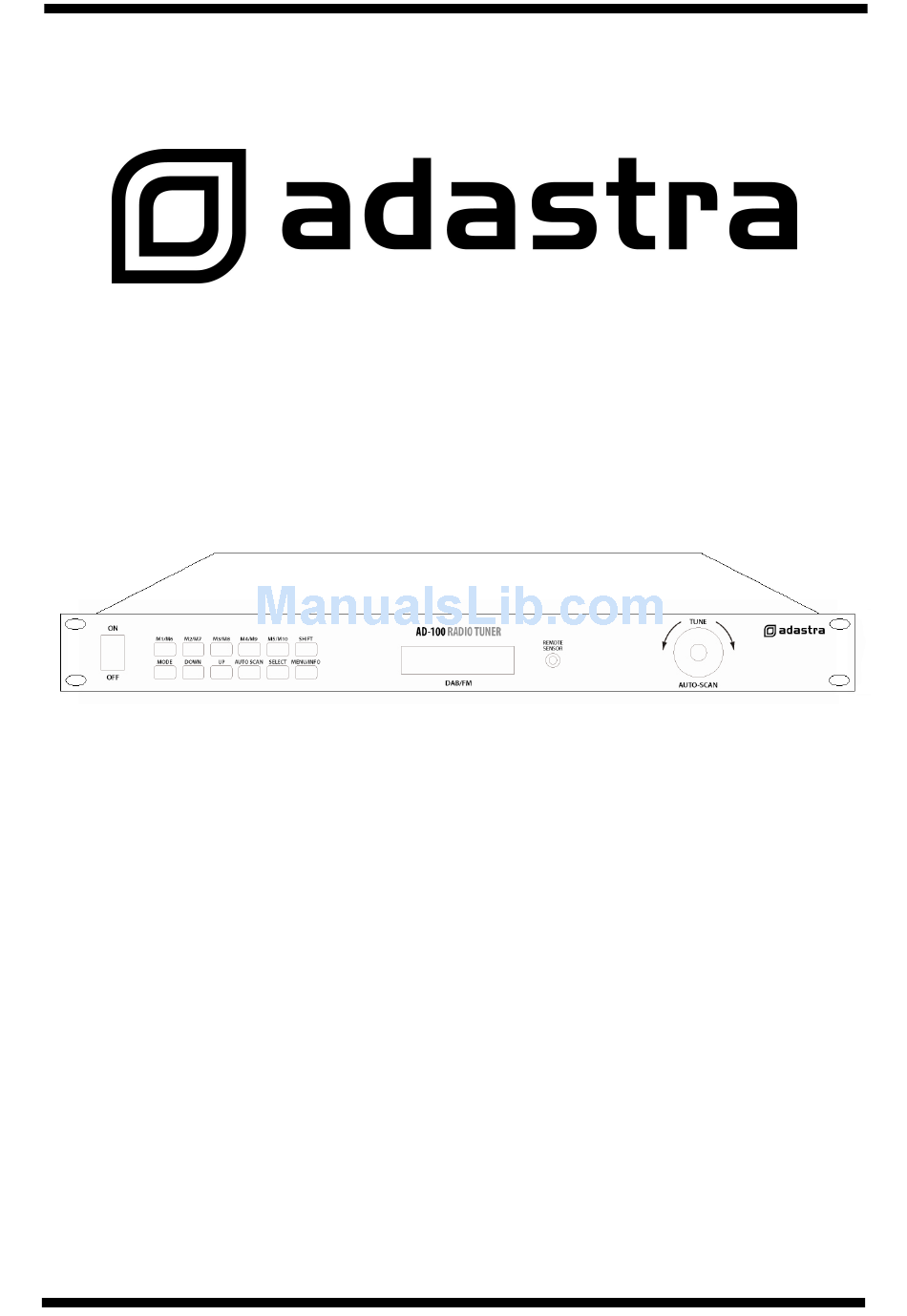

  • Page 1 AD-100 DAB/FM RADIO TUNER OWNERS MANUAL Version 1.0...
  • Page 2: Safety Information

    Safety information Please read these instructions before operating. Keep these instructions for future reference. Heed all warnings. Follow all instructions. Do not use this item near moisture. Clean only with dry cloth. Do not block any of the ventilation openings. Do not install near any heat sources such as radiators, stoves or other items (including amplifiers) that produce heat.
  • Page 3: Main Features

    ADASTRA AD-100 Main Features: DAB & FM Tuner Auto tune Radio station display RSD 9 Preset memory IR remote control 1U 19” rack mountable Supplied with antenna Accessories 1 x UK power cable 1 x EU power cable 1 x Remote control...
  • Page 4 General Functions and Controls POWER SWITCH - This switch is used to control the unit's main power. PRESET MEMORY 1-10 – Press to select the pre set radio stations 1-5 or to access the secondary memory 6-10 press shift followed by the marked number. To save a preset station to a memory button press and hold the number you want to save to for 5 seconds and the unit will auto store.
  • Page 5: Remote Control

    Remote Control: Please refer to the previous section to identify the functions of each button...
  • Page 6 Specification: GENERAL SECTION Digital processing FM tuner & DAB+ 10 preset memories for FM tuner Input/output Input: FM 75 ohm unbalanced antenna terminals. Output: RCA audio output Power supply: 230V AC Power consumption: 50VA Weight: 3.35kg Dimension: 482mm * 44mm * 185mm Electrical performance specifications: 1-1.
  • Page 7 FOR MORE INFORMATION ON ADASTRA PRODUCTS VISIT WWW.ADASTRA-PA.CO.UK...
