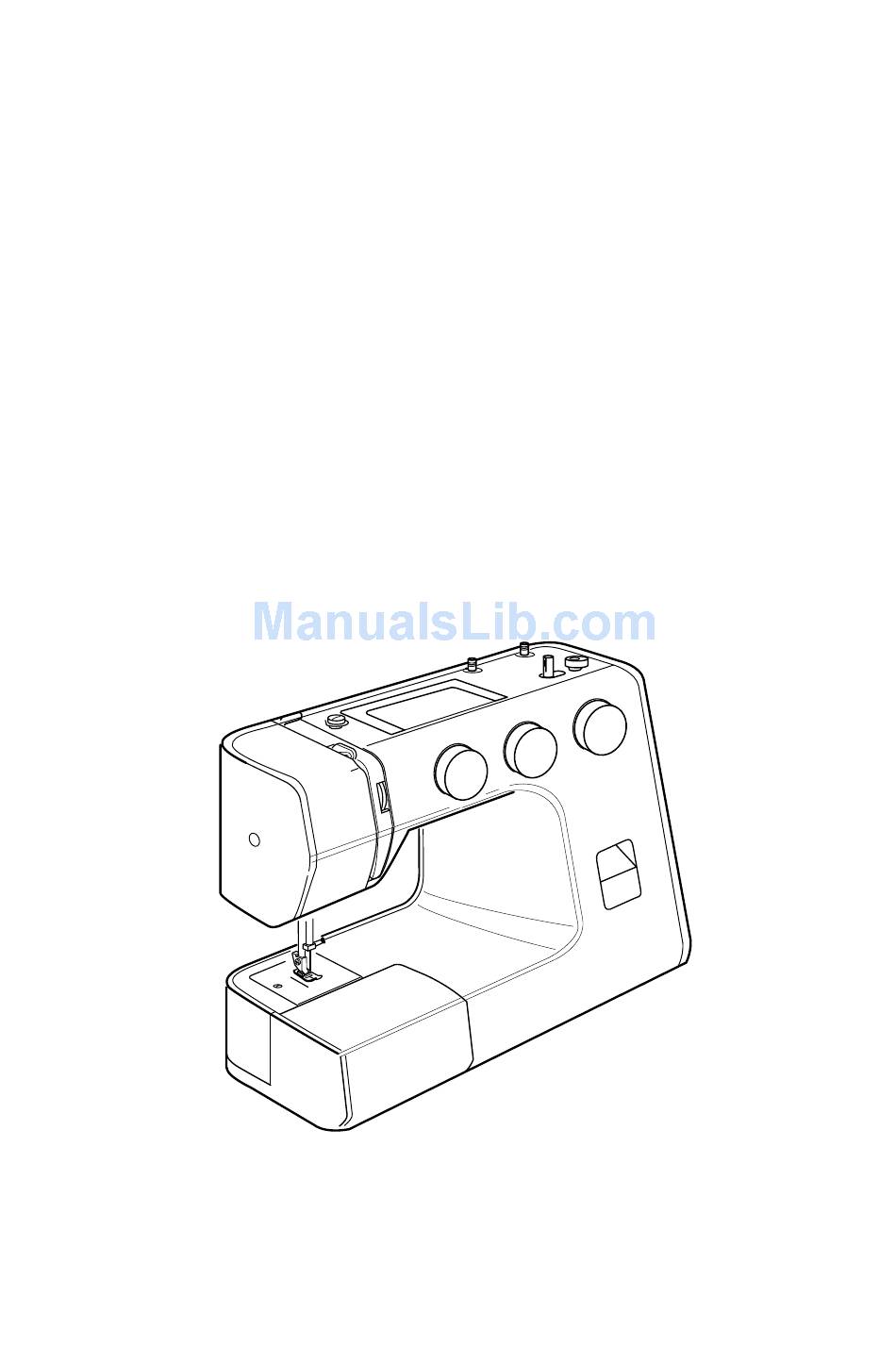

  • Page 1 Instruction book...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1. NAMES OF PARTS SECTION 4. DECORATIVE STITCHES Names of Parts ........... 2 Shell Tuck ..........25 Extension Table ........... 3 Smocking ..........26 Standard Accessories ......... 3 Applique ............ 27 Carrying Handle .......... 3 Box Stitch (3 dial model only) ....27 Decorative Stitch Patterns ......

  • Page 4: Section 1. Names Of Parts Names Of Parts

    SECTION 1. NAMES OF PARTS Names of Parts q Stitch pattern selector dial w Stitch length dial e Stitch width dial (3 dial model only) r Reverse stitch control t Bobbin winder stopper y Bobbin winder spindle u Spool pins i Stitch chart panel o Bobbin winding tension disc !0 Thread guide...

  • Page 5: Extension Table

    Extension Table • Detaching the table Pull the table away from the machine, as illustrated, for “free-arm” sewing of cuffs and sleeves. The extension table can be used as accessory box. • Attaching the table Push the extension table until it snaps into the machine.

  • Page 6: Section 2. Getting Ready To Sew Connecting Machine To Power Supply

    SECTION 2. GETTING READY TO SEW Connecting Machine to Power Supply CAUTION: Before connecting the power cord, make sure the voltage and frequency shown on the machine conform to your electrical power. 1. Turn off the power switch q. 2. Insert the machine plug w into the machine socket e.

  • Page 7: Setting Spool Pins

    Setting Spool Pins The spool pins are used for holding the spools of thread when feeding the thread to the machine. To use, pull up the spool pins. Push down for storage. q Upper thread w Hole e Tangle NOTE: When using thread which has tendency to tangle around a spool pin e, thread through the hole w of spool pin as shown.

  • Page 8: Changing Needles

    Changing Needles CAUTION: When changing needles, turn OFF the power switch. Raise the needle by turning the handwheel toward you and lower the presser foot. z Loosen the needle clamp screw by turning it counterclockwise. Remove the needle from the clamp. x Insert the new needle into the clamp with the flat side away from you.

  • Page 9: Bobbin Winding

    Bobbin Winding • Removing bobbin case Remove the extension table from the machine by pulling it to the left. Open the shuttle cover q by pushing down the embossed part on the cover. Raise the needle to its highest position by rotating the handwheel toward you.
  • Page 10 Bobbin winding (continued) b Depress the foot control again. When the bobbin is fully wound, it stops automatically. Return the bobbin winder to its original position by moving the spindle to the left, and cut the thread. • Inserting bobbin z Place a bobbin in the bobbin case, making sure the thread feeds clockwise from the bobbin.

  • Page 11: Threading The Machine

    Threading the Machine • Threading the machine * Raise the thread take-up lever to its highest position by turning the handwheel counterclockwise. * Raise the presser foot lifter. * Place a spool on the spool pin, with thread coming off as shown. z Draw the end of thread around the upper thread guide.
  • Page 12 • Drawing up bobbin thread z Raise the presser foot. Hold the needle thread lightly with your left hand. x Rotate the handwheel counterclockwise, toward you, for one complete turn. Bring the bobbin thread up by pulling the needle thread up. c Pull both threads 4˝...

  • Page 13: Balancing Needle Thread Tension

    Balancing Needle Thread Tension z Correct tension The thread tension is adjusted depending on the sewing materials, layers of fabric and sewing method. The ideal straight stitch has threads locked between two layers of fabric as illustrated. For an ideal zigzag stitch, the bobbin thread does not show on the right side (top side) of the fabric, and the needle thread shows slightly on the wrong side...

  • Page 14: Stitch Pattern Selector

    Stitch Pattern Selector Raise the needle above the fabric. Turn the dial to select the desired pattern. q Setting mark w Stitch selector NOTE: To avoid needle or fabric damage, make sure the needle is up and out of the fabric 3 dial model 2 dial model while selecting a stitch.

  • Page 15: Adjusting Stretch Stitch

    Adjusting Stretch Stitch Set the stitch length control at "S.S." to sew the stretch stitch pattern sewing. If the stretch stitch pattern is uneven, turn the S.S. stitch length dial in the direction of "–" to compress it, or "+" to expand it. Stitch Width Dial (3 dial model only) Turn the stitch width dial to set the desired...

  • Page 16: Section 3. Basic Sewing Straight Stitch

    SECTION 3. BASIC SEWING Straight Stitch q Stitch pattern: 1 or 2 w Presser foot: Zigzag foot e Thread tension: 2 to 6 r Stitch length: 1.5 to 4 t Stitch width*: 0 or 5 NOTE: Stitch width is applicable to 3 dial model only.

  • Page 17: Variable Needle Position (3 Dial Model Only)

    Variable Needle Position (3 dial model only) When the straight stitch (pattern 1) is selected, you can move the needle between center and left needle position by turning the stitch width dial. Seam Guide Lines The numbers on the needle plate indicate the distance between the center needle position q and the guideline w.

  • Page 18: Basic Zigzag

    Basic Zigzag q Stitch pattern: w Presser foot: Zigzag foot e Thread tension: 2 to 5 r Stitch length: 0.5 to 4 t Stitch width*: 1 or 5 The zigzag stitch is one of the most common and versatile stitches. It can be a utility stitch for button sewing, buttonhole making, hemming, overcasting, mending and darning.

  • Page 19: Straight Stretch Stitch

    Straight Stretch Stitch q Stitch pattern: 1 or 2 w Presser foot: Zigzag foot e Thread tension: 2 to 6 r Stitch length: S.S. t Stitch width*: 0 or 5 The pattern is sewn with two stitches forward and one stitch backward, forming a seam that does not rip easily.

  • Page 20: Knit Stitch

    Knit Stitch q Stitch pattern: 6 (3 dial model) 7 (2 dial model) w Presser foot: Zigzag foot e Thread tension: 1 to 4 r Stitch length: S.S. t Stitch width*: This knit stitch is ideal for sewing swimwear and stretch velour because it provides the greatest amount of elasticity and strength.

  • Page 21: Buttonhole

    Buttonhole q Stitch pattern: (BH) w Presser foot: Sliding buttonhole foot e Thread tension: 1 to 5 r Stitch length: t Stitch width*: z Carefully mark buttonhole length on fabric. Place the fabric under the foot with the buttonhole marking running toward you. x Move the slider (A) toward you so that the top mark (C) on the slider meets the start mark (B).

  • Page 22: Corded Buttonhole

    Corded Buttonhole q Stitch pattern: (BH) w Presser foot: Sliding buttonhole foot e Thread tension: 1 to 5 r Stitch length: t Stitch width*: z With the buttonhole foot raised, hook the cord on the cord spur at the back of the buttonhole foot.

  • Page 23: Zipper Application

    Zipper Application q Stitch pattern: w Presser foot: Zipper foot e Thread tension: 3 to 6 r Stitch length: 1.5 to 4 t Stitch width*: Pin or baste zipper tape to fabric and place it under the foot. Smooth the threads toward the back and lower the foot.

  • Page 24: Pin Tucking

    Pin Tucking q Stitch pattern: w Presser foot: Blind hem foot e Thread tension: 3 to 6 r Stitch length: t Stitch width*: 0 or 5 Fold the fabric wrong sides together and lower the needle into the fabric 1/16˝ (0.1 to 0.2 cm) inside the folded edge.

  • Page 25: Free Hand Mending And Embroidery

    Free Hand Mending and Embroidery q Stitch pattern: 1 or 3 w Presser foot: None e Thread tension: 2 to 6 r Stitch length: t Stitch width*: Adjust as necessary y Darning plate • Mending Place the darning plate. Remove the foot holder and presser foot.

  • Page 26: Blind Hem Stitch

    Blind Hem Stitch q Stitch pattern: 5 (3 dial model) Stitch pattern: 5 or 6 (2 dial model) w Presser foot: Blind hem foot e Thread tension: 2 to 4 r Stitch length: 1 to 3 t Stitch width*: z Fold up the hem and fold it back to from a 1/4˝...

  • Page 27: Section 4. Decorative Stitches Shell Tuck

    SECTION 4. DECORATIVE STITCHES Shell Tuck q Stitch pattern: 6 (3 dial model) Stitch pattern: 7 (2 dial model) w Presser foot: Zigzag foot e Thread tension: 6 to 8 r Stitch length: 2 to 3 t Stitch width*: Use a lightweight fabric, such as tricot. Fold the fabric and stitch on the bias q.

  • Page 28: Smocking

    Smocking q Stitch pattern: 1 and 4 w Presser foot: Zigzag foot e Thread tension: 1 to 4 r Stitch length: S.S. t Stitch width*: Choose a soft and lightweight fabric such as batiste, gingham or challis. Cut the fabric three times wider than the project width.

  • Page 29: Applique

    Applique q Stitch pattern: w Presser foot: Zigzag foot e Thread tension: 1 to 4 r Stitch length: 0.5 to 1 t Stitch width*: 3 to 5 Baste applique pieces on the fabric, or fuse the applique pieces with an iron-on fabric joiner.

  • Page 30: Decorative Stitch Patterns

    Decorative Stitch Patterns q Stitch pattern: 8 to 12 (3 dial model) Stitch pattern: 8 to 10 (2 dial model) w Presser foot: Zigzag foot e Thread tension: 1 to 4 r Stitch length: 0.5 to 1 t Stitch width*: For a delicate appearance on fabric such as chiffon, use a single layer with a tear-away backing, if necessary.

  • Page 31: Section 5. Care Of Your Machine Cleaning The Bobbin Case And The Shuttle Race

    SECTION 5. CARE OF YOUR MACHINE Cleaning the Bobbin Case and the Shuttle Race CAUTION: Turn off the power switch and unplug the machine before dismantling the sewing machine. • To dismantle shuttle race unit: Raise the needle to its highest position and open the shuttle cover.

  • Page 32: Sewing Light

    Sewing Light The sewing light is located behind the face plate. To change the bulb, take the face plate off the sewing machine by removing the cap and the setscrew. Unplug the power supply before changing the bulb. Do not dismantle the machine other than explained in this manual.

  • Page 33: Troubleshooting

    Troubleshooting Condition Cause Reference 1. The needle thread is not threaded properly. The needle thread Page 9 2. The needle thread tension is too tight. breaks. Page 11 3. The needle is bent or blunt. Page 6 4. The needle is incorrectly inserted. Page 6 5.
  • Page 35 Printed in Thailand 310-800-XXX(ENG)
