Removing and replacing a FRU

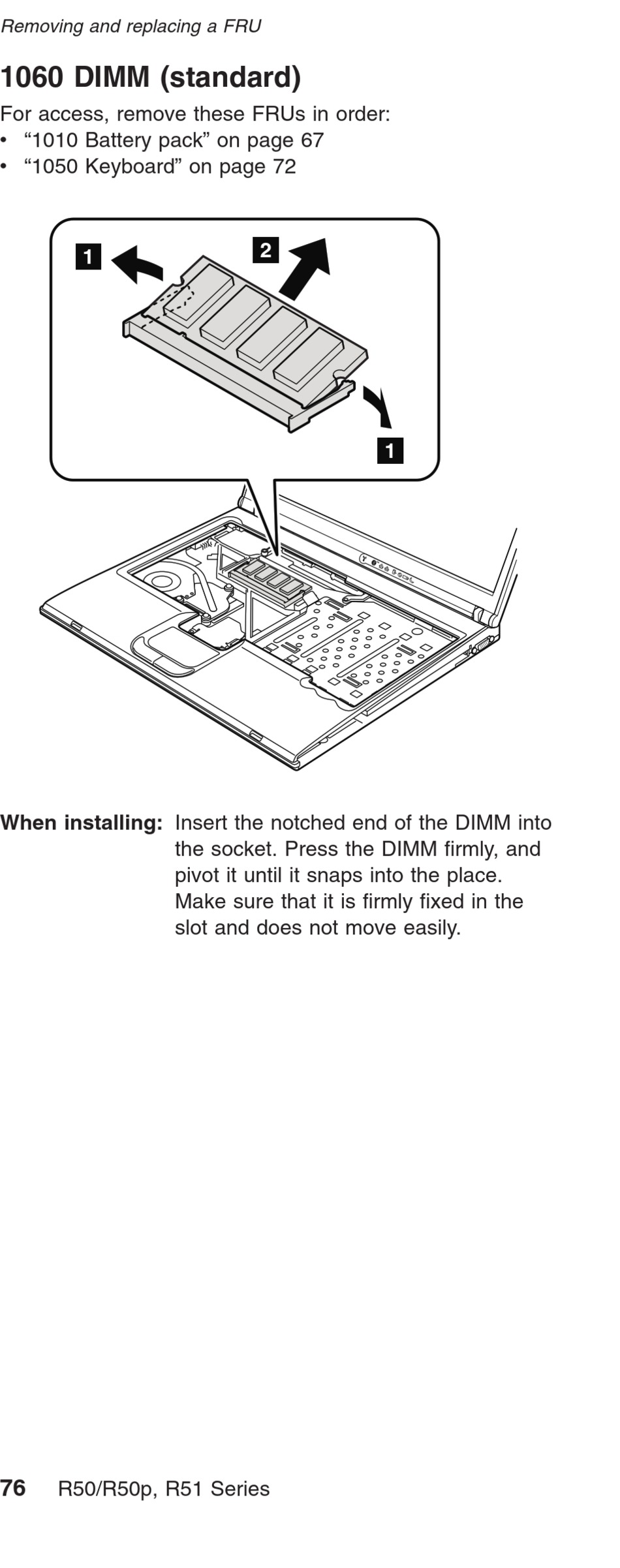

1060 DIMM (standard)

For access, remove these FRUs in order:
v "1010 Battery pack" on page 67
v "1050 Keyboard" on page 72
1
When installing: Insert the notched end of the DIMM into
76
R50/R50p, R51 Series
2
the socket. Press the DIMM firmly, and
pivot it until it snaps into the place.
Make sure that it is firmly fixed in the
slot and does not move easily.
1
