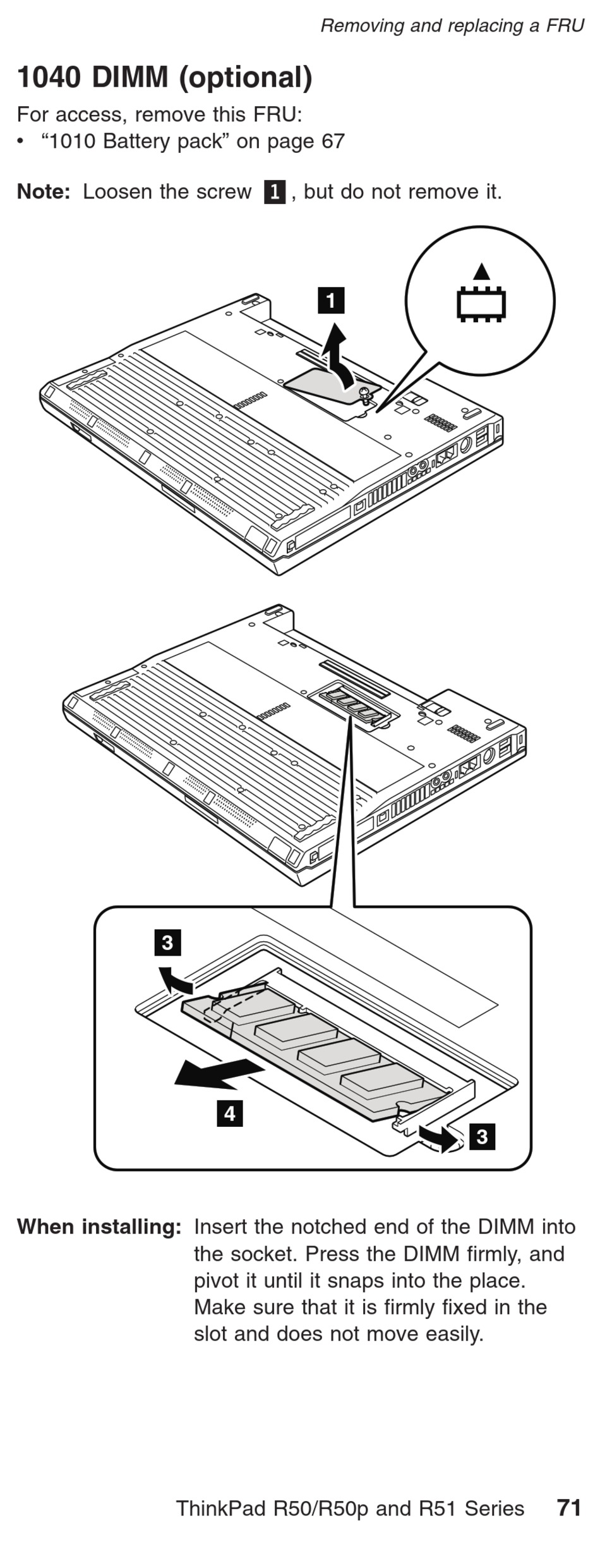

1040 DIMM (optional)

For access, remove this FRU:
v "1010 Battery pack" on page 67
Note: Loosen the screw 1 , but do not remove it.
When installing: Insert the notched end of the DIMM into
3
4
the socket. Press the DIMM firmly, and
pivot it until it snaps into the place.
Make sure that it is firmly fixed in the
slot and does not move easily.
ThinkPad R50/R50p and R51 Series
Removing and replacing a FRU
1
3
71
