The ASK-4® 401 is a single zone audio monitoring system with two Verifact™ A Microphones that
work together for extended zone coverage. Model APR-1 Base Station contains a 3" speaker for
both live audio and audio playback. The system is designed to interface with a DVR, VCR or other
audio devices that accepts line level input.
NOTE: The two microphones are designed to expand the area of coverage and are NOT
SEPARATE ZONES. Both microphones serve as one audio zone with approximate
coverage of 30' x 60' in a normal acoustical environment.

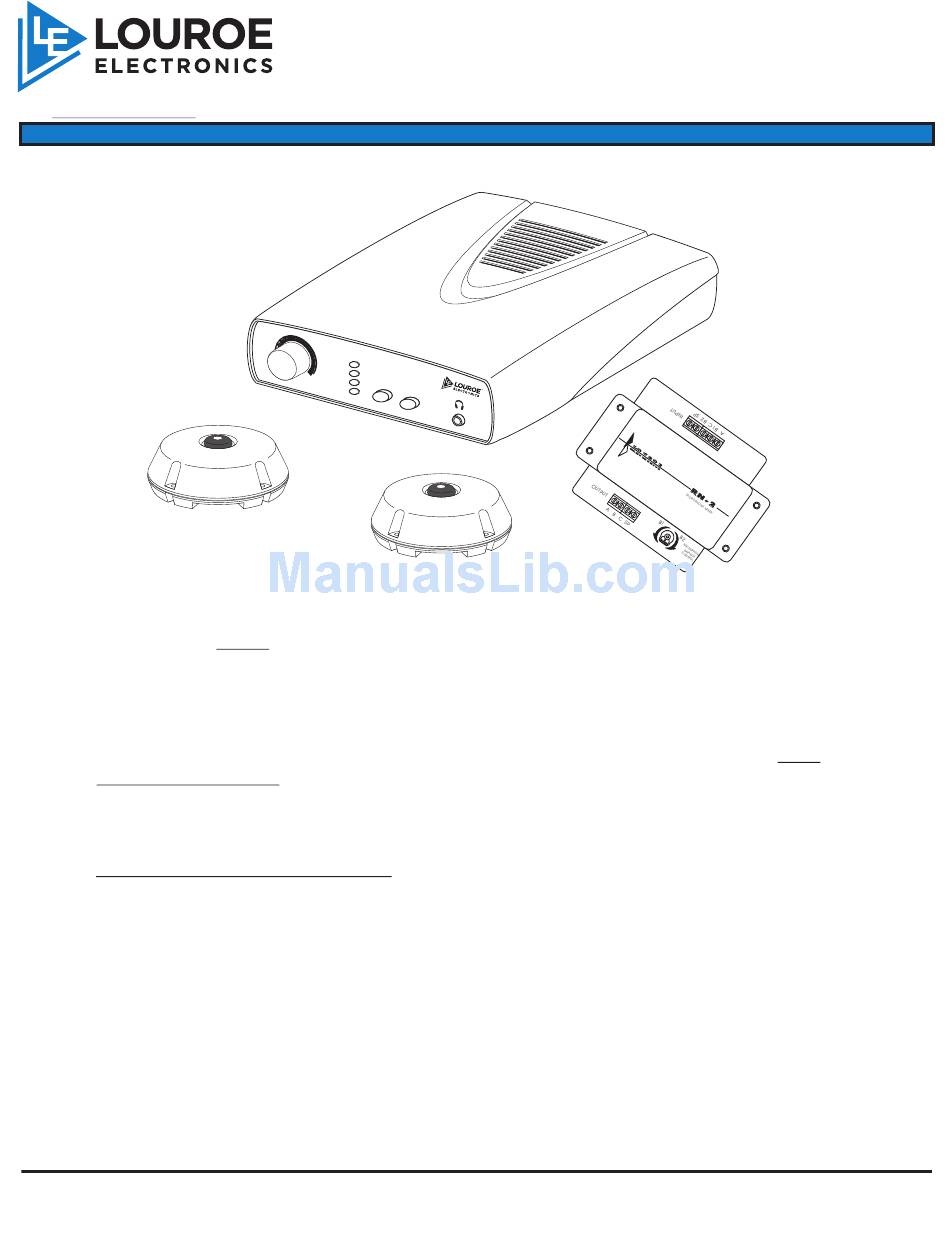

CONTENTS OF ASK-4 KIT #401
2 Verifact™ "A" Microphones
1 Model RN-2 Microphone Mixer
1 APR-1 Audio Base Station
1 Model AD-1 Power Supply (not shown)
1 Dual RCA Connector Cable (not shown)
