Roland CS-10EM Owner's Manual
Hide thumbs Also See for CS-10EM:

Advertisement

Binaural Microphones/Earphones
Copyright © 2010 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
Roland is a registered trademark of ROLAND CORPORATION in the United States and/or other countries.

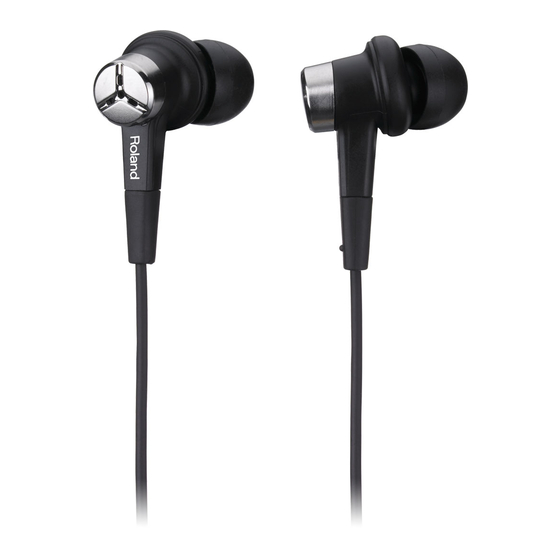

The CS-10EM is a microphone/earphone that combines back-electret stereo
microphones with in-ear headphones, allowing you to make binaural recordings
when the CS-10EM is inserted in your ears.
* Before using this product, carefully read the sections entitled: "Using the Unit
Safely" and "Important Notes. " These sections provide important information
concerning the proper operation of the product. Additionally, in order to feel
assured that you have gained a good grasp of every feature provided by your
new product, this manual should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.

Connecting to Your Recorder

Red: Microphone plug
Connect this to the mic
input jack of your recorder.
* The CS-10EM's microphones use plug-in power. They cannot be used with a
device that does not provide plug-in power. You must make sure that the mic
input jack of the device to which the CS-10EM is connected is a 3.5 mm stereo
mini, plug-in powered jack.
* If you're using an EDIROL R-09 series or Roland R-09/R-05 series unit, turn on
the plug-in power of the R-05/R-09 series unit.
* You must minimize the volume before making connections. If the volume of
the connected device is raised when you make connections, you might
damage the earphones, cause acoustic feedback, or cause some other
problem with your playback system.
* To prevent cable breakage, grasp the base of the plug when connecting or
disconnecting it.

Wearing the Earphones

* Make sure to turn the volume control for the headphones all the way down
before you put them on. Otherwise, if the volume is at a raised level when you
put on the headphones, you risk harming your ears due to unexpected
acoustical feedback or contact noise produced when putting on the
headphones.
L: Left
R: Right
Slide tube
The earphones will stay in your ears more securely if
you adjust the slide tube to the appropriate position.

Exchanging the Ear Pieces

The CS-10EM will sound di erently depending on
how tightly the ear piece is inserted in your ear.
In order to enjoy the best possible sound, insert
the ear piece so that it ts snugly and is
su ciently inside your ear.
When shipped from the factory, the M-size ear
pieces are attached. If the ear pieces do not t
your ears, try exchanging them with the included
L-size or S-size ear pieces.
To remove the ear piece, grasp the main body of
the earphone, and gently pull the tip of the ear
piece.
Black: Earphone plug
Connect this to the
headphone jack.
Ear Piece
Main Body of
the Earphone
CS-10EM
*
5
1
0
0
0
Owner's Manual
1
3
4
0
0
-
0
1
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-10EM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roland CS-10EM

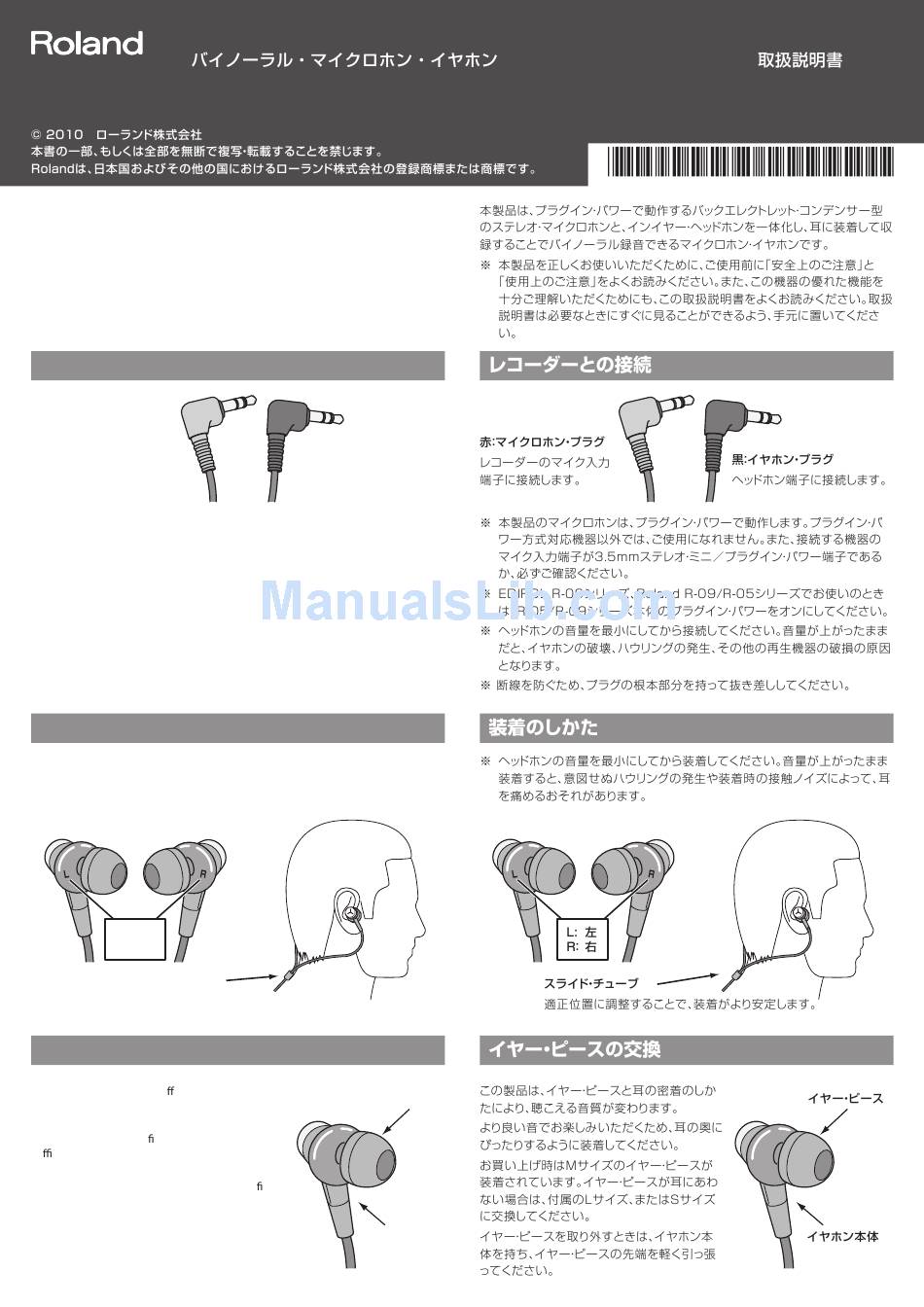

  • Page 1 Copyright © 2010 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. Roland is a registered trademark of ROLAND CORPORATION in the United States and/or other countries.
  • Page 2 Caution when recording • Since this device contains a microphone and earphone in a single unit, acoustic feedback may occur if you turn on a recording monitoring function and raise the recording level or headphone volume. Acoustic feedback is also more likely to occur if you cover the unit with the palm of your hand.
