User's manual
ST-246
An der Bundesstraße 2 49733 Haren/Ems
Germany
Tel. +49(0)5932-7334784
info@globe-fire.de
Jupiter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jupiter ST 246 and is the answer not in the manual?

Questions and answers

Summary of Contents for Globe fire Jupiter ST 246

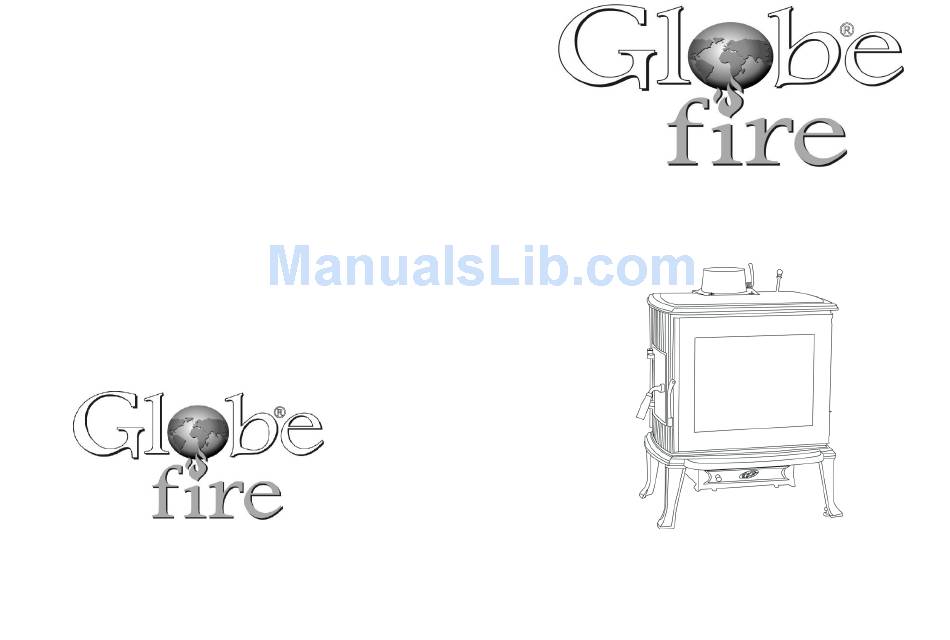

  • Page 1 User’s manual ST-246 An der Bundesstraße 2 49733 Haren/Ems Germany Tel. +49(0)5932-7334784 info@globe-fire.de Jupiter...
  • Page 2 - Globe fire - Globefire Ch.Leibfried GmbH, An der Bundesstraße 2, D-49733 Haren / Ems, Germany Tested stove type 1: EN 13240 Type Jupiter ST 246 Capacity 6 - 8 kW 7 kW Tested capacity Fuel Wood and Coal RRF - 40061039 Test-Nr.
  • Page 3 Globe Fire recommendations Lighting the fire: Open the primary / secondary air vent. Check to see if an eventual air vent or pipe in your burner is open. 1. Open the fire / grid. Globe Fire Congratulations with your new stove 2.
  • Page 4 Safety regulations PARTS The user must consult the user’s manual for instructions on operating and using the stove The stove has been tested according to German regulations and has acquired the Bauart 1 test. This offers the possibility of connecting more than one burner to a single chimney.
  • Page 5 Installation and operation manual for Stove model ST-246 Tested according to German standards: DIN EN 13240, Ö-Standard 15A and 1.+2. BimschV., CE and Luftreinhalte-Verordnung Switzerland 1. INSTALLATION OF STOVE. The stove is ready for use and can be connected to the chimney with the flue pipe. If possible, connect the flue pipe, keeping it short, straight or slightly at an angle to the chimney.
  • Page 6 19 Added new wood too soon. 19 Only add more wood after burnt wood and first wood has burnt to a cooled ash. glow. 5. GLOBE FIRE RECOMMENDATIONS “ lighting the fire “ ON PAGE 12. 6. AIR SUPPLY. Always make sure there is enough air in the room.
  • Page 7 By lighting for the first time, also when the temperature is not so high, follow the Average conditions - 120 m³ Globe fire recommendations “ lighting the fire “! Unfavourable conditions 82 m ³ 8. CARE AND MAINTENANCE. The stove must be cleaned yearly and occasionally even more often.
  • Page 8 9. STOVE WITH SELF CLOSING DOOR. 12. FIRE SAFETY DISTANCES. As our stoves have self-closing doors (fitted with a resisting spring) it is Furniture and flammable wall. possible to have more stoves connected to the same chimney. The distance from the back of the stove is 20 cm. All stoves must be fitted with a self-closing door.
