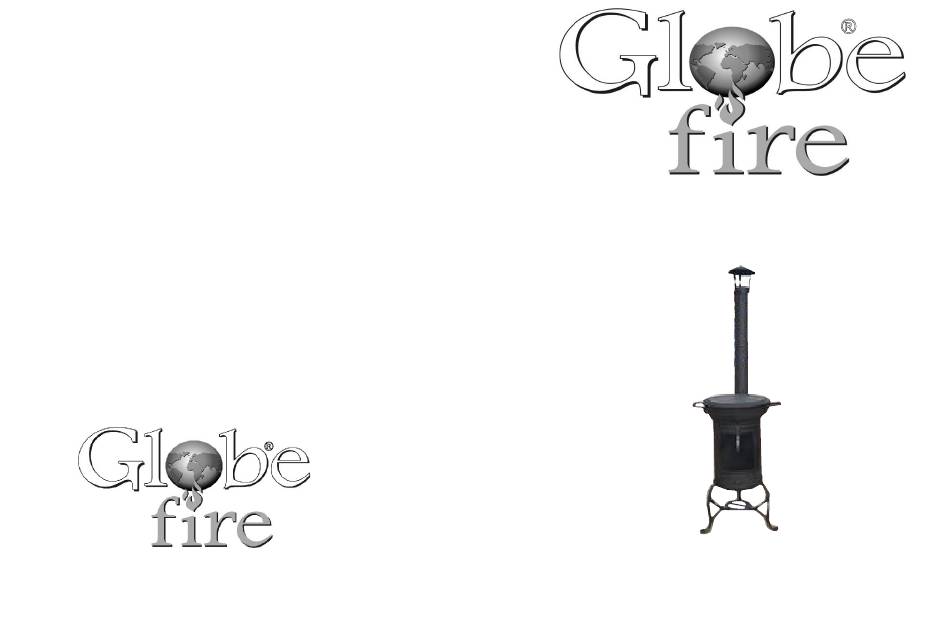

- Page 1 Assembly instructions Krakatau Ch. Leibfried GmbH An der Bundesstraße 2 49733 Haren/Ems Outdoor Stove Germany Tel: +49(0)5932-7334784 info@globe-fire.de www.globe-fire.de...
- Page 2 23 parts & 12 screws Before use read Ring 1 2 x A 3 x C 4 x D 3 x B assembly instructions carefully !!! Handle with care: The outdoor stove becomes hot when used. Ring 2 Take care that the outdoor stove is not near flammable Ash tray materials and is standing on firm ground.
- Page 3 KRAKATAU OUTDOOR STOVE 1. Attach distance ring loose (do not fully tighten screws) to the 3 legs 3. Insert B.B.Q grid 4. Insert fire grid 6. Attach pipe connection 5. Insert ash tray 7. Attach handles 2. Turn fire pot upside down to fix legs...
- Page 4 12. Attach the rain hood 9. Put lid on fire pot 8. Assemble the rings 11. Fix pipes together 10. Attach fire guard to the pot...
- Page 5 GRILLING PLATE STEAM & COOKINGSET...
- Page 6 BUTLER TABLE 89 cm. Slide the butler table over the handle 81,7 cm. 42 cm.Ø...
