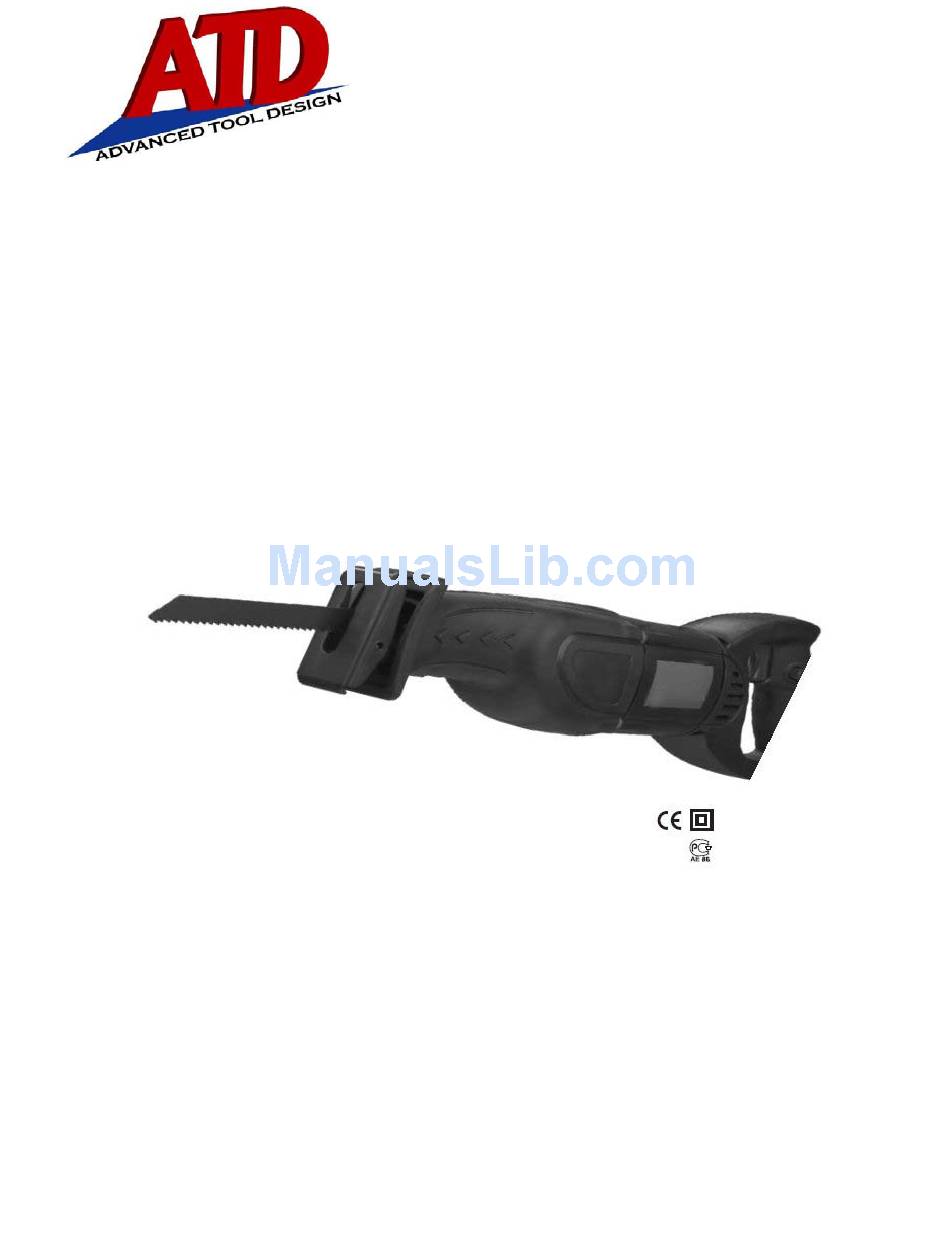

- Page 1 ATD-10535 7 AMP Variable Speed Reciprocating Saw Owner’s Manual Manufactured in China To ATD Tools, Inc. Specifications...
-
Page 2: Safety Instructions
ADDITIONAL SAFETY INSTRUCTIONS The ATD-10535 reciprocating saw must not be damp and must not be operated in a wet environment. Always inspect cable and plug before using the saw. Only have damage repaired by a qualified professional. Only plug the saw into the main wall socket when the tool is switched off. - Page 3 IMMEDIATELY SWITCH OFF THE TOOL IF THE FOLLOWING CONDITIONS EXIST: • Excessive sparking of the carbon brushes in the collector. • Interruption in the main power, main lead or main lead damage. • Switch is faulty. • Smoke or smell of scorched or burnt insulation. ELECTRICAL SAFETY Always check that the power supply corresponds to the voltage on the rating plate.
- Page 4 ADJUSTING THE FOOT PLATE ANGLE • To allow the foot plate to securely rest on the work piece, the angle of the footplate can be adjusted as shown in the diagram. • The footplate can also be extended by loosening the two footplate length adjustment screws using the 4 mm hexagon key and then pulling the footplate out to the required length.
- Page 5 TROUBLESHOOTING There are no user serviceable parts in this unit. Any repairs or servicing should be carried out by qualified service engineers. If you are having problems with your tool, below are a few common solutions: 1. The electromotor gets hot: •...
- Page 6 WARRANTY The ATD-10535 variable speed reciprocating saw has a 1 year warranty against manufactures defects in workmanship and materials. In the event of a warranty claim, return the tool to the place of purchase along with your invoice, receipt or other dated proof of purchase for a repair, replacement or refund which is left to the proprietor’s discretion.
