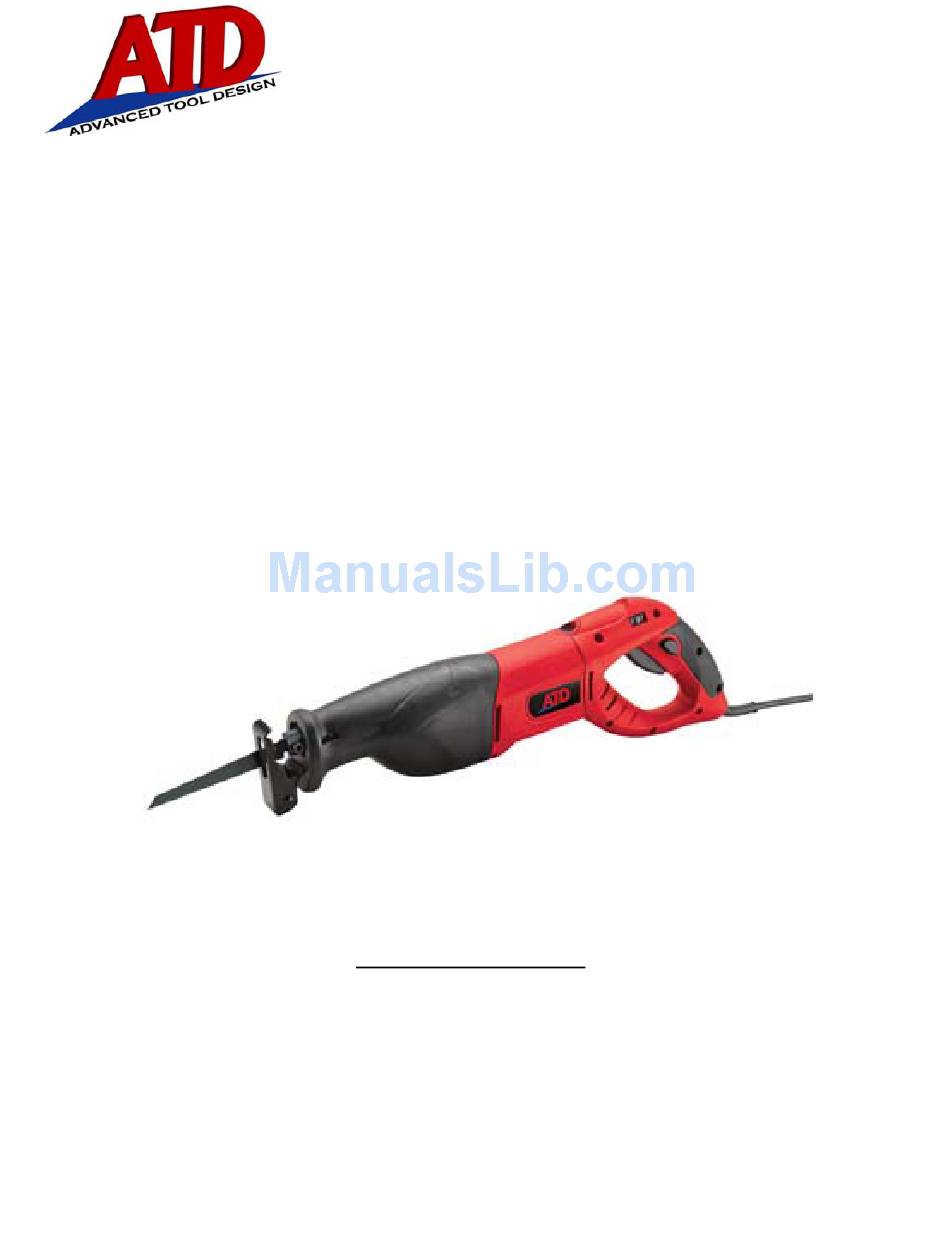

- Page 1 ATD-10536 8.1 AMP Variable Speed Reciprocating Saw Owner’s Manual TECHNICAL SPECIFICATIONS Voltage: 120V Frequency: 60Hz Rated Power: 8.1 Amps No load speed: 600-2900 SPM Manufactured in China To ATD Tools, Inc. Specifications...
-
Page 2: Important Safety Instructions
• The gear housing, intermediate plate, blade and pivoting guide shoe are likely electric conductors if the blade cuts into live wiring within a wall. • Use the ATD-10536 for only the jobs that is intended to do. Use for any application beyond its designed operation could cause property damage, personal injury or even death. - Page 3 14) UNPLUG TOOLS - When not in use, disconnect the tools from power supply (wall outlet) before servicing and when changing accessories such as blades, bits and cutters. 15) REMOVE ADJUSTING KEYS AND WRENCHES - Form the habit of ensuring that keys and adjusting wrenches are removed from the tool before turning it on.
-
Page 4: Changing The Blade
OPERATION TIPS BEFORE YOU START TO WORK • The pivoting guide shoe (item#2) is pivoted so that the saw can be raised gradually to position perpendicularly to the work while the saw moving. • Be sure the material to be cut is rigid. Securely clamp small work pieces in bench vise or with clamps to the work table. •... -
Page 5: Metal Cutting
PLUNGE CUTTING WARNINGS: • Plunge cutting metal is PROHIBITED. • To reduce the risk of electric shock, check work area for hidden pipes and wires before operating the reciprocating saw on a work piece or work area. • Blades longer than 6 in. (15.2cm) can whip and should not be used for plunge cutting. Failure to heed this warning can result in serious personal injury.
