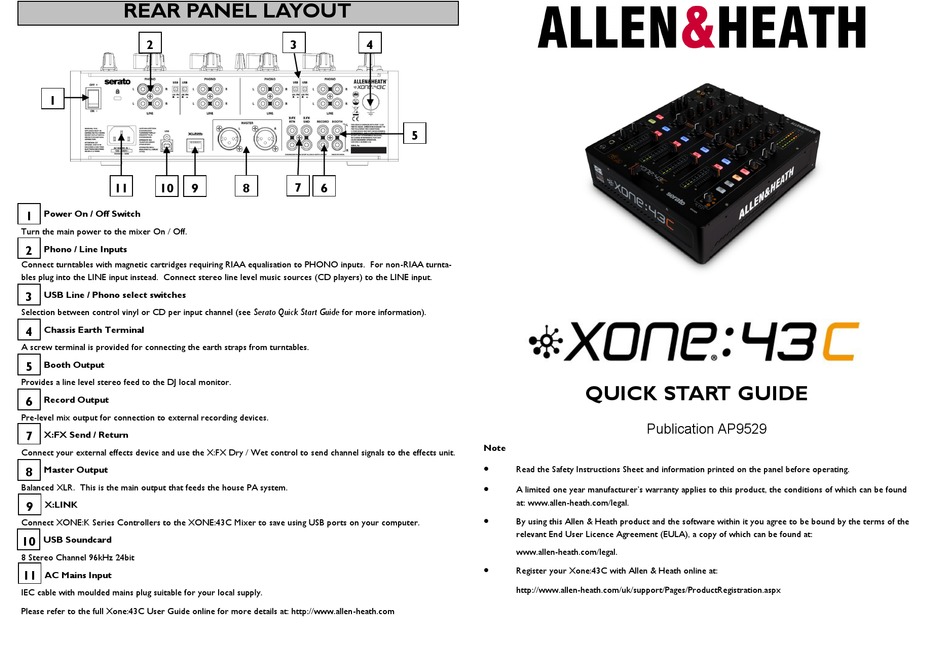

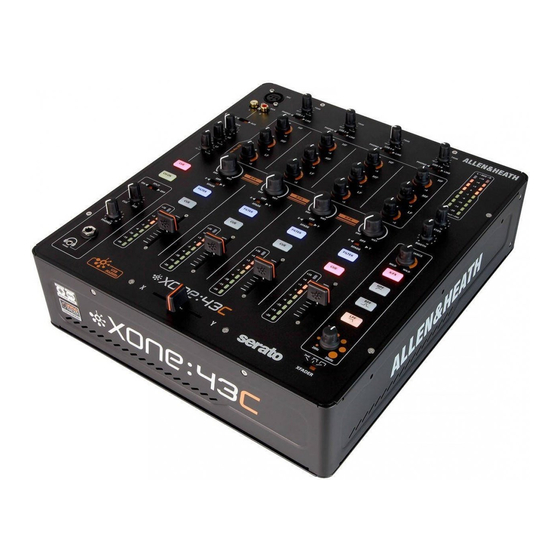

ALLEN & HEATH XONE:43C Quick Start Manual

REAR PANEL LAYOUT

2
1
11 10 9
1 Power On / Off Switch
Turn the main power to the mixer On / Off.
2
Phono / Line Inputs
Connect turntables with magnetic cartridges requiring RIAA equalisation to PHONO inputs. For non-RIAA turnta-
bles plug into the LINE input instead. Connect stereo line level music sources (CD players) to the LINE input.
3 USB Line / Phono select switches
Selection between control vinyl or CD per input channel (see Serato Quick Start Guide for more information).
4 Chassis Earth Terminal
A screw terminal is provided for connecting the earth straps from turntables.
5 Booth Output
Provides a line level stereo feed to the DJ local monitor.
6 Record Output
Pre-level mix output for connection to external recording devices.
7 X:FX Send / Return
Connect your external effects device and use the X:FX Dry / Wet control to send channel signals to the effects unit.
8 Master Output
Balanced XLR. This is the main output that feeds the house PA system.
9
X:LINK
Connect XONE:K Series Controllers to the XONE:43C Mixer to save using USB ports on your computer.
10
USB Soundcard
8 Stereo Channel 96kHz 24bit
11
AC Mains Input
IEC cable with moulded mains plug suitable for your local supply.
Please refer to the full Xone:43C User Guide online for more details at: http://www.allen-heath.com
3 4
5
8 7 6
QUICK START GUIDE
Publication AP9529
Note

Read the Safety Instructions Sheet and information printed on the panel before operating.

A limited one year manufacturer's warranty applies to this product, the conditions of which can be found
at: www.allen-heath.com/legal.

By using this Allen & Heath product and the software within it you agree to be bound by the terms of the
relevant End User Licence Agreement (EULA), a copy of which can be found at:
www.allen-heath.com/legal.

Register your Xone:43C with Allen & Heath online at:
http://www.allen-heath.com/uk/support/Pages/ProductRegistration.aspx
