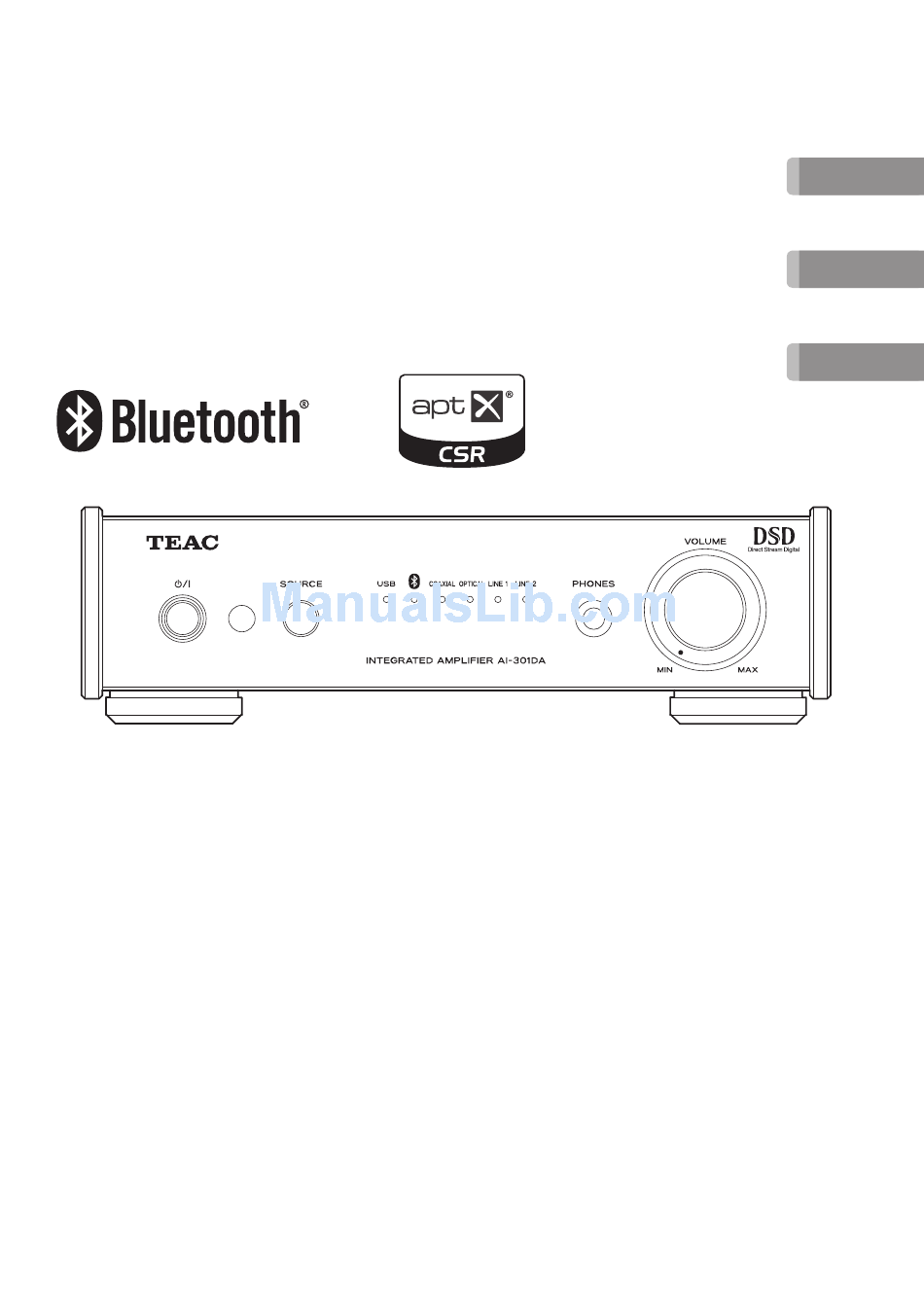

AI-301DA
USB DAC STEREO INTEGRATED AMPLIFIER
OWNER'S MANUAL
IMPORTANT SAFETY INSTRUCTIONS . . . . . 2
Wireless equipment precautions . . . . . . . . 6
Bluetooth® notes . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the TEAC Global Site . . . . . . . . . . . . . . 8
What's in the Box . . . . . . . . . . . . . . . . . . . . . . . . 8
Product registration . . . . . . . . . . . . . . . . . . . . . 8
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Control Unit . . . . . . . . . . . . . . . . . . . 10
Front Panel Overview (AI-301DA) . . . . . . . 11
Speaker Connection . . . . . . . . . . . . . . . . . . . . 12
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Remote Control Unit Overview . . . . . . . . . 16
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Playing back music on a computer . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 26
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 27
D01223000D
MODE D'EMPLOI
INSTRUCTIONS DE SÉCURITÉ
IMPORTANTES . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Précautions pour les équipements
sans fil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Notes pour la technologie sans fil
Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Contenu de l'emballage . . . . . . . . . . . . . . . . 32
Utilisation du site
mondial TEAC . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Avant l'utilisation . . . . . . . . . . . . . . . . . . . . . . . 33
Télécommande . . . . . . . . . . . . . . . . . . . . . . . . 34
Présentation de la face avant
(AI-301DA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Raccordement des enceintes . . . . . . . . . . . 36
Connexions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Présentation de la télécommande . . . . . . 40
Fonction d'économie automatique
d'énergie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Lecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Lecture de musique sur un ordinateur . 47
Guide de dépannage . . . . . . . . . . . . . . . . . . . 50
Caractéristiques techniques . . . . . . . . . . . . 51
MANUAL DEL USUARIO
INSTRUCCIONES IMPORTANTES DE
SEGURIDAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Precauciones con los equipos
i nalámbricos . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Advertencias sobre Bluetooth® . . . . . . . . . 56
Web global de TEAC . . . . . . . . . . . . . . . . . . . 56
Qué hay en la caja . . . . . . . . . . . . . . . . . . . . . . 56
Antes de su utilización . . . . . . . . . . . . . . . . . 57
Mando a distancia . . . . . . . . . . . . . . . . . . . . . . 58
Descripción del panel frontal
(AI-301DA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Conexión de los altavoces . . . . . . . . . . . . . . 60
Conexiones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Descripción del mando a distancia . . . . . 64
Función de ahorro de energÃa
a utomático (APS) . . . . . . . . . . . . . . . . . . . . . . . 65
Reproducción . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Reproducción de música en un
ordenador . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Solución de posibles fallos . . . . . . . . . . . . . 74
Especificaciones . . . . . . . . . . . . . . . . . . . . . . . . 75
ENGLISH
FRANÇAIS
ESPAÑOL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teac AI-301DA
Summary of Contents for Teac AI-301DA
-
Page 1: Table Of Contents
Web global de TEAC . . . . . . . . . . . . . . . . . . -
Page 2: Important Safety Instructions
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc . and any use of such marks by TEAC CORPORATION is under license . © 2013 CSR plc and its group companies . T he aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions . - Page 3 1) Read these instructions . o The apparatus draws nominal non-oper- 2) Keep these instructions . ating power from the AC outlet with its 3) Heed all warnings . POWER or STANDBY/ON switch not in the 4) Follow all instructions . ON position .
- Page 4 IMPORTANT SAFETY INSTRUCTIONS (continued) Precautions concerning batteries The nameplate is located on the bottom of the Misuse of batteries could cause them to unit as shown below. rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully.
-
Page 5: Declaration Of Conformity
DECLARATION OF CONFORMITY We, TEAC AUDIO EUROPE, Liegnitzer Straße 6, 82194 Gröbenzell, Germany declare in own responsibility, the TEAC product described in this manual is in com- pliance with the corresponding technical standards. -
Page 6: Wireless Equipment Precautions
Wireless equipment precautions Compliance of radio transmitter and Model for EEA (European Economic Area) This equipment complies with the harmonised interference standards of DIRECTIVE 1999/5/EC (R&TTE). Model for USA Labeling of conformity This device complies with Part.15 of FCC Rules. CE marking: Operation is subject to the following two conditions:... - Page 7 Radiation Exposure requirements Information for interference This equipment meets the regulation, which (FCC requirements) is recognized internationally, for the case of This equipment has been tested and found human exposure to radio waves generated by to comply with the limits for a Class B digital the transmitter.
-
Page 8: Bluetooth® Notes
Product registration device's operation manual or contact the shop where you purchased it. Customers in the USA, please visit the follow- ing TEAC website to register your TEAC product Using the TEAC Global Site online. http://audio.teac.com/support/registration/ You can download the dedicated drivers necessary for this unit from the TEAC Global Site: http://teac-global.com/... -
Page 9: Before Use
Before Use CAUTION o If a TV is turned on while the unit is on, static might appear on the TV screen depending Placement of the unit on the characteristics of the TV broadcast o Do not put anything on top of the unit. signal. -
Page 10: Remote Control Unit
Remote Control Unit Battery Installation The included remote control allows this unit to be operated from a distance. Remove the battery compartment Point the remote control at the main unit’s remote sensor from a distance of 16 feet (5 cover. meters) or less. -
Page 11: Front Panel Overview (Ai-301Da)
Front Panel Overview (AI-301DA) Standby/on (¤) button Press this button to turn the unit on and put it in standby. The blue indicator lights when the unit is turned on. When this unit is in standby mode, it still consumes some power, which is why the term “standby”... -
Page 12: Speaker Connection
Speaker Connection Caution PRECAUTIONS before connection o Connect the power cord's plug to the wall o Check the impedance of your speakers. outlet only after all other connections are Connect speakers with an impedance of complete. between 4 ohms and 8 ohms. o Read the instructions of each device that o The red speaker terminals are positive (+) you intend to use with this unit. - Page 13 How to connect speakers Turn the terminal cap counterclockwise to loosen it. The speaker terminal caps cannot be fully removed from the unit. Insert the wire into the terminal and turn the terminal cap clockwise to securely connect it: o Make sure none of the wire insulation is under the terminal and only the bare, stripped wire is touching the terminal.
-
Page 14: Connections
Be sure to connect each plug securely. Cassette deck, CD player, etc. Computer LINE OUT Install the dedicated TEAC driver software on your computer before connecting the TEAC AI-301DA unit to the computer (see page 23). Connection DIGITAL OUT DIGITAL OUT terminal or (OPTICAL) (COAXIAL) - Page 15 USB input port Connect to the USB port of a computer to input digital audio from it. Use a commercially-available USB cable. o Install the dedicated TEAC driver software on the computer before connecting the unit (see page 23). Maintenance connector (UPDATE) This connector is only for maintenance use.
-
Page 16: Remote Control Unit Overview
Input source selection buttons Use these buttons to select the playback source. VOLUME (−/+) buttons Use these buttons to adjust the volume. You can control both this AI-301DA and a PD-H01 using the RC-1313 remote control. Only the buttons used for the AI-301DA are explained in this document. -
Page 17: Automatic Power Saving (Aps) Function
Automatic power saving (APS) function This unit has an automatic power saving function. The operation of this function depends on the auto- matic power saving (APS) setting and the selected input source. When automatic power saving (APS) is on If there is no signal from the selected input source and no operation has occurred for about 30 minutes, the unit will enter standby mode.* Operation of the main unit or the remote control will end standby mode. -
Page 18: Playback
Playback Press the standby/on (¤) button to turn the unit ON. Press the SOURCE button repeatedly to select a source. Each time the SOURCE button is pressed, the source changes as follows: Bluetooth COAXIAL LINE1 OPTICAL LINE2 The indicator lights for the selected source. o The input source indicators blink when the input signal is a digital audio signal in a for- mat other than PCM or DSD (such as Dolby Digital, dts or AAC). -
Page 19: Bluetooth
Bluetooth (1) Press the standby/on (¤) button to turn the unit on. o You can also use the remote control standby/on (¤) button. Press the SOURCE button one or more times to select Bluetooth ( ). This sets the source to Bluetooth. o The unit can pair and connect with other Bluetooth devices and its Bluetooth indicator blinks. - Page 20 Bluetooth (2) Connecting with an already paired Bluetooth device When the input source of this unit is set to “Bluetooth” and the other Bluetooth device is on, the Bluetooth function will be active and they will connect automatically. If they do not connect automatically, however, you can connect them manually as shown in the following examples with smart phones.
- Page 21 Start playback on the other Bluetooth device. o Confirm that the volume is turned up on the other Bluetooth device. If you do not turn up the volume on the playback device, no sound might be output from this unit. Turn the VOLUME knob to adjust the volume.
- Page 22 Bluetooth (3) Selecting songs Selecting the previous song Press the . button on the Bluetooth device. Selecting the next song Press the / button on the Bluetooth device. Pausing playback Press pause or a similar control on the Bluetooth device. Muting playback If you want to temporarily mute the volume of this unit, press the MUTE button on the remote control.
-
Page 23: Playing Back Music On A Computer
Download the dedicated driver from the TEAC Global Site: http://teac-global.com/ This unit can be used with the following Windows operating systems. Windows XP (32-bit) - Page 24 Downloading the TEAC HR Audio Player application If you need, you can download our free TEAC HR Audio Player application, which supports DSD file playback, from the TEAC Global Site (both Mac and Windows versions available).
- Page 25 If you can adjust the volume from the computer, set it to its maximum level and use this unit's VOLUME knob to adjust the level for the best audio quality. o If you are using the TEAC HR Audio Player Application, the volume cannot be adjusted from the computer.
-
Page 26: Troubleshooting
Troubleshooting If you experience any problems with the unit, please take a moment to read this page before seek- ing repair. If you still have a problem, contact the retailer from which you purchased the product. No power. Check the connection to the AC power source. If General the AC source is a switched outlet, confirm that the switch is turned on. -
Page 27: Specifications
Specifications Amplifier Section General Maximum power output Power supply 60 W + 60 W (JEITA 10%, 20 – 20 kHz, 4 Ω) Model for Europe ... .AC 230 V, 50 Hz 30 W + 30 W (JEITA 10%, 20 –... -
Page 28: Importantes
How To Obtain Warranty Service The parts and labor warranty will be effective for one (1) year Your unit must be serviced by an authorized TEAC service sta- from the date of the original purchase for products not used tion within the country in which the product was purchased. - Page 29 Comment obtenir une intervention sous garantie Votre unité doit être réparée par un service après-vente agréé par TEAC dans le pays d'achat du produit. Si vous ne trouvez pas de service après-vente agréé dans votre région, veuillez contacter TEAC à l'adresse appropriée donnée à la fin de cette garantie.
-
Page 30: Sans Fil
TEAC AUDIO EUROPE Liegnitzer Straße 6, 82194 Gröbenzell, Germany Phone: +49-8142-4208-141 This device has a serial number located on its back panel. Please record the serial number and retain it for your records. Model name: AI-301DA Serial number 0614 MA-2032D...
