- Page 1 GPS/GPRS/GSM vehicle tracking system EV-604 Vehicle GPS Tracker EV-604 User Guide V2.0 - 1 -...
- Page 2 EV-604 supports both GPS tracking and GSM Network Station tracking, which brings you a idea solution with 7-24 position fix with no blind area for locating your mobile objects.

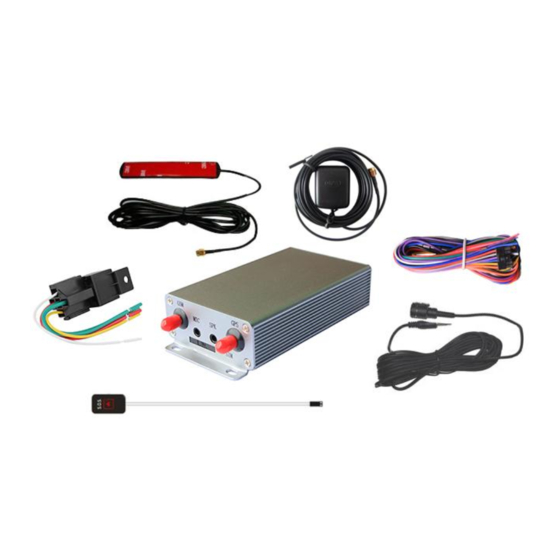

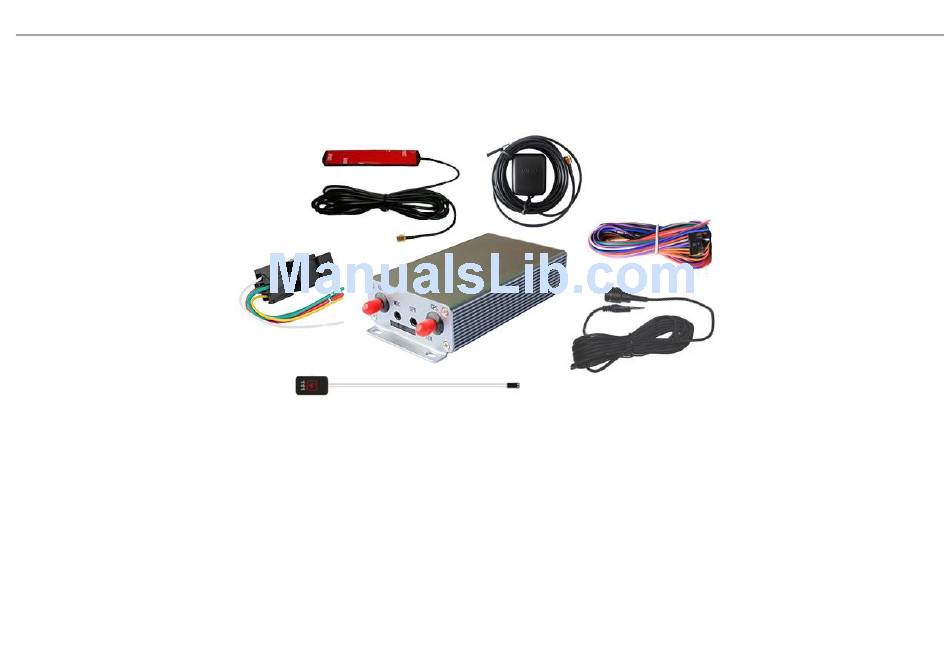

- Page 3 GPS/GPRS/GSM vehicle tracking system 2, Getting Start, Please follow me! 2.1 Hardware and Accessories: EV-604 is supplied in a box which includes: EV604 with back-up battery GPS Antenna GSM Antenna 12pin cable Relay Microphone - 3 -...
- Page 4 GPS/GPRS/GSM vehicle tracking system 2.2 View GSM LED (Green) Dim for 5 times The unit is being initialized Flashing(every EV604 is connected to the GSM network seconds) Flashing(every 0.1 EV604 is not connected to the GSM network second) GPS LED (Yellow) Dim for 5 times The unit is being initialized Flashing(every 3...
- Page 5 GPS/GPRS/GSM vehicle tracking system 2.3 Connection and Installation: ※ Your GPS Tracking Device can be installed quickly and easily by a qualified Auto Electrician. 2.3.1 Ensure that your EV604 has a working SIM installed. ※ Test before replacing all paneling. ※...
- Page 6 GPS/GPRS/GSM vehicle tracking system panel near the windscreen wipers or on the inner panel near the hinge of the hood. The lead from this antenna needs to go through the fire wall and screw to the device firmly by hand only (Do NOT use a spanner or similar device). 2.3.3 Inputs and outputs cable connections must be firm and reliable.
- Page 7 GPS/GPRS/GSM vehicle tracking system 3.2 To set the Authorized Number ※ It is not mandatory for all three of the authorized numbers to be set, however a minimum of one must always be set. Set up the 3 authorized mobile phone numbers to track the device. (Default Password: 123456) ①...
- Page 8 GPS/GPRS/GSM vehicle tracking system ※ To delete this number from stored memory, you can send password+C+0 to the tracker. ※ Only Number A can delete all the three numbers. Number B and C can delete themselves but cannot delete Number A. 3.3 Change password: Command: Old password + H + new password...
- Page 9 GPS/GPRS/GSM vehicle tracking system Note: U must be in capital form, send it to EV604 to add user name in SMS content. Example: 123456U1,Mazad, the tracker will reply “Mazad+GPS info!xxxxxxxx” 6. Locate the car position: 6.1 Track on Demand- Reply with Latitude, Longitude. Command: Password +F Note: F must be in capital form, send it to EV604 to acquire GPS information.
- Page 10 GPS/GPRS/GSM vehicle tracking system 6.2 Track on Demand- Reply with Coordinates and Web Link. Command: Password +FM Note: FM must be in capital form, send it to EV604 to acquire Location Link. Example: 123456FM The device will reply “Date: xxxxxxx; Time: xxxxxxxxx; LAT: xxxxxxxxxx; LOT: xxxxxxxxxx; Speed: xxxxxxkm/h; http://maps.google.com/map?q=22.6487882,114.030380&hl=en&t=m&z=16 Click on the link then the location can be shown directly on Google Map on your mobile phone.
- Page 11 GPS/GPRS/GSM vehicle tracking system 6.3 Track on Demand- Reply with Coordinates and Real Address. Command: Password +ADD Notes: ADD must be in capital form, send it to EV604 to acquire real address. This Function needs GPRS function support! Example: 123456ADD The device will reply “LAT: xxxxxxxxxx;...
- Page 12 GPS/GPRS/GSM vehicle tracking system Track by GSM base station tower The unit can be tracked by GSM base station tower, If GPS signal is not available for example in room, underground etc, user are able to locate by GSM tower. However, as compared to GPS satellite, GSM accuracy is proven to be worse than that of GPS.
- Page 13 GPS/GPRS/GSM vehicle tracking system X=No. Of Geofence (1~3), user can set 3 Geofences Y=0 means to turn off the function Y=1 means to turn on the functions Z=1 means to set alarm when the tracker enters the preset area Z=0 means to set alarm when the tracker breaches the district is the preset distance to the tracker’s original place, must be three digitals.
- Page 14 GPS/GPRS/GSM vehicle tracking system When the object moves exceeds 80 km/h, the unit will send SMS as “Over speed! +GPS info” to the authorized numbers. Send “123456J0,080” to tracker means turn off the speeding alert function. 11. GPS signal lost and recovery alert (Coordinate saving) Command: Password+K+1 Note: K must be in capital form.
- Page 15 GPS/GPRS/GSM vehicle tracking system Notes: R must be in capital form. is the preset distance to the tracker’s original place, must be 3 digitals. M means meters, KM means kilometers Example: 123456R1, 100M When the tracker moves out of 100meters, it will send SMS alarm to the preset numbers. To turn off this function, please send 123456R0 to the device.
- Page 16 GPS/GPRS/GSM vehicle tracking system 17. Two way voice communication Device will auto answer incoming call and two way voice conversation start. 18. Connect with Input/output ports: Power (+) Input 1 - Input 2 - Analog Input 2 Output 1 Output 2 Analog Input 1 GND(-) GND(-)
- Page 17 GPS/GPRS/GSM vehicle tracking system Note: The connections of these ports are restricted to these alarms/alerts. Pin Number Color Description 1 (Power,AD1) DC In (power source). Input voltage: 6V~36V. It can detect external power voltage automatically. 2 (IN1-) Grey Digital input 1 (negative triggering). Defaulted as SOS 3 (IN2-) Purple Digital input 2 (negative triggering).
- Page 18 GPS/GPRS/GSM vehicle tracking system 18.1 Power Connection Device is able to detect the external power voltage automatically if you connect power cable to power supply, the voltage can be read from SMS and tracking website. 18.2 Output Control 18.2.1 Cut off engine/oil. (Output 1 ,Pin5) Command: Password +D Notes: D must be in capital form, send it to EV604 Phone...
- Page 19 GPS/GPRS/GSM vehicle tracking system Cancel the engine/oil control. Command: Password +E Note: E must be in capital form, send it to EV604 to cancel the engine/oil control. Example: 123456E The device will reply "Cut Canceled! +GPS INFO" to confirm the command has been successfully processed. 18.2.2 Output 2 control Orange wire: This is an output +12V.
- Page 20 GPS/GPRS/GSM vehicle tracking system 18.3.2 Detecting vehicle door opened/closed When the door is opened, there will be negative triggering to Input 2 -, and then a detection alarm “Door opened!” will be sent to the server via GPRS The alert will be sent to WEB only. 18.3.3 Input 3 (positive) connects with car alarm siren.
- Page 21 GPS/GPRS/GSM vehicle tracking system 18.3.4 ACC Detection Connect green wire (Pin8 input 4 +) with car ACC(Ignition). Once the ACC is on, a detection alarm “ACC On!” will be sent to the server via GPRS. This alert will be sent to WEB only. 18.4 Analog inputs (PIN4) Fuel Detection (percentage of fuel) - 21 -...
- Page 22 GPS/GPRS/GSM vehicle tracking system Note: Fuel level sensors supplied by our company are resistance‐type sensors with output resistance: 0‐200Ω (ohm). For the circuit shown on above figure, if VCC is 12V, R should be 200Ω (ohm) and if VCC is 24V then R should be 600Ω (ohm) to make the input range to AD1 or AD2 is 0‐6V.
- Page 23 GPS/GPRS/GSM vehicle tracking system Make sure that the SIM card in the tracker supports the GPRS function. ※ The APN can be acquired from your local GSM operators. ※ Command: 123456S1, APN, user name, password Notes: All letters in this formula are case sensitive. Some access point name without user name and password, so please just leave it blank. Example: 123456S1, CMNET “CMNET”...
- Page 24 GPS/GPRS/GSM vehicle tracking system 22. Built-in Memory The device built in 8MB flash memory inside. It will store the GPS information when do not have GSM network coverage (i.e., very low population density areas, some mountainous terrain, underground areas etc). The device will transmit GPS locations to the WEB server automatically when the GSM network is recovered.
- Page 25 GPS/GPRS/GSM vehicle tracking system Cautions: Please comply with the instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3.
