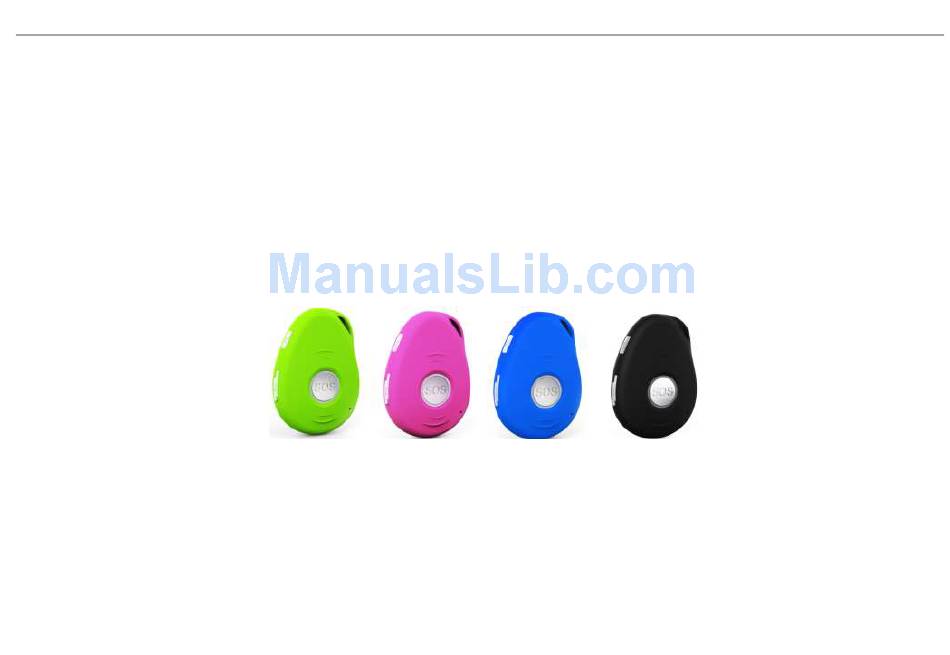

- Page 1 GPS tracking system USER GUIDE GPS TRACKING SYSTEM - 1 -...

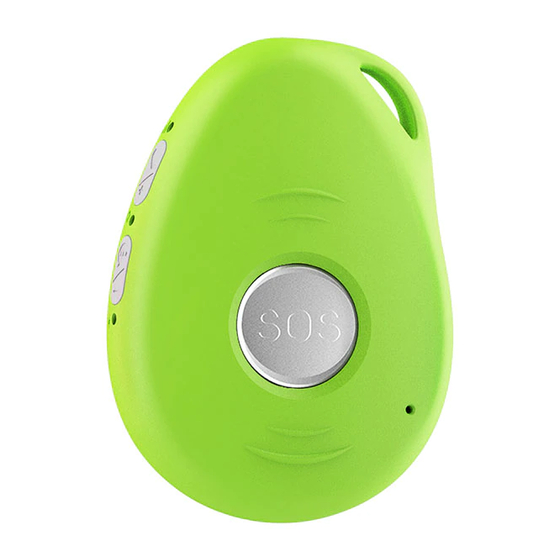

- Page 2 GPS tracking system Product Overview Thank you for purchasing EV-07W. This device is an advanced 3G network personal tracker that is waterproof IPX5, innovative miniature size personal remote positioning device with built-in U-blox GPS and WCDMA network technology. It’s for monitoring and protecting people and property.
- Page 3 GPS tracking system Getting to know your device - 3 -...
- Page 4 GPS tracking system SIM card Installation The SIM card is not included in the package. A Micro SIM card is available from the user's local operator. Unscrew the back cover and remove the cover. Insert SIM card and make sure it’s activated with credits Put the cover back and tighten the screws.
- Page 5 GPS tracking system What do the lights mean? Power Status LED Blue ON(solid) Blue Blinking Quickly Blue Off or blinking slowly State The device is charging Battery power is lower than 15% Device has been fully charged or not charging WCDMA LED--GREEN Light shows a single flash rapidly every 3 Light shows a double flash rapidly...
- Page 6 GPS tracking system Activating an SOS Alarm Press and hold the SOS button for 3 seconds until the device vibrates, and then green light will start to flash rapidly to confirm the request. After that, an SOS Alarm "Help me!" will be sent to all authorized phone numbers by text message and to the platform by WCDMA network. It will also the dial the 5 authorized numbers in sequence.
- Page 7 GPS tracking system ※ To delete this number, you can send to the device b) Command: A2 or A2,phone number Example: A2 or A2,123456789 The device will reply: Set mobile number 2 OK! ※ To delete this number, you can send to the device.
- Page 8 GPS tracking system 2. Incoming call control Command: After send above command, device only answer the call automatically from authorized numbers. (authorized numbers mean number A1~A5) Command: After send above command, device can answer the call automatically from all numbers. 3.
- Page 9 GPS tracking system 5. Location request 5.1 Reply with coordinates and web link Command: The device will reply “GPS Info! Time: xxxxx; Lat: xxxx; Lon: xxxx; Spd: xxxxx, Altitude:xxxx Bt: xxx maps.google.com/maps?q=loc:22.647379,114.030998 ※Put coordinates to Google earth or Google maps. Click on search button, then you will find the position fixed. ※Click on the link then the location can be shown directly on Google Map on your mobile phone.
- Page 10 GPS tracking system 7. Command password protection Command: 123456lock After send this command, then it will require a password in front of all commands (except reboot and RESET!). For example 123456LOC, 123456A1 etc. (default password is 123456) Remove password protection, just simply send 123456unlock 8.
- Page 11 GPS tracking system Z=0 means to set alarm when the tracker breaches the district is the preset distance to the tracker’s original place, must be 3 digitals. M means meters, KM means kilometers The device will send the message to the authorized numbers as “Geo fence alarm!+GPS info” when it enter the area you set. (User must set this function when the blue light is flashing rapidly.) To turn off this function, please send G1,0 or G2,0 or G3,0...
- Page 12 GPS tracking system 11. Movement alert Command: M1, xxxM/KM Notes: must be 3 digitals. M=meters, KM= kilometers The tracker must be stationary when setting this function Example: m1,100m When the tracker moves beyond 100 meters, it will send an SMS alarm to all registered phone numbers. To turn off this function, please send to the device.
- Page 13 GPS tracking system 14. No motion alarm Command: V1, xx S/M/H Note: No spaces in between, S means seconds, M means minutes, H means hours, xx means the time you set and must be two digitals. Example: V1,05M If device detect no motion more than 5 minutes and it will send an SMS warning alarm to all registered phone numbers. To turn off this function, please send 15.
- Page 14 GPS tracking system To turn off this function, please send AGPS0 Very important: to be able to use AGPS function, user also need to set APN, but can be off. 18. Fall down alarm For the elderly who fall and are unable to get back up on their own and this may cause a devastating consequence. How it works: The device must sense height, impact and angle etc.
- Page 15 GPS tracking system 19. Outgoing Call control Command: CALL1 With this command, all registered numbers can receive the call from device if has SOS alarm or fall alarm. Command: CALL0 With this command, all registered numbers can’t receive the call from device if has SOS alarm or fall alarm. 20.
- Page 16 GPS tracking system 23. Initialization Command: RESET! Note: This is to make all settings back to the factory default. Device 5 working modes 1. Live Tracking Mode (1) Command: In this mode, Both WCDMA and GPS chip are always working, Battery can last 18~24 hours. 2.
- Page 17 GPS tracking system Both WCDMA and GPS chip will be off to save power, the device is unable to receive calls or SMS. It can be only activated by movement. Once movement is detected, it will run for the set time and sleep again if no movement is detected. Battery can last 40 days if no movement at all.
- Page 18 GPS tracking system How to connect device to the platform for real time tracking via WCDMA network. Open the link www.smart-tracking.com in your computer and login with your user ID and password. For more information pls contact the seller. WCDMA network Settings by SMS 1.
- Page 19 GPS tracking system 2. Set updating Time interval by SMS Command: TIxxS/M/H The meaning of “xx”, The setting must be in 2 digitals and maximum 99 in value, which means 01~99. xxS is the time interval in second with range (30~99) xxM is the time interval in minute with range (01~99) xxH is the time interval in hour with range (01~99) Example: TI01M...
- Page 20 GPS tracking system After send the above command, the tracker will send the heartbeat packet to the platform every 1 hour in PS1 and PS0 mode. The heartbeat function is used to keep the platform connection smooth, but GPS positioning data is invalid. Command: HB00M When the interval is 00, the heartbeat packet function is disabled.
- Page 21 GPS tracking system 9. Built-in Memory The device built in 8Mb flash memory inside. It will store the GPS information when do not have WCDMA network coverage (i.e., very low population density areas, some mountainous terrain, underground areas etc). The device will transmit GPS locations to the WEB server automatically once the WCDMA network is recovered.
- Page 22 GPS tracking system GPS sensitivity Cold start: -148dBm Hot start: -162dBm GPS accuracy <2.5m Time to First Fix Cold start 32s, Warm start 11s, Hot start 1s Charging Voltage 5V DC Battery Chargeable 3.7V 800mAh Standby Current ≤2mAh Storage Temperature -40°C to +85°C Operation Temperature -20°C to +80°C...
