SMAX Technology GB1 User Manual

2mp box camera, 2.8~12mm vari-focal lens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . s m a x . c o m . t w
G
2MP Box Camera, 2.8~12mm Vari-Focal Lens
B1
User
Manual
Ver 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB1 and is the answer not in the manual?

Questions and answers

Related Manuals for SMAX Technology GB1

Summary of Contents for SMAX Technology GB1

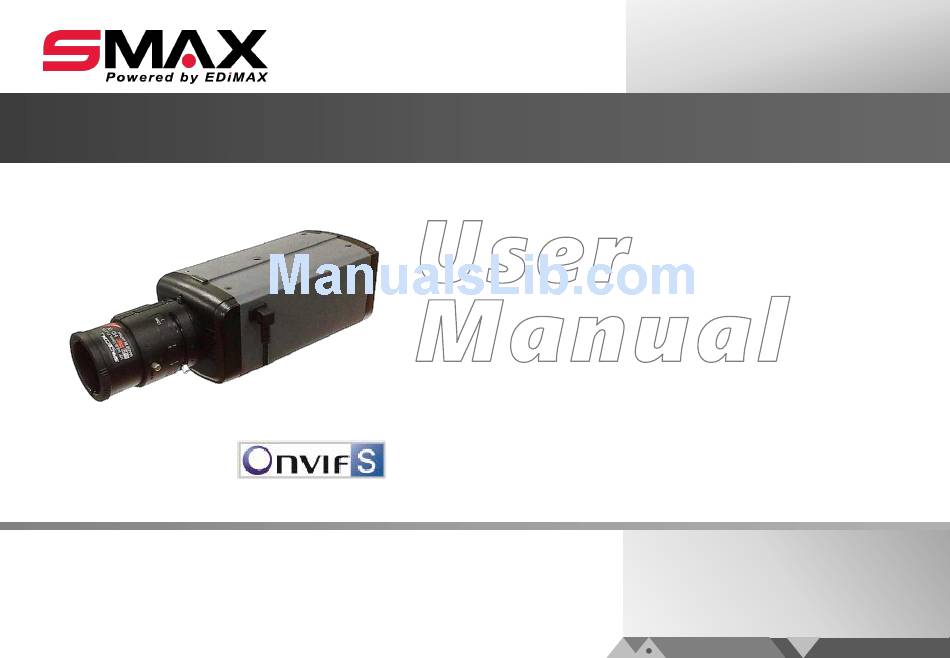

  • Page 1 w w w . s m a x . c o m . t w 2MP Box Camera, 2.8~12mm Vari-Focal Lens User Manual Ver 1.2...
