Fermax Cityline Quick Manual
Proximity
keypad
fingerprint
bluetooh
radio frequency
combined
Hide thumbs
Also See for Cityline:
- Programming manual (80 pages) ,
- Installer manual (60 pages) ,
- Installer manual (28 pages)
Related Manuals for Fermax Cityline
Summary of Contents for Fermax Cityline
-

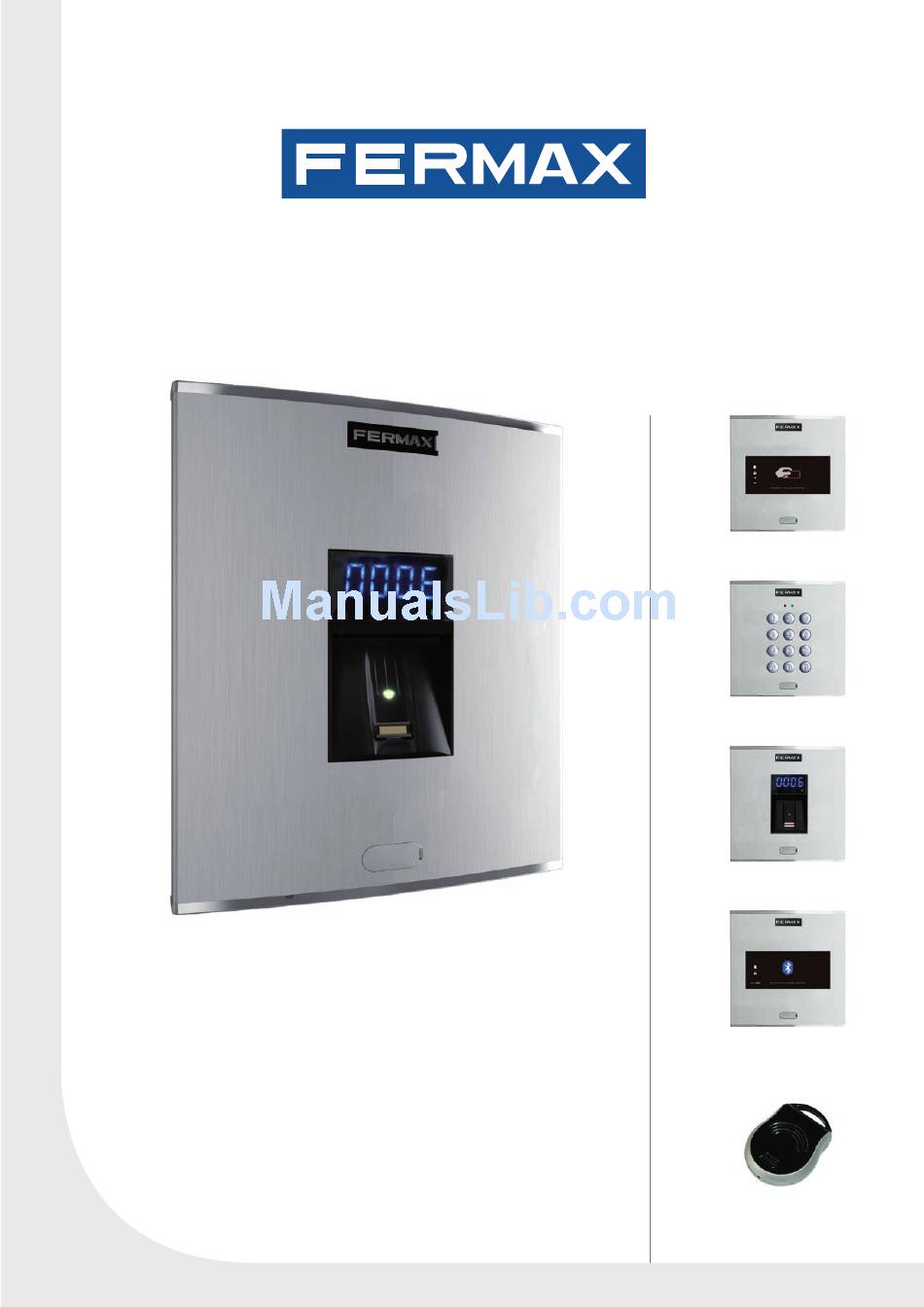

Page 1: Access Control
2012 ACCESS CONTROL PROXIMITY KEYPAD FINGERPRINT BLUETOOH RADIO FREQUENCY COMBINED... - Page 3 INDEX QUICK GUIDE STAND-ALONE CENTRALIZED ACCESSORIES INDEX OF REFERENCES...
- Page 4 QUICK GUIDE OF REFERENCES KEYPAD Cityline Skyline Cityline CL Marine Loft 6991 7438 3610 4699 4540 • STAND-ALONE 6994 7453 23291 4696 • MDS/CAC CENTRALISED PROXIMITY Cityline Skyline Cityline CL Marine Loft 6992 7440 2347 5472 4530 • STAND-ALONE 6992...
- Page 5 Proxi+keypad Loft Proxi+Keypad Proxi+Keypad 6996 • STAND-ALONE 6996 6995 • MDS/CAC CENTRALISED 6996 6995 4480 4550 • WG-26/DATACLOCK CENTRALIZED BLUETOOTH Cityline Skyline Marine Mini 6993 7441 5473 4479 • STAND-ALONE • MDS/CAC CENTRALISED 6993 7441 5473 4479 • WG-26/DATACLOCK CENTRALIZED...
- Page 7 STAND-ALONE ACCESS CONTROL...
- Page 8 S TA N D - A L O N E Stand-alone systems are recommended for buildings requiring basic access control, without the need for an incidents register. It can also be used as an add on to an electronic or video door- entry system and allows residents access to buildings, to offices and garages.
- Page 9 There are several types of technology, depending on the interaction between the identifier and the reader. KEYPAD. The user should enter a code on the keypad. It is the most economical model as it does not use identifiers. The same code can be used by various users.
-
Page 10: Technical Features
6 digits is entered. • Capacity: up to 100 user codes. • Length 4 to 6 digits. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional). • Recommended for interiors and exteriors. - Page 11 STAND -ALONE Keypad W Skyline Memokey Ref.7438 • Access control keypad module to be installed on Skyline audio/video door entry system panels. • Lock release on entering a code with up to 6 pre- programmed digits. • Capacity: up to 100 user codes. •...
- Page 12 STAND -ALONE Keypad City Classic Memokey Ref.3610 • Access control keypad which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Capacity: up to 100 user codes. • Length 4 to 6 digits. •...
- Page 13 STAND -ALONE Keypad City Classic CR Memokey Ref.3620 + Ref.3621 • Access control keypad which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Capacity for up to 100 user codes. •...
- Page 14 STAND -ALONE Keypad Marine Memokey Ref.4699 • Access control keypad which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Capacity: up to 100 user codes. • Length 4 to 6 digits. •...
- Page 15 STAND -ALONE Keypad Loft Memokey Ref.4540 • Access control keypad which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Membrane keypad finished in texturised ABS plastic with status LEDs. • Surface installation. •...
- Page 16 Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional). • Recommended for interior and exterior use.
- Page 17 Recommended if we want to deactivate faulty cards. Power Supply PC Software: For managing user activation/ deactivations. The WINPROX software can be downloaded from Exit Button www.fermax.com Lock-Releases Ref.7440 sPecIFIcAtIons IDentIFIers • Reader Dimensions: 105.2X47.5 • Environmental Protection (IP) • Anti-Shock Protection (IK)
- Page 18 Keypad: Recommended if we want to deactivate faulty cards. PC Software: For managing user activation/ deactivations. The WINPROX software can be downloaded from sPecIFIcAtIons www.fermax.com • Dimensions: * Reader 130x128 * Flush Mounted Box 115x114x45 IDentIFIers * Surface Box 130x128x33 •...
- Page 19 Keypad: Recommended if we want to deactivate faulty cards. PC Software: For managing user activations/ deactivations. sPecIFIcAtIons The WINPROX software can be downloaded from www.fermax.com. • Dimensions: * Reader 150x180 * Flush Mounted Box 130x160x55 IDentIFIers * Surface Box 154x184x55 •...
- Page 20 Lock-Releases Keypad: Recommended if we want to deactivate faulty cards. PC Software: For managing user activation/ deactivations. The WINPROX software can be downloaded from www.fermax.com sPecIFIcAtIons IDentIFIers • Reader Dimensions 60x130x23 • Environmental Protection (IP) • Anti-Shock Protection (IK) References •...
- Page 21 READER's users. Also allows you to carry out all programming operations using simple It can be downloaded from www.fermax.com commands. WINPROX allows you to manage the access control system's autonomous proximity readers, their users and cards, manage incidents online,...
- Page 22 Built-in Proximity reader - Security mode: activates dual security, (Fingerprint+Card) for the same User. tecHnIcAl FeAtUres • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface • Relay lock-release activation. Programmable from installation (ref.7061, optional).
- Page 23 The PC programming software this module and they are installed in the building's interior: power can be downloaded from www.fermax.com. The «Clone» supply and lock-release. An exit button can be used optionally. option is available: it is used to copy all data entered in one reader into another.
- Page 24 (Administrator) and a remote infrared keypad. The PC programming software can be downloaded from www. 230Vac • Dimensions: * Reader 150x180 fermax.com. The «Clone» option is available: it is used to Power * Flush Mounted Box 130x160x55 copy all data entered in one reader into another. Supply...
- Page 25 The PC programming software • Relay lock-release activation. can be downloaded from www.fermax.com. It allows the «Clone» • Acoustic and visual status data. option which allows the user to copy all data from one reader to •...
- Page 26 • Access control reader which operates by means of telephones equipped with Bluetooth technology where the mobile telephone acts as a user identifier. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional).
- Page 27 Bluetooth technology where the mobile telephone acts as a user identifier. • Access control module to be integrated within Skyline and Cityline audio/video door entry system panels. • Recommended for interior and exterior use. • Reader and controller integrated within the same module.
- Page 28 PC/PDA (with a bluetooth connection). open the door. The «FermaxPC» programming software can be downloaded from - Request PIN : When the receiver detects a phone www.fermax.com in the list it requests the PIN (4-digit code configurable by the administrator). InstAllAtIon 2.
- Page 29 • Reduced size module to be setup in the circuit box or in the FERMAX audio/video door entry panel's flush mounted box. • Reader and controller integrated within the same module. • Can operate as a stand-alone or centralised system tecHnIcAl FeAtUres (configurable using dipswitch SW1).
- Page 30 STAND -ALONE Radio Frequency Trinary RF Dual Channel Emitter Ref.79561 • 433.92 MHz radio frequency emitter. • Trinary technology • Innovative and very robust design. • Dual channel emitter that can activate two relays. • Configuration of the required sequence using microswitches. •...
- Page 31 STAND -ALONE Radio Frequency Garage Receiver Ref.7952 • 433.92 MHz monochannel receiver. • Trinary technology. • The receiver accepts all emitters (ref.7956) with the same code. • When receiving the code, the receptor closes the circuit which activates the lock-release or door mechanism.
- Page 32 • The receiver accepts all emitters (ref.79561) which are coded with the same code. • These can be installed in the FERMAX door entry/video door entry panels' flush mounted box. • It could be installed 2 independent receivers with the same two-channel transmitter (ref.79561).
- Page 33 STAND -ALONE Radio Frequency DIN Rail Receiver Ref. 7903 • 433.92 MHz monochannel receiver. • Trinary technology. • The receiver accepts all emitters (ref.79561) coded with the same code. • Includes the RF receiver in DIN 6 format and the transformer or power supply.
- Page 34 STAND -ALONE Radio Frequency Digital RF Emitter Ref.24651 • 433.92 MHz radio frequency emitter. • Digital technology. • Innovative and very robust design. • Dual channel which can activate two relays. • Secure, unique code, which is non-configurable and corresponds to the emitter series. •...
- Page 35 STAND -ALONE Radio Frequency Villa Receiver Ref.7960 • 433.92 MHz mono-channel receiver. • Digital Technology. • Only authorised digital (ref.24651) or dual emitters (ref.25511) will activate the device. • Reduced size which allows them to be installed in electrical systems (mounted within standard 10x10cm boxes).
- Page 36 STAND -ALONE Radio Frequency Dual RF emitter Ref.25511 • 433.92 MHz radio frequency emitter. • Dual Technology. • Innovative and very robust design. • Dual-Channel emitter which can activate two relays. • Secure, unique code, which is non-configurable and corresponds to the emitter series. •...
- Page 37 STAND -ALONE 2011 Access control 2011 Access control...
- Page 39 CENTRALISED ACCESS CONTROL...
- Page 40 C E N T R A L I S E D 1. GENERAL FEATURES For large systems with various access points and extensive functions. Allows complete management of a system with several access points and advanced access control functions: restrictions by user groups, both in terms of space (zones) and time (timetables), one-way function, restriction of numbers, greater user capacity, activation of devices from the reader, recording of incidents for subsequent consultation, control or security centre.
- Page 41 3. READER TECHNOLOGY There are several types of technologies depending on the interaction between the identifier and the reader. KEYPAD. The user should enter a code on the keypad. It is the most economical model as it does not use identifiers. The same code can be used by various users.
- Page 42 · CAC Attendance: Presence Control Management (compilation included on the Central Unit in CD format or can be of employee payslips). Allows you to capture, define and control downloaded from www.fermax.com the hours worked by employees within a company using the same access control readers.
- Page 43 CENTRALISED CAC Server Software and Database Server Server Applications Server Applications: these are applications developed for the installer. · CAC Database Server: this is the application that manages the database where all information pertaining to the systems (users, incidents, etc..) is stored, and which manages the rest of the user applications and the CAC Server itself.
- Page 44 CENTRALISED CAC Access Software Customer Applications Client Applications: these are applications developed by the user and they allow them to get maximum advantage from the CAC system. Using CAC Access you can manage and control users, doors and incidents, create access restrictions and generate reports.
- Page 45 CENTRALISED CAC Software Attendance Customer Applications Client Applications: these are applications developed by the user and they allow them to get maximum advantage from the CAC system. The CAC Attendance application allows you to manage presence control This application is designed for personnel control by way of clock-ins which are recorded at a presence control terminal via a personal identifier (proximity card, keyring...
- Page 46 CENTRALISED the total presence time which must be fulfilled each day is indicated separately. • Night shifts can be defined. • Justified absences can be defined. - If you know a person is going to be absent for one day during a set period a justified absence can be included on this day and the absence type identified.
- Page 47 Wincom+ software is included in the Central Unit in CD In systems with large distances, you will need to install additional format or to can be downloaded from www.fermax.com power supplies at the access points in order to avoid drops in voltage with wiring.
- Page 48 CENTRALISED Software Wincom+ The WinCom+ application allows you to program MDS systems. The application was conceived so as to be able to define simple systems (electronic door entry system with central unit) and more complex systems (various central units on a network with access control, lift control, planner...).
- Page 49 CENTRALISED Door controller Ref.4420 • Door controller without memory. • Manages the devices connected to each access point: up to 2 readers (input/output), lock-release, exit button, door sensor and free access button. • Installed in the building's interior and separate from the reader to ensure greater security.
- Page 50 • Access control reader which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional).
- Page 51 CENTRALISED Keypad MDS/CAC W Skyline Keypad Ref.7453 • Access control keypad which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Access control module to be integrated within Skyline audio/video door entry system panels. •...
- Page 52 CENTRALISED Keypad MDS/CAC City Classic Keypad Ref.23291 • Access control reader which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Integrated within the City Classic aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.8951, optional) •...
- Page 53 CENTRALISED Keypad MDS/CAC Marine Keypad Ref.4696 • Access control keypad which allows the door to be opened when a pre-programmed code of up to 6 digits is entered. • Integrated within a 2.5mm Marine stainless steel panel. • Blue zamak backlit keypad. •...
- Page 54 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional).
- Page 55 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional).
- Page 56 CENTRALISED Proximity MDS/CAC V Skyline Proximity Ref.7440 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Access control module to be integrated within Skyline audio/video door entry system panels.
- Page 57 CENTRALISED Proximity Wiegand26-Data/Clock V Skyline Proximity Ref.7440 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Access control module to be integrated within Skyline audio/video door entry system panels.
- Page 58 CENTRALISED Proximity MDS/CAC City Classic Proximity Ref.23351 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within the City Classic aluminum panel. •...
- Page 59 CENTRALISED Proximity Wiegand26-Data/Clock City Classic Proximity Ref.4490 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within the City Classic aluminum panel. •...
- Page 60 CENTRALISED Proximity Reader MDS/CAC Marine Proximity Ref.5472 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within a 2.5mm Marine stainless steel panel. •...
- Page 61 CENTRALISED Proximity Reader Wiegand26-Data/Clock Marine Proximity Ref.5472 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Integrated within a 2.5mm Marine stainless steel panel. •...
- Page 62 CENTRALISED Proximity Reader Wiegand26-Data/Clock Loft Proximity Ref. 4560 • Access control reader which allows the door to be opened by swiping the proximity card or keyring. Only authorised cards or keyrings activate the device. Physical contact is not necessary. • Surface installation. •...
- Page 63 CENTRALISED Proximity Reader Identifiers Proximity Card without strip Ref.23361 Credit card format. White PVC material. Dimensions: 85x54mm Each card is marked with a code to allow it to be set up in the system. Does not require battery maintenance. ASK 125KHz Modulation. Icode Protocol.
- Page 64 Proximity+Keypad Ref.6995 • Double technology access control reader: proximity and keypad. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8854, including box) or surface installation (ref.7064, optional). • Recommended for interior and exterior use. • Reader and controller integrated within the same module.
- Page 65 Proximity + MDS/CAC Keypad Cityline Ref. 6995 • Double technology access control reader: proximity and keypad. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8854, including box) or surface installation (ref.7064, optional). • Recommended for interior and exterior use.
- Page 66 CENTRALISED Proximity+Display CAC Attendance reader Ref.6955 • Recommended for work schedule and access control monitoring in businesses, industries or offices. Includes proximity reader and display for viewing messages and clock-in date/times. Reader that lets you open the door with an approaching proximity card or keyring.
- Page 67 CENTRALISED Proximity and Keypad Wiegand26-Data/Clock City Classic Proximity + Keypad Ref.4480 • Double technology access control reader: proximity and keypad. • Operates independently or as a system for greater security. • Requires a door controller (ref.4420) for its connection and operation.
- Page 68 CENTRALISED Proximity and Keypad Wiegand26-Data/Clock Loft Proximity+Keypad Ref.4550 • Double technology access control reader: proximity and keypad. • Operates independently or as a system for greater security. • Module finished in textured ABS plastic. • Surface installation. • Recommended for interior use. •...
- Page 69 Fingerprint Reader Installation Diagram". Programming is done thanks to the software package which can be downloaded from www.fermax.com. The fingerprint codes are provided by the PC application and should be set up on the control C.U. (ref.2405 or ref.4410) system (central unit).
- Page 70 References Programming is done thanks to the software package which can Normal Normal Reinforced w/sensor be downloaded from www.fermax.com. The fingerprint codes are 12Vdc 30708 2888 29580 C.U. (ref.2405 provided by the PC application and should be set up on the control or ref.4410)
- Page 71 2888 29580 Programming is done thanks to the software package which can be downloaded from www.fermax.com. The fingerprint codes are provided by the PC application and should be set up on the control C.U. (ref.2405 or ref.4410) system (central unit).
- Page 72 • The Wiegand Readers (WG)/Data-Clock allow greater security function: Fingerprint+Code, for the same User. anti-vandalism security given that the reader is not • Integrated within the Cityline aluminum panel. connected to the lock-release mechanism or the exit • Flush mounted (ref.8855) or surface installation button.
- Page 73 Ref.6993 • The access control reader uses telephones with Bluetooth technology where the mobile phone identifies the user. • Integrated within the Cityline aluminum panel. • Flush mounted (ref.8948, including box) or surface installation (ref.7061, optional). • Recommended for interior and exterior use.
- Page 74 Programming is done thanks to the «FermaxPC» software • The Wiegand readers (WG) or Data/Clock allow greater package which can be downloaded from www.fermax.com. anti-sabotage security given that all the devices are The telephone codes in wiegand and data/clock format are...
- Page 75 Programming is done thanks to the «FermaxPC» software anti-sabotage security given that all the devices are package which can be downloaded from www.fermax.com. The connected to the door controller and are therefore telephone codes in wiegand and data/clock format are provided outside the range for interference.
- Page 76 Programming is done thanks to the «FermaxPC» software • Acoustic and visual status data. package which can be downloaded from www.fermax.com. • The Wiegand readers (WG) or Data/Clock allow The codes of phones in Wiegand and data/clock format are...
- Page 77 CENTRALISED Radio Frequency MDS/CAC RF Receiver Ref.1065 • 433.92 MHz mono channel receiver. • Digital technology. • RF receiver with capacity for up to: - 1.020 codes with MDS central unit (ref.2405). - 2.048 codes with CAC central unit (ref.4410). •...
- Page 78 CENTRALISED Radio Frequency Digital RF Emitter Ref.24651 • 433.92 MHz radio frequency emitter. • Digital Technology. • Innovative and very robust design. • Dual channel emitter which can activate two relays. • Secure, unique code which is non-configurable and corresponds to the emitter series.
- Page 79 CENTRALISED Radio Frequency Dual RF Emitter Ref.25511 • 433.92 MHz radio frequency emitter. • Digital Technology. • Innovative and very robust design. • Dual-channel emitter which can activate two relays. • Secure, unique code which is non-configurable and corresponds to the emitter series.
- Page 80 CENTRALISED INSTALLATION DIAGRAM FOR READERS WITH INTEGRATED CONTROLLER (MDS/CAC) InterFAce 2011 Access control 2011 Access control...
- Page 81 CENTRALISED BAtterY 2011 Access control 2011 Access control...
- Page 82 CENTRALISED INSTALLATION DIAGRAM FOR READERS WITH DOOR CONTROLLER (WIEGAND 26-DATA CLOCK) InterFAce 2011 Access control 2011 Access control...
- Page 83 CENTRALISED BAtterY 2011 Access control 2011 Access control...
- Page 84 CENTRALISED CENTRALISED FINGERPRINT READER INSTALLATION DIAGRAM InterFAce InterFAce 2011 Access control 2011 Access control...
- Page 85 CENTRALISED BAtterY 2011 Access control 2011 Access control...
- Page 86 CENTRALISED DOUBLE TECHNOLOGY READER INSTALLATION DIAGRAM InterFAce InterFAce 2011 Access control 2011 Access control...
- Page 87 CENTRALISED BAtterY 2011 Access control 2011 Access control...
- Page 89 ACCESSORIES ACCESS CONTROL...
- Page 90 ACCESSORIES Lock-Release This is the device which allows you to temporarily unlock the door in secure conditions: either if an identifier is accepted or if the door is opened from inside using the exit button. The various models are detailed below: ELECTRICAL MAGNETIC •...
-
Page 91: Power Supplies
ACCESSORIES Power Supplies When selecting the appropriate power supply you must keep in mind the consumption of all system elements, in particular the lock- release. It is recommended that you use a magnetic-thermal switch which is not shared with any other piece of equipment to avoid disconnection of the power supply as a result of overload. - Page 92 ACCESSORIES Door Sensor / Relay REF. 1076 MAGNETIC CONTACT Surface system between door and door frame. Connected to the controller's door sensor input. REF. 3491 DIN RELAY 12Vdc/12A Makes it possible to activate a device up to 12A. Power Disconnector REF.
- Page 93 ACCESSORIES PC management modules for centralised systems Configuration of the system's operating mode, activation and deactivation of users and restrictions put in place should be done on the PC and communicated to the Central Unit to allow these to work autonomously. The information generated by the system (events) should be communicated to the PC in real time.
- Page 94 ACCESSORIES Technical and Automation Alarms SENSORS - TECHNICAL ALARM DETECTION Different sensors can be connected to the system (up to 1.000 per Central Unit) to carry out automated activities based on the source of the detection. The sensors should be potential free contact such as for example: button switches, magnetic 2429 8-SENSOR DECODER contacts, volumetric detectors, photoelectric devices, etc.
- Page 95 ACCESSORIES RELAYS - AUTOMATION Up to 1.000 relays can be connected to the same decoder bus to activate different devices in response to the activation of sensors or to activate them independently. The relays are managed using a relay decoder which has 8x2 ampere relays with NA and NC outputs. The relay decoder connects to the decoder bus from which it obtains its REF.2430 8-RELAY DECODER power supply.
- Page 96 CITYLINE MEMOKEY 2306 PROGRAMMING KEYPAD PRIVATE 6992 - CITYLINE PRIVATE READER 2336 PROXIMITY CARD WITH MAGNETIC STRIP 19,61 - MDS/CAC CITYLINE PROXIMITY READER - WIEGAND26-DATA/CLOCK CITYLINE 2337 BATTERY 12V/7A PROXIMITY READER 2338 RS-232 TO RS-485 ADAPTOR 6993 - CITYLINE BLUETOOTH READER...
- Page 97 NOTES 2011 Access control...
- Page 98 NOTES...
- Page 99 DESIGN Fermax Electrónica S.A.U. ACCESS CONTROL Edition. January 2012...
- Page 100 Audio and Video Door Entry Systems www.fermax.com export@fermax.com...
