Instruction Manual
Car 3.0 inch MP5 player
Model No.: XM-VRSU307

I. Basic Operations

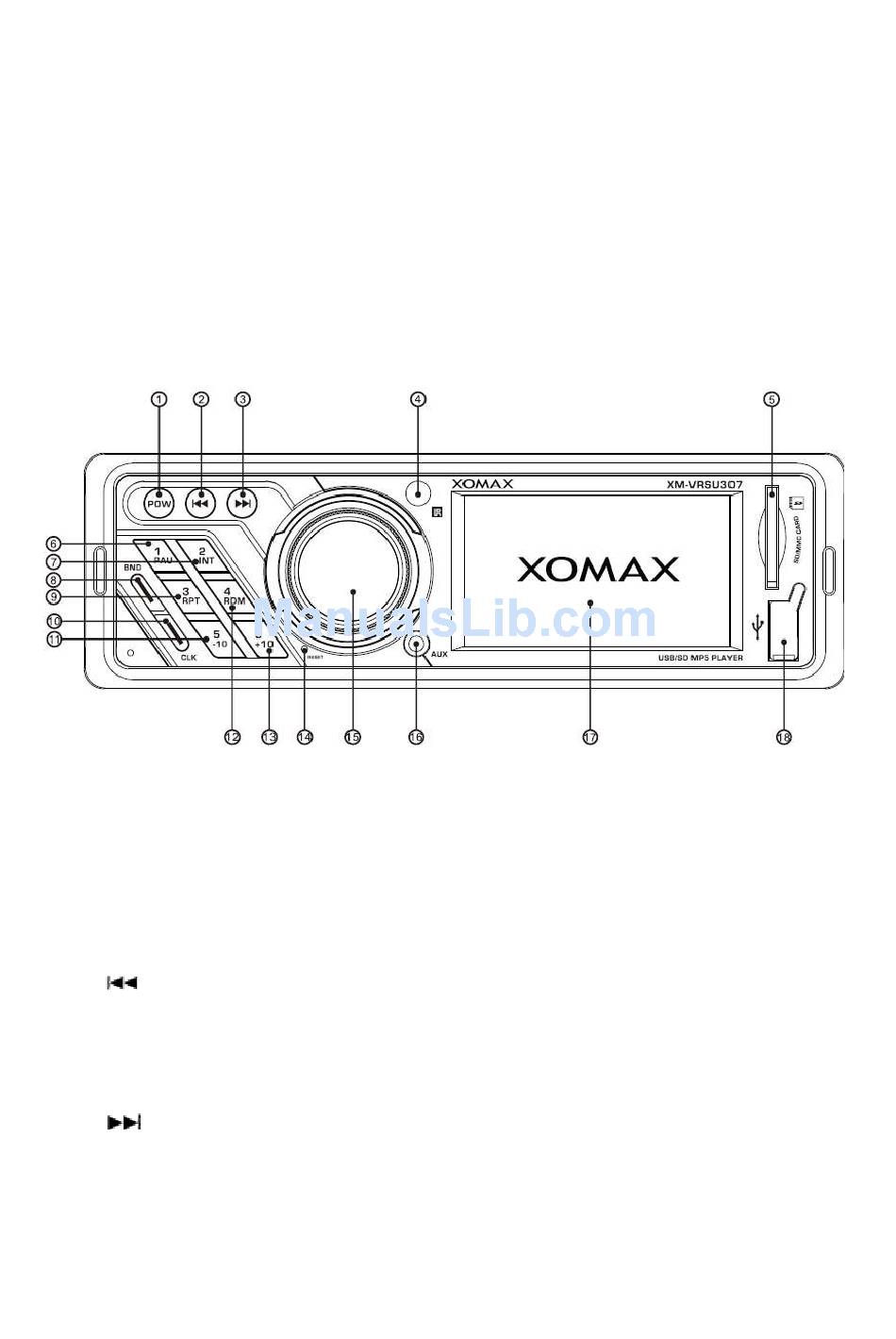

1. POW button
Under power off station, short press for power on.
Short
press
under
AUX—Radio—SD—USB (If the u disk and SD card are available, long press is
power off.
2.
button
Under the radio mode, short press to automatically search the stations backwardly,
long press is backwardly searching the states by hand. Under U disk and SD
displaying mode, short press to play last song, long press to backward displaying
quickly.
3.
button
Under the radio mode, short press to automatically search the stations forwardly, long
press to search the stations by hand forwardly. Under U disk and SD displaying mode,
short press to play next song, long press to forward displaying quickly.
4. Remote receiver
Receive the signal release from remote control.
working
state
can
change
the
playing
mode
:
