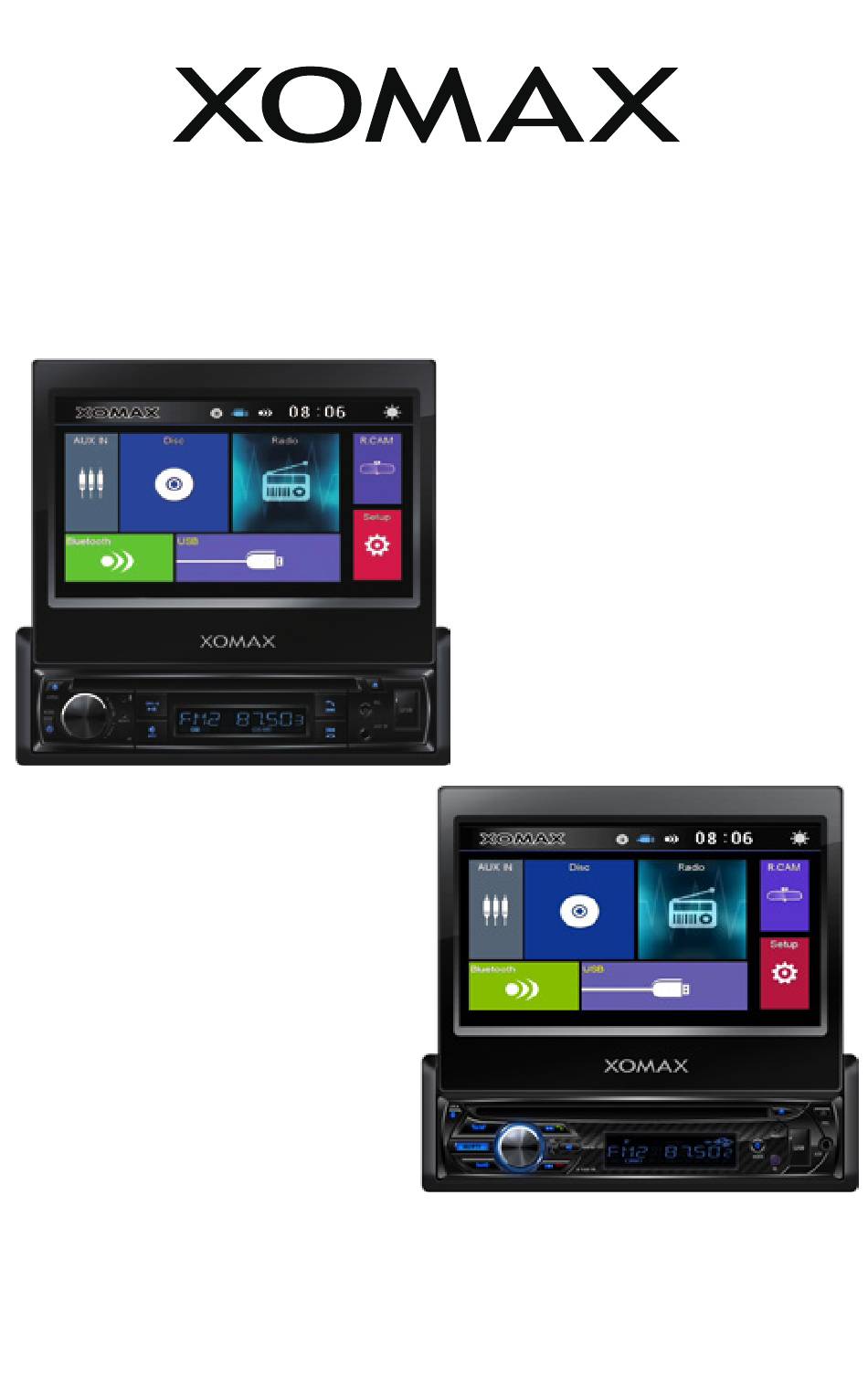

- Page 1 Instruction Manual MODEL: XM-D749 MODEL: XM-D750 1-Din Digital Multimeida Player 7” Motorized TFT Touch Screen AM/FM Receiver, USB , Bluetooth...
- Page 2 IMPORTANT: Do not operate this digital video player while the vehicle is moving. This is a safety feature to prevent driver distraction. It’s illegal in most country for the driver to view video while the vehicle is moving. The digital video functions will be only operated when vehicle is in park and the parking brake is engaged.
- Page 3 Copyright Notes: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 4: Wiring Connections
INSTALLATION: Dash Board Hex Nut Metal Mounting Strap Spring Washer Plain Washer Console Tapping Screw Slide Bracket Housing Hex Bolt Screwdriver Key Plate Plastic Trim Out Tabs Key Plate Wiring Connections: FUSE 10A Audio/Audio I/O Connections Speaker/Power Connections 1. Rear View Video input (Yellow) Gray: Front Right (+) Gray/Black: Front Right (-) 2. - Page 5 Wiring Connections: BLACK SWC - GND BROWN SWC - 1 BROWN / WHITE SWC - 2 YELLOW ORANGE REVERSE (+) PINK BLACK PARKING BRAKE (B-) GROUND ORANGE / BLACK BLUE ILLUMINATION (+) POWER ANTENNA GRAY WHITE FRONT LEFT FRONT RIGHT CHANNEL SPEAKER CHANNEL SPEAKER WHITE/BLACK...
- Page 6 Control Panel Buttons: 1. OPEN/ BUTTON Briefly press to slide the monitor out of slot. Repeatedly press this button to tilt up and down the monitor. Press and hold this button to slide the monitor inside of the slot. /MODE BUTTON In power off...
- Page 7 Control Panel Buttons: 7. MUTE ON/OFF, PTY(Program Types) In power on mode, press the MUTE button to toggle mute on or off. In radio mode, press and hold the PTY button, you can select specific stations of a certain program type such as News, Info, sports, Talk, Rock etc.. (PLAY/PAUSE) /CH 1-6 (PRESET RADIO STATION) In Disc/USB/BT music playback mode Press this button to pause playback, touch again to resume playback.
- Page 8 Control Panel Buttons: 14. TA(Traffic Announcement Settings)/AF(Alternative Frequencies), (For XM-750 Only) In Radio mode, briefly press the TA/AF button to toggle TA on or off. • ON: TA symbol will be displayed if this function is activated. In the TA mode, once a traffic message is received, the unit switches to the radio station from a different mode(e.
- Page 9 Remote controls: 6 & 17. In Disc/USB/BT music playback, press both buttons to skip next or previous track. In Radio mode, press each one to seek tuning down or up. Press and hold each one to manual tuning down or up. 8.
- Page 10 Setup Operations: Main Menu: In each mode, touch the icon to enter the main menu as below image. In the main menu screen, press the desired icon to enter each of the following settings : Radio, Disc(CD/VCD/DVD), USB, Bluetooth, AUX IN(AV IN), R.CAM(Rear View Camera), Setup.
- Page 11 Setup Operations: • Subwoofer On/Off: Enables or Disables the subwoofer output. • Key Lights: To preset the color of button illumination: Red, Green, Yellow, Blue, Purple, Cyan, White, Auto(color automatically change one by one). • Reversing Mute: Enables or Disables revsesing mute function. When enable this function, when user start up the reverse gear of vehicle, the unit will silence the audio output of this unit automatically.
- Page 12 Setup Operations: C. Video Settings Tap this item to set the aspect ratio and video parameter. • Aspect Ratio: 4:3 or 16:9 This is to select the appropriate TV aspect 4:3 or 16:9 according to the connected TV set. • Adjust(Video Parameter Settings) Tap this item to set the Brightness, Contrast, Hue, Saturation, Sharpness of this TFT screen.
- Page 13 Radio Operations: 1. Enter into the Home Page 2. Turn off the screen 3. Preset Stations Tap and hold one of preset station touch buttons to store the preset station. Tap one of preset station touch buttons to recall the preset station. 4.
- Page 14 DVD/CD/MP3/USB Operations: Insert DVD/CD Disc With the label facing up, insert a standard size DVD/CD disc into the disc slot. Playback will begin automatically. Eject DVD/CD Disc To eject a disc, first press the button to stop playback, then press the button on faceplate) or tap the icon on the touch sceen to eject the disc.
- Page 15 DVD/CD/MP3/USB Operations: - VCD Playback: 10 11 12 13 14 15 16 19 20 1. Enter into the Home Page 2. Turn off the screen 3. Current Media Type 4. Media Playback Information Display 5. Time 6. Return 7. Previous Track / Fast backward 8.
- Page 16 DVD/CD/MP3/USB Operations: - MP3 Disc/USB Playback: 12 13 1. Enter into the Home Page 2. Turn off the screen 3. Current Media Type 4. Media Playback Information Display 5. Time 6. Return to List of files 7. EQ Settings 8. Previous Track / Fast backward 9.
- Page 17 Before using a Bluetooth phone with this unit, the phone must be paired and connected. The Bluetooth signal of the unit will broadcast when the power is on. This digital video player will displayed as "XOMAX" on your phone. When prompted, enter the passcode "0000" on your phone. Once paired, the Bluetooth phone should automatically connect this unit whenever the unit is in range.
- Page 18 Technical Specifications: • Single DIN Size Universal Standard • Motorized Fold-Out Video Screen Display Panel • Power Output: 4 x 60 Watt (240 Max.) • 7-inch Wide Screen TFT Video Display • Pixel Resolution: 800 x 480 Pixels • Brightness: 400 Nits •...
