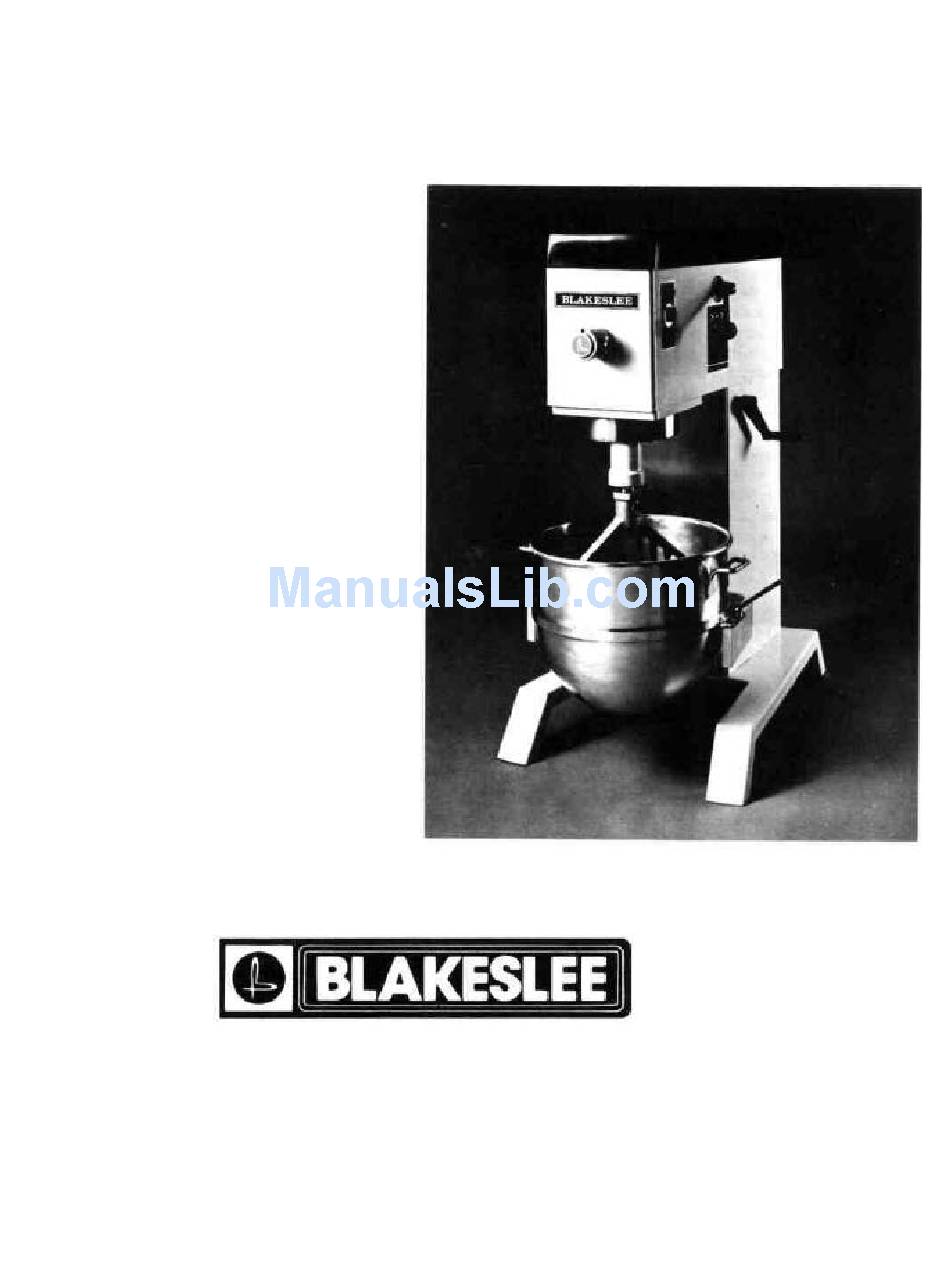

- Page 1 SERVICE/PARTS MANUAL ELECTRIC FOOD MIXERS MODELS DD-60 DD-80 BLAKESLEE BLAKESLEE 1844 South Laramie Avenue 66 Crockford Boulevard Chicago, IL 60804 Scarborough Ontario, Canada M1R 3C3 Phone: (708) 656-0660 Phone: (416) 751-2625...
- Page 2 INDEX GENERAL INFORMATION INSTALLATION INSTRUCTIONS DESIGN AND USE OF BEATERS, WHIPS AND OTHER ACCESSORIES MIXING INSTRUCTIONS MIXING BOWL CAPACITY CHART AVAILABLE BEATERS, WHIPS AND ACCESSORIES OPERATION PARTS SECTION - Follows page 15. IMPORTANT -- Please list your Model and Serial Number below: Model _______________________ Serial Number _______________ This information is required when ordering parts or requesting service information.
-
Page 3: General Information
The food service operator will also be able to save you labor during the cleaning process due to the smooth surfaces and the design of the Blakeslee mixer. Each beater, whip and attachment is engineered to perform specific jobs for you. The planetary action of Blakeslee Mixers (beater travels around the circumference of the bowl as it rotates) assures you of a perfectly blended mix every time. - Page 4 1. Place Mixer in correct location with proper clearance between wall and/or adjacent equipment. 2. Level machine with shims. 3. No bolting is required to the floor. 4. Connect electrical conduit to left side of machine. Check rotation of motor by arrow on planetary cover. Planetary shaft should rotate as shown.
- Page 5 DESIGN AND USE OF BEATERS, WHIPS & OTHER ACCESSORIES Each beater and whip has been designed to do a particular type of work. Use only that beater or whip for the work for which it was designed. For example: Never use a batter beater for mixing heavy doughs.
- Page 6 They are convenience Items, not capacity increasers. The best functioning of Blakeslee Mixers depends on leaving room for proper material aeration or manipulation. Use splash Covers or Extenders only for containing ingredients. They are efficient for their intended use, but if a Mixer is overloaded and a Splash Cover is used, aeration is reduced due to restriction in the area where air enters the mix.
-
Page 7: Mixing Instructions
MIXING INSTRUCTIONS Operators have their own pet ways of operating their mixing machines, so no attempt will be made to set up iron clad instructions, but there are certain general principles that should be followed in the various operations. These general principles as listed below should be helpful to old and new operators. - Page 8 Always operate the mixer on slow speed while adding dry ingredients. Many operators use the Blakeslee-Built bowl extension ring to help confine ingredients to the mixing bowl. Add dry ingredients alternately with liquid, staring and ending with dry ingredients.
- Page 9 MIXING DOUGH Always use the spiral dough hook for mixing heavy doughs. Do not overload the mixer with too large batches. (See the capacity chart of this booklet for capacities of the various size bowls.) When using the spiral dough hook, the mixing should be started at low speed only with the bowl in the lowest position; then as the mixing continues, the bowl should be gradually raised to its working position.
- Page 10 ELECTRICAL "Start-Stop" Push buttons are used to operate the mixer which are protected by rubber caps. There is a thermal overload device with automatic resetting for protection, internally mounted. On all machines over 250 volts primary, a transformer is supplied to reduce, voltage to the pilot circuit. A timer is available as an option which would shut off the machine in any speed after pre-set time has expired.
-
Page 11: Mixing Bowl Capacity Chart
Mixing Bowl Capacity Chart CAPACITY OF BOWL (Finished Materials) Smaller bowls used DD-60 DD -80 on 60 of 80 qt. machine 30 qt. 40 qt. 60 qt. 80 qt. KITCHEN MATERIALS Egg whites 1 1/2 qts. 1 1/2 qts. 2 qts. - Page 12 36 Ibs. Max. Cap @45% AR Another factor often overlooked is the ability of your mixer to operate at a higher speed. For example, the DD-60 has a 60 pound capacity of heavy bread dough with an AR of 50% in second speed. The batch could be mixed in third speed but the batch must be reduced by half to 30 pounds.
- Page 13 Your Blakeslee mixer is designed and intended to mix your products in the most efficient way possible. There is no need for you to sacrifice individual characteristics when using your Blakeslee mixer. Care should be taken during your batch mixing.
- Page 14 Available Beaters, Whips and Accessories CAP. PART NO. DESCRIPTION CAP. PART NO. Description BOWLS— Smaller bowls can be used on 50 or 80 Qt. Mixers "W" WIRE WHIPS-Part No. includes spindle. with Adaptor shown below. 30 QT. Steel Tinned 30 QT. M-0-98501 Stainless Steel 30 QT.
- Page 15 CAP. PART NO. DESCRIPTION CAP. PART NO. DESCRIPTION "SD" SWEET DOUGH BEATERS- SPLASH COVERS Part Nos. includes spindle. 30 QT. M-0-98520 Steel Tinned 30 QT. Stainless 40 QT. M-0-98516 Stainless 60 QT. M-0-98504 Steel Tinned 30 QT. M-0- 99491 Stainless Steel 60 QT.
- Page 16 & 1/8" Plate and Pusher M-0-20578 Pusher (Used w/tubular front only) ACCESSORIES FOR 60 & 80 QT. MEAT CHOPPER M-0-20595 Adjustable Slicer Plate 9" (FOR BOTH BLAKESLEE & UNIVERSAL HUBS) furnished w/Universal Hub vegetable slicer M-1-1904 End Plate, 1/4" Perforations OPTIONAL-EQUIPMENT FOR M-0-20581 SLICER M-1-1905 End Plate, 3/8"...
-
Page 17: Operation
In order for your mixer to perform at top efficiency at all times, it is necessary that you follow the recommendations as laid down by the designing engineers. Give your mixer the same attention you would give your automobile and your BLAKESLEE-BUILT Mixer will give you many years of satisfactory service. SPEED SELECTION Speed for the beater and auniliary attachments are varied by the use of a four speed transmission. - Page 18 FIGURE 1. COLUMN WELDMENT, UPPER HOUSING, MAIN SHAFT AND ELECTRICAL COMPONENTS...
- Page 19 Overload Thermal Relay-Range 97278 Label-on/off w/timer 2.5 to 3.9 97315 Label on/off without timer 97290 Overload Thermal Relay-Range 96858 Label, Blakeslee Logo 7.0 to 10 97779 Housing-Transmission Weldment 97292 Overload Thermal Relay-Range 97846 LG.H.SHCS 5/8-11 nc x 1-1/2"lg 10 to13 98399 Key 1/4 x 1/4x4"...
- Page 20 FIGURE 2. BOWL SUPPORT. BOWL SUPPORT CRANK AND BOWL LOCKDOWN ASSY...
- Page 21 FIGURE 2. BOWL SUPPORT, BOWL SUPPORT CRANK AND BOWL LOCKDOWN ASSY Item No. Part Description No. Reqd. ltem Part No. Description No. Reqd. 97799 POST 97811 BOWL, Clamp Handle 97798 RETAINER, Post 97795 SCREW, Elevator 97819 PLATE. Back-up SCREW. Allen 5/16-18 x 97846 CAPSCREW.Soc.Hd.
- Page 22 Itern Part No. Description Reqd. 97777 MOTOR BASE WELD'MT 98006 SUPPORT BRACKET WELD'MT 98011 SCREW. Hex. Hd. 1/2-13 x 1" lg.. 12838 WASHER. Flat 9/16 I.D. x 1-1/4" O.D. x 1/18" thk. 98012 SCREW, Hex. Kd. 1/2-13 x 3" lg. 98004 STOP BRACKET FIGURE 3.
- Page 23 ltem No. Part No. Description Item No. Part No. Description Reqd. Reqd. 97714 TRANSMISSION 08523 SEALING WASHER 97281 GEAR WHEEL 14082 ROLLER 70409 SWITCH MOUNTING PLATE 97284 70411 SWITCH MOUNTING PLATE SCREW. SET 70403 FLAT WASHER 98398 97836 ROLL PIN WASHER.
- Page 24 FIGURE 5. AUXILIARY HUB ASSY Item Part No. Description Part No. Description Reqd. Reqd. 98483 ADAPTOR, for Attachment 88379 ADAPTOR, Bearing Attachment 14784 BOLT. 5/16-18 x 3/4" Ig. 98377 HUB ATTACHMENT 05996 LOCKWASHER. 5/16 " 18761 DRIVE CAP, Auxillary 97817 WASHER 98015 SCREW ASSY.
- Page 25 FIGURE 6. LOWER PLANETARY AND BEARING HOUSING ASSY Item Part No. Description No. Reqd. ltem No. Part No. Description No. Reqd. 98349 LABEL DIRECTION ARROW 97700 BEARING HOUSING 97832 COVER WELDMENT 97831 GEAR PLANETARY 97779 TRANSMISSION HOUSING 97842 PINION WELDMENT 97809 SPACER 97848...
- Page 26 FIGURE 7. PLANETARY AND BEATER SHAFT ASSY Item Part No. Description No. Reqd. Item No. Part No. Description No. Reqd. 97849 CAP SCREW.Hex.Hd. 97850 BEARING. Ball 5/8-18 N.D.X 1-1/4" Ig. 97698 PLANETARY 98094 SETSCREW 97851 BEARING, Ball 97852 SEAL 97842 PINION 97857 98402...
- Page 27 WIRING DIAGRAM FOR 208-240/440-480 VOLT THREE PHASE 60 HZ. NOTES: 1. ALL CONTROL CIRCUIT WIRING IS #16 AWG. "RED" TYPE "A.W.M." OR "M.T.W." WIRE 600 VOLT. C. RATED. U/L & C.S.A. LISTED. 2. REFER TO SHOP NOTES #4 AND #5 ALSO. WIRING DIAGRAM FOR 115/230 VOLT SINGLE PHASE 60 HZ.
- Page 28 93 TRANSMISSION...
- Page 29 TRANSMISSION HOUSING ASSEMBLY Item Number Part Number DESCRIPTION Set - Spiral Bevel Gear & Pinion, includes items 2 & 3 97733 Gear - Spiral Bevel 97734 Pinion - Spiral Bevel Gear 73230 Seal 98402 97838 Ring - Retaining 97702 Support - Bevel Gear 7524 Lockwasher, 3/8 In.
