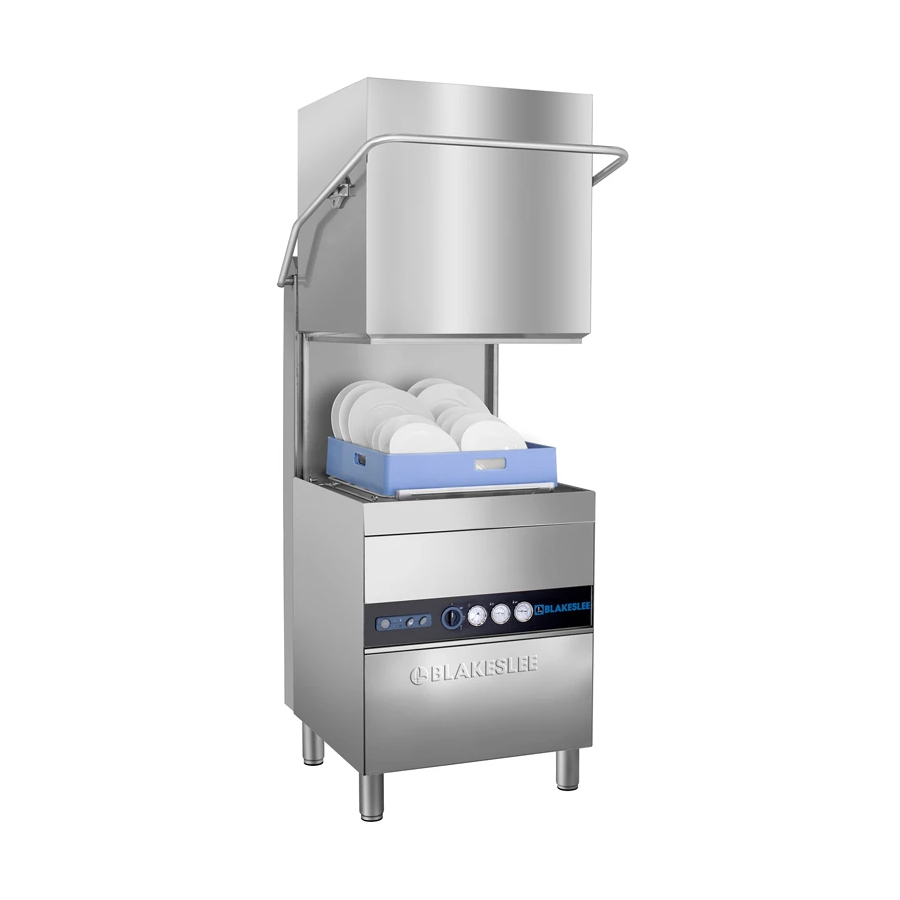

- Page 1 Istruzioni per l'installazione, l'uso e la manutenzione Instructions for Installation, Use and Maintenance HOOD-TYPE D-18 COD.: 3050E APPLICARE ETICHETTA Ed. 02 - 05/2016 MATRICOLA...
- Page 3 Thank you for choosing our appliance. The installation, use and maintenance instructions given in this manual have been prepared to ensure the long life and correct operation of your appliance. Follow these instructions carefully. We have designed and manufactured this appliance according to the latest technological developments.
-
Page 4: Table Of Contents
TRANSLATION OF THE ORIGINAL INSTRUCTION SUMMARY Page IMPORTANT INFORMATION 1. SERIAL NUMBER DATA INSTALLER SECTION 2. MACHINE INSTALLATION 2.1 Receiving the machine 2.2 Water connections 2.3 Electrical connection 2.4 Temperature adjustment 2.5 Rinse aid dispenser operation 3. DETERGENT DISPENSER INSTALLATION 3.1 Electrical connection 3.2 Water connection 3.3 Dispensing the detergent... -
Page 5: Important Information
IMPORTANT INFORMATION Always keep this instruction manual near the dishwasher for future consultation. If the appliance is sold or transferred to another User, make sure this manual always remains with the machine to enable the new owner to be informed about operation of the appliance and the relative warnings. The dishwasher shall be installed in accordance with local codes, or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA... - Page 6 switch located on the wall, which shall be installed by a professional installer. Shut the water supply valve(s). Disregarding the aforesaid prescriptions is a serious misuse and can cause damages and injures to property an people, and will relieve the manufacturer from whatever liability. • Under no circumstances should the user attempt to carry out repairs. Contact a qualified and authorized technician.
-
Page 7: Serial Number Data
1. SERIAL NUMBER DATA FAMIGLIA PRODOTTO PRODUCT FAMILY FAMILLE DU PRODUIT FAMILIA PRODUCTO FAMILIE DES PRODUKTES RoHS CODE DWXXXX FAMIGLIA PRODOTTO PRODUCT FAMILY FAMILLE DU PRODUIT Code DWXXXX.YYYY CL/Part FAMILIA PRODUCTO Model DESCRIPTION FAMILIE DES PRODUKTES S/N DWL10XXXXX Type ..CODE DWXXXX.YYYY CODICE MODELLO 400V 3N 50HZ... -
Page 8: Installer Section
INSTALLER SECTION ATTENTION: At the end of installation make sure to remove the parts of this booklet relevant to the installer, for future consultation. 2. MACHINE INSTALLATION 2.1 Receiving the machine After unpacking, make sure the machine has not been damaged during transportation. If so, do notify the seller immediately about the problem. If the damage might question the machine safety, do not install it. Double check the firm tightness of all hose-clamps on piping, nuts, bolts and electrical connection that might have come loose during transportation, to prevent water dripping leakages, or other damages, during the machine operation. See chap. 8 for disposing the packing material. 2.2 Water connections Connect the machine's water supply with an interrupt valve capable of quickly and completely shutting off water intake. -
Page 9: Electrical Connection
INSTALLER SECTION 2.3 Electrical connection The electrical connection must be made according to current technical standards. Ensure that the mains voltage corresponds to the value given on the machine dataplate. Install a suitable omnipolar thermal magnetic circuit breaker, dimensioned according to absorption, with opening contact, in according to current standards. This circuit breaker must be exclusively used for this purpose and installed in the immediate vicinity. The machine must be turned off with this switch. Make sure that the electrical systems are suitably earthed. On the back of the appliance there is a terminal marked with the symbol which is provided for equipotential connection between different appliances. The special dataplate gives the max. power value in watts (W), amperes (A) and fuse, for... - Page 10 INSTALLER SECTION 10805 10805 10805 code 10799 10807 10806 PROBLEMS CAUSES AND SOLUTIONS Water exits from the rinse aid suction tube The suction valves 10805 and delivery do not seal due to foreign bodies in the closing seats. Clean the valves 10805, check that the rinse aid suction filter is present, and filter the water entering the dishwashwer The dispenser does not draw rinse aid a) The delivery valve 10805 does not seal due to foreign bodies in the closing seats. Clean the valve 10805, check that the rinse aid suction filter is present and filter the water entering the dishwasher b) The piston seal 10806 does not hold because it is damaged. Replace the seal 10806 with an original c) Check the diaphragm 10807 page 25...
-
Page 11: Detergent Dispenser Installation
INSTALLER SECTION 3. DETERGENT DISPENSER INSTALLATION 3.1 Electrical connection Follow the wiring diagram attached to the machine. 3.2 Water connection a) Remove the cap from the hole and fit the delivery connection. b) Correctly mount the injector C using the appropriate fixtures. c) Connect the suction tube to the suction attachment of the dispenser (see pict. 4 - point A). d) Connect the delivery tube to the other attachment of the dispenser, and the delivery fitting (see pict. 4 point B). e) Insert the suction tube with filter in the detergent tank. f) Prime the detergent and proceed to dispense. 3.3 Dispensing the detergent The detergent dispenser capacity can be adjusted using a screwdriver as shown in picture 3. Every (2 cm) of product drawn into the tube corresponds to cubic inches (0,25 cm³) equivalent to 0,01... -
Page 12: User Section
USER SECTION 5. CONTROL PANEL AND RELATIVE SYMBOLS CONTROLS INDICATORS Cycle indicator Boiler thermometer Cycle time selector 0= off Tank thermometer = loading only 1= 120s 2= 180s (NSF) Manual-automatic draining button (optional) 6. OPERATION • Insert the overflow pipe in the special seat inside the tank. Make sure all the filters are properly fitted in their seats. The filters must be cleaned every 40-50 wash cycles and whenever necessary. Do not operate the machine without filters, and in particular the pump suction filters. • Open the water valve. • Turn on the main wall switch and put the selector on (it is not a total disconnecting switch). • Insert the special green rinse aid dispenser tube in the liquid rinse aid container and check that the quantity is sufficient for the daily requirement. -
Page 13: Detergent Use
USER SECTION Note the following recommendations: • Crockery and cutlery should not be inserted inside one another, covering each other. • Place the crockery in order to all surfaces can be reached by water; otherwise the dishes are not washed. • Make sure all the crockery are in a stable position and that the hollow containers don't overturn (cups, glasses, bowls, etc.) . • Place in the rack all the hollow containers such as cups, glass, etc. upside-down. • Place the crockery with deep hollow with upper face downwards, so that water can fl ow out. • Make sure the smaller crockery do not fall from the rack. • Check all the wash arms runs freely and they are not blocked by too tall or too prominent crockery. Eventually, run a manual rotation of the arms to check it. Some foods, such as carrots, tomatoes, and others, may contain some natural dyes substances, that in large amounts, can alter the crockery and plastic parts colors. Any discoloration does not mean that the plastic is not heat resistant. -
Page 14: Compliance With Hygiene Regulations, H.a.c.c.p. And Nsf
USER SECTION 6.4 Compliance with hygiene regulations, H.A.C.C.P. and NSF • The machines are equipped with a temperature indicator to indicate the boiler and tank temperature. Wait until the set temperatures are fully reached: at least 160°F for the washing tub and 185°F for the rinse. Verify that the pressure of the rinsing is between 15 and 25 Psi. • Remove solids form the crockery, not clog filters, nozzles and pipes. • Drain the wash tanks and clean the filters at least twice a day. • Check that detergent and rinse aid dosing is correct (as recommended by the supplier). Before starting the machine make sure the amount of chemicals in the tanks is sufficient for the daily requirement. • Keep the tables surfaces clean. • Remove the basket from the machine with clean hands or gloves, not to contaminate the cutlery. • Do not dry or polish the crockery with unsterile cloths, brushes or rags. 6.5 Drain pump (optional) To empty the tank: remove the overflow and leave the hood open, then press the key 6 to start the automatic total emptying time. For another load, insert the overflow and switch the machine on again. During the wash-rinse cycle the excess water is automatically discharged. -
Page 15: The Environment
USER SECTION 8. THE ENVIRONMENT 8.1 Packing The packing consists of the following: • a wooden pallet • a nylon (LDPE) bag • a multilayer cardboard box • polystyrene foam (PS) • polypropylene (PP) straps. Please dispose of the materials listed above, according to the current regulations. 8.2 Disposal The machine must be disposed of according to current regulations: contact the Municipalized Firm responsible for collection of urban solid waste. -
Page 16: Troubleshooting
USER SECTION 10. TROUBLESHOOTING Type of problem Possible causes Cure The machine does not Main switch not ON. Turn switch ON. turn on The machine does not Water valve shut. Open the water valve. load water. The spray arm nozzles or the Clean the rinsing arm nozzles, the pipes and the filter. Check solenoid filter are clogged and/or that the water hardness is <10°f. Equip the machine with...
