RF-Link AWV9600 Manual

Wireless Baby Monitor
Features:
1. Crisp picture and voice quality.
2. Handset size monitor, suitable for hand-held, pocket, or stationary display.
3. Power save mode by turning video off when only voice monitoring is needed.
4. Use 2.4GHz ISM band for RF transmission.
5. Battery for 3 hours audio/video operation, or 5 hours voice only operation.
6. Receiver can output to TV or VCR.
7. Other applications include security surveillance, activity monitoring, etc.

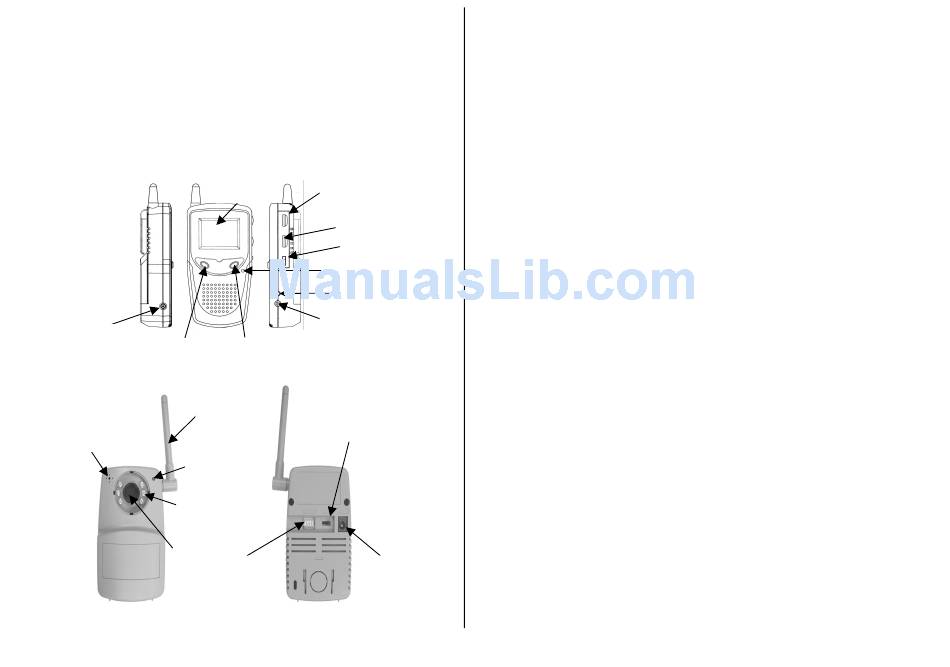

Receiver
Power port
Display On/Off
Camera
Antenna
Microphone
Power Indicator
LED
Lens
Channel selector
Display Brightness
Volume
Channel Selector
Status Indicator
Ear Phone
Line Out
Power On/Off
Power On/Off
Power port
How to use:
1.) Identify the following parts:
a.) Wireless Camera unit
b.) Wireless Receiver unit
c.) Two power adapters
(Input: either AC120V/60Hz for US or AC230V/50Hz for Europe)
d.) Ear Phone - RCA cable
e.) This Instruction
2.) The necessary steps for wireless camera:
a.) Plug the adapter into the power port.
b.) Turn on the power with the power on/off switch.
c.) Select any one of the channels with Channel selector.
3.) The necessary steps for wireless receiver:
a.) Plug the adapter into the power port or put in 3 units of AA
battery.
b.) Push power on/off button to turn on the power.
c.) Set the channel same as the one on the camera.
d.) Adjust the volume control.
e.) Display on/off button for full function or power save
purpose.
DOC0000-0202
