- Page 1 RF-Link 2.4GHz Digital Wireless Color Security/Baby Monitor Model: ABM-4161 User's Manual 1 ...
-
Page 2: Package Content

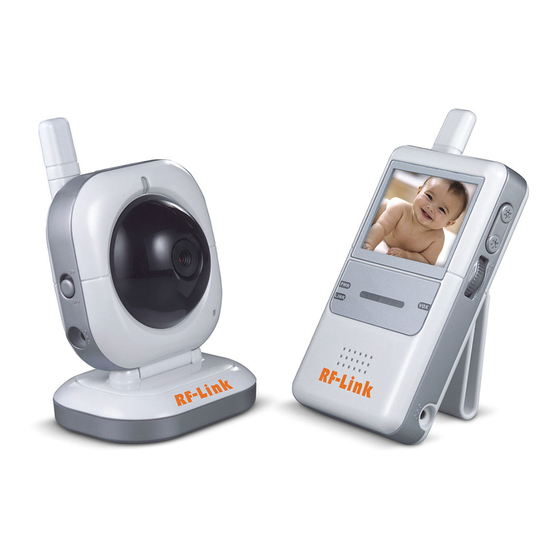

Package Content Camera x 1 Monitor x 1 Power Adapters x 2 Battery for Monitor ( 3.7V 1000mAH Li-ion ) x 1 User's Manual x 1 Figures and Quick Guide Product Layout Monitor (Fig. 1) 1. LCD screen 2. Antenna 3. - Page 3 Camera (Fig. 2) 1. Antenna 2. Power indicator LED 3. Infrared LEDs 4. Lens 5. Supporting stand 6. Night-light button 7. Night-light 8. Microphone 9. Battery compartment 10. Power ON / OFF switch 11. Power adapter socket ...
-
Page 4: Camera Setup
Set Up Camera Setup Power Supply Loading the Batteries (See Fig. 3) 1. Loosen the screw on the bottom of the camera by using a screw driver. (Step 1) 2. Open the battery compartment cover. (Step 2) 3. Insert 4 AAA-size batteries (follow the plus (+) and minus (-) signs inside the battery compartment). (Step 3) Note : The camera uses either 4 AAA batteries (alkaline battery recommended) or AC power current. - Page 5 1.2 Fine Tuning (See Fig. 5) Place the camera in a convenient location, point the lens towards the observation area and adjust the angle by rotating the lens head. 1.3 Night light (See Fig. 6) Press the night light button, the night light LEDs will remain ON. ...
-
Page 6: Night Vision
1.4 Night vision The camera has nine high-intensity LEDs for picking up clear images in the dark. When the built-in photo sensor detects low ambient light levels, the LEDs will automatically activate. Monitor Setup 2.1 Power Supply Loading the Battery (See Fig.7) 1. - Page 7 Note 3: "OUT OF RANGE" would be displayed on the LCD screen if the monitor is exceeds the range. (See Fig. 9) 2.2 Brightness Setting (See Fig. 10) Adjust the Brightness selection button to adjust brightness. 2.3 VOX (voice-operated transmission) Function (See Fig. 11) 1.
-
Page 8: Troubleshooting
Troubleshooting You don't get a signal at all • Make sure the camera and the monitor are turned on. • Make sure the power plugs are pushed all the way in. • If the camera/monitor is powered by batteries, replace all batteries with new ones. If the signal is poor, or there is interference •... - Page 9 • Do not attempt to open the case. Non-expert handling of the device may damage the system. • Avoid dropping or strong shocks. • Operate this product using only with the power supply included or provided as an accessory. • Do not overload electrical outlets or extension cords this can result in fire or electric shocks.
