Smart Home Phone
Scorpion
Quick Start Reference
Manual
Minimum Requirements
Telephone connection (for making telephone calls)
AC power connection
ZoomTown Internet access (cable/DSL for accessing Scorpion
features)
Broadband router with an available LAN port

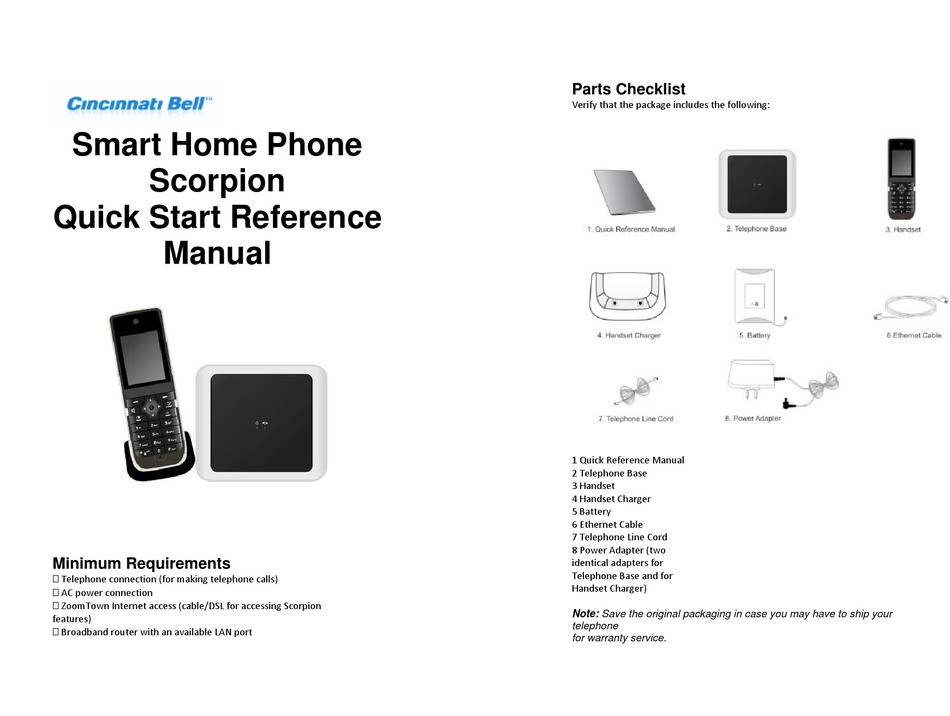

Parts Checklist
Verify that the package includes the following:
1 Quick Reference Manual
2 Telephone Base
3 Handset
4 Handset Charger
5 Battery
6 Ethernet Cable
7 Telephone Line Cord
8 Power Adapter (two
identical adapters for
Telephone Base and for
Handset Charger)
Note: Save the original packaging in case you may have to ship your
telephone
for warranty service.
