Page 1: User Manual
E L E K T R O A K U S T Y K A E L E K T R O A K U S T Y K A USER MANUAL OF INDUCTION LOOP AMPLIFIER TYPE: WPI - 1000... - Page 2 Before using the device, to avoid any complications, you should consult this user manual. Please observe the warnings and guidelines on the unit and the recommendations contained in the manual. RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN AVIS: RISQE DE CHOC ELECTRIQUE ! NE PAS OUVRIR !
- Page 3 Below mentioned, efficient and in a good condition device is given to the buyer on …………..according to the rules stated in articles no 577-582 of the Penal Code. Rduch Elektoakustyka gives the buyer a guarantee on the proper working device for 36 months.

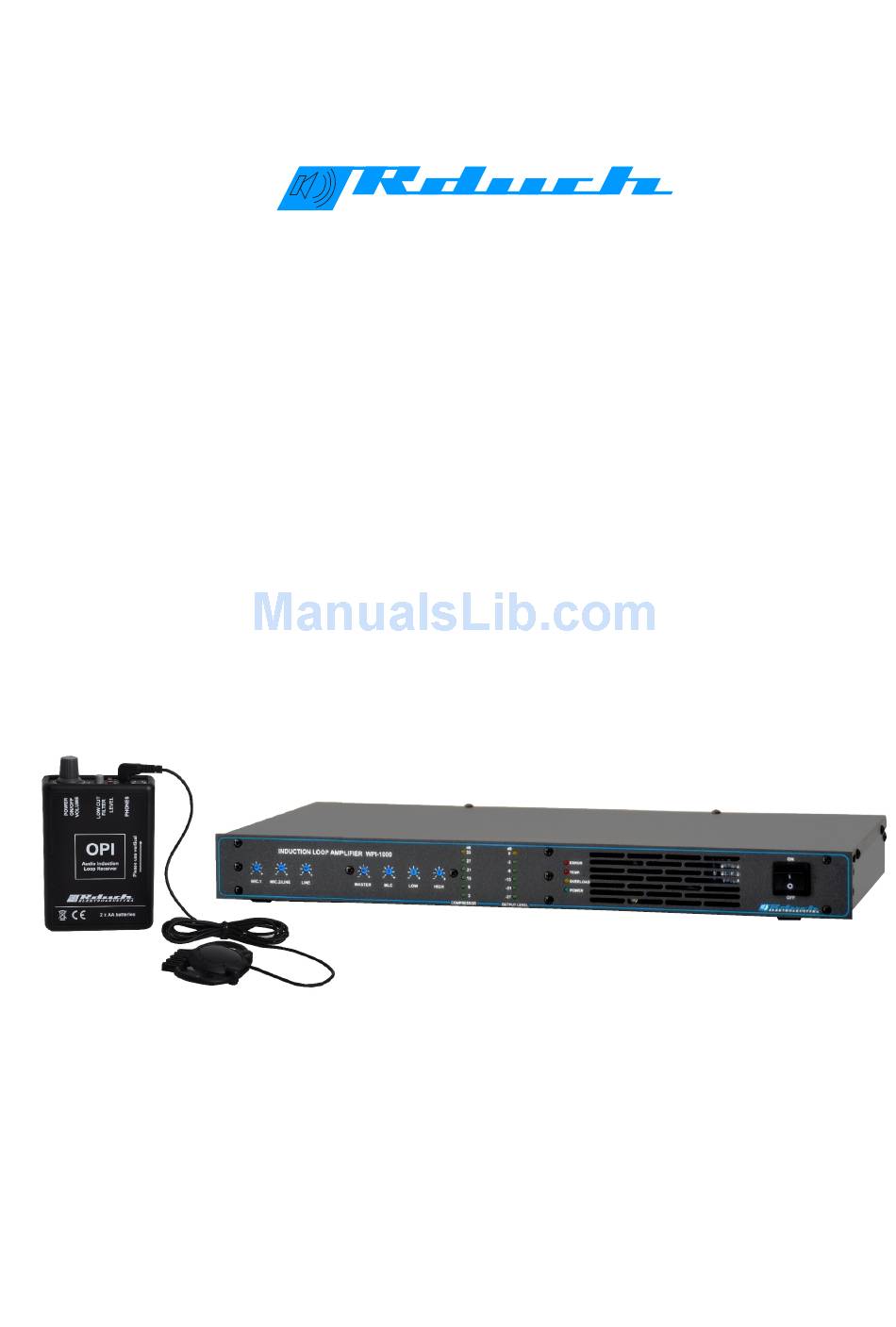

- Page 4 2. Application and general comments. Modern loop amplifier of type WPI - 1000 is used to amplify sacral buildings, conference rooms, tv rooms, etc. It is used to transmit an acoustic signal through a special loop made with a wire. Signal reception of the loop is done via a wireless receiver OPI connected with headphones or through hearing aids from hearing impaired people.
- Page 5 3. Technical data. * input audio 1 x mic XLR, 1x mic/line XLR, 1 x line Jack * maximum loop area 350 - 1300 m (depends on the losses in the metal) * the maximum length of the loop wire 230m * loop impedance 0,5 - 3...
- Page 6 LOOP INSERT LINE CONTROL OUTPUT Mic. Line LOOP CABLE MIC.2/LINE MIC.1 RESISTANCE 0,5W to 3W RESISTANCE 0,5W to 3W 100mA 19 20 19 20 16.5 View of the back WPI-1000 15- loop connection socket 16- control socket - closed contacts indicate proper operation 16.5- output ±15V DC 100mA 17- INSERT socket - is used to connect additional devices, and to connect in parallel two loops 18- jack input socket for line 3...
- Page 7 6. Installation of the loop and amplifier WPI 1000. Induction loop should be made with a wire with a thickness of 1 to 2.5 mm2. The maximum loop area is 1300 m2, with a maximum dimension of the short side may not exceed 30m. The Loop installing-height should not exceed 1 m above the ground.
- Page 8 . 0 3 2 / 4 7 - 5 1 - 8 0 3 d o 5 t e l . 0 3 2 / 4 7 - 5 1 - 8 0 3 d o 5 www.rduch.com.pl www.naglosnienia.com.pl...
