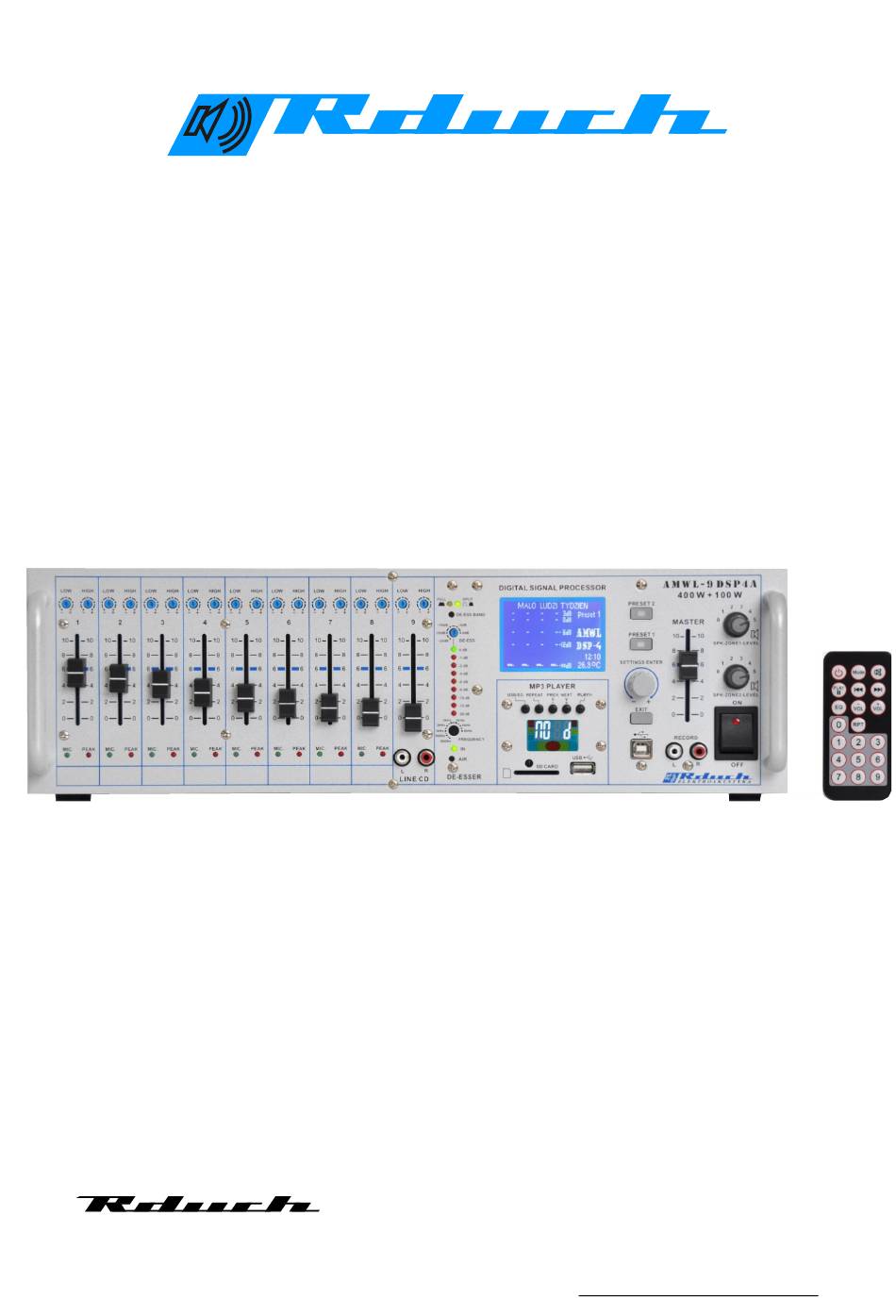

AUTOMATICALLY AMPLIFIERS
E L E K T R O A K U S T Y K A
E L E K T R O A K U S T Y K A
J a n R d u c h
J a n R d u c h
4 4 - 3 4 0 G o d ó w , ul . 1 M a j a 1 9 6
4 4 - 3 4 0 G o d ó w , ul . 1 M a j a 1 9 6
t e l . 03 2 / 47 - 5 1 - 8 0 3 d o 5
t e l . 03 2 / 47 - 5 1 - 8 0 3 d o 5
E L E K T R O A K U S T Y K A
E L E K T R O A K U S T Y K A
INSTRUCTION OF
TYPE:
AMWL-DSP4A
AMWLC-DSP4A
AMWL-9DSP4A/400
AMWL-9DSP4A/600
AMWL-9DSP4A/400+100
AMWLC-9DSP4A/400
AMWLC-9DSP4A/600
AMWLC-9DSP4A/400+100
www.rduch.com.pl
www.naglosnienia.com.pl
www.naglosnienia.eu
e-mail: biuro@naglosnienia.com.pl
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rduch AMWL-DSP4A Series
Summary of Contents for Rduch AMWL-DSP4A Series
- Page 1 AMWLC-9DSP4A/400 AMWLC-9DSP4A/600 AMWLC-9DSP4A/400+100 www.rduch.com.pl E L E K T R O A K U S T Y K A E L E K T R O A K U S T Y K A J a n R d u c h J a n R d u c h www.naglosnienia.com.pl...
- Page 2 1. Clues for users - Before putting the amplifier to the 230V currency, please read the following instruction. - Doing any unknown service to the device by any unauthorized persons makes the depriving of guarantee and can be the cause of the worsening of technical parameters and the safety of using. - ATTENTION! The device must be supplied from the plug-in socket with the safety circuit connected ( socket with grounding wheel).

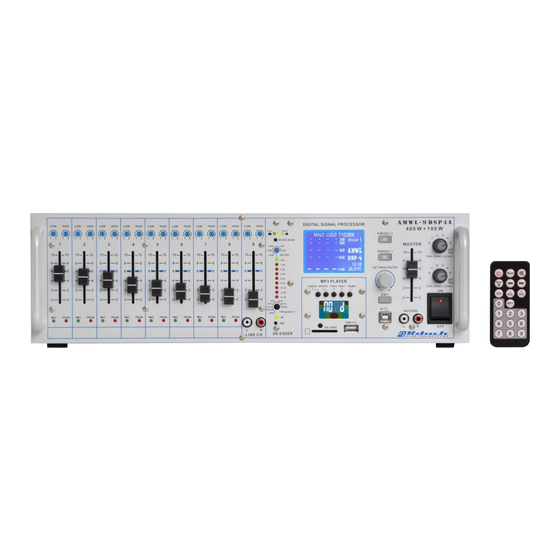

- Page 3 The view of the front board of the AMWL-DSPA amplifier. 1- a diode signaling the activity of the particular microphone channels 2- a diode signaling the transposition of a certain microphone channel 3- gain potentiometer in microphone channels 4- gain potentiometer of LINE channel 5- Cinch socket for the external sound source to be plugged in 6- FULL mode switch (full range) or SPLIT (partial band) 7- potentiometer for adjustment damping values...
- Page 4 Mode selection USB/SD,MMC On/off Mute Play,pause Play next/ previous file EQ presets EQ1-6 E1-6 Volume Control Repeat play quick file selection Remote control (mp3-player) 31- 230 V ~/ 50 Hz power socket 32- switch ground connection 33- XLR socket - DSP output OUT 4 (1-4) 34- XLR socket - 0dB outputbbefor DSP &...
- Page 5 Amplifier's menu control. After amplifier's connection to 230V currency by a given cable and power input (switch no 12), (no 15) on the display, Our company's logo appears, and after several seconds, there is a given screen. c.d. Preset name preset name FEW PEOPLE WEEK...
- Page 6 Equalizer part EQ. Input EQ Input EQ 1 Preset 1 ENTER EQ IN IN 1 NG LIM1 filter type choice PeakingEQ, IN 2 LIM2 PeakingEQ Punkt 1 LoSh6, LoSh12, 28Hz 0.05oct 0.0dB HiSh6, HiSh12 gain attenuation choice of one from filtrer width setting frequancy ten equalizer’s points...
- Page 7 Elimanator part. output choice ( on which output the eliminator is to be off) FB Suppressor preset 1 FB Suppressor EQ 1 DLY OUT1 Select out ENTER Output 1 decoupling eliminator method choice EQ 2 OUT2 Method phase shifter ( adaptive, phase shifter) EQ 3 OUT3 Frequency...
- Page 8 (CDM2.04.16.exe)- also need to be installed III. After dotnet35fx.exe installation MWL Easy program can be installed Installation file is in Rduch MWLEasyMgr 2.0 Install/Setup.exe IV. After the program installation, it should work automatically. V. After switching the amplifier on , program automatically detects port, where the device is installed.
- Page 9 settings part particular parts of settings place to open “Settings panel” To record the project to the file, the option "Record the project” (Ctrl+S) in menu "file" should be chosen. “Limiter” fold. handwheel to set attack time place to record the edge value (dB) choice field the edge value (dB)
- Page 10 Crossover part - is created for ordering the output no 4 to input no 1 or no 2. menu “Options” - language - language choice (Polish, English) “Gain part”. gain regulation of outputs 1 - 4. place to record the values (dB) “No 1 output equalizer”...
- Page 11 “delay” part delay adjustment for particular outputs (0m 170m) ÷ place to record the delay values “Eliminator” part eliminator’s decoupling method choice frequency choice for phase shifter method output choice, it means, on which output the eliminator is to be turn on “Subwoofer”...
- Page 12 6. Menu s tructure of MWL Easy Manager program MENU MWL Easy Manager FILE NEW PROJECT Ctrl+N OPEN PROJECT Ctrl+O SAVE PROJECT Ctrl+S SAVE AS... PRINT Ctrl+P CLOSE EXIT Alt+F4 COMMUNICATION CONNECT Ctrl+Shift+C DISCONNECT SAVE THE SETTINGS OPTIONS POLISH LANGUAGE ENGLISH PRESETS PRESET’S NAME...
- Page 13 8. Priorities settings Programmer nr 1 - default settings: all switches (1-8) in the 7. Priority settings. top position (OFF). Switching any of the eight switches to the bottom position (ON) turns off the automatic in each channel. This is useful if you want to use one channel as a linear channel (music).
- Page 14 ower configuration (pict. 4) shows the situation for three microphones, where each of them has the priority to two ones left. In such a configuration, the priority goes to that microphone which is activated as the first one. So, when he speech to tsomebody starts speaking to microphone no 2, the microphones no 1 and 3 are not active till the end of the microphone no 2.
- Page 15 10. AMWLC-9DSP4A amplifiers. Each microphone channel of AMWLC-9DSP4A amplifiers is additionaly equipped with Compresor-Expander. Practically, compresor-expander allows to reach the fixed volume level independently of the input signal level. Compresor - expander parameters settings are fixed with switches and potentiometers that are located in the upper cover of the amplifier.
- Page 16 AMWL-9DSP amplifier operation in the sound system. 12. AMWL-9DSP amplifier operation in the sound system.
- Page 17 14. Technical data AMWL - 9 D SP4 AMWL-9DSP4A 400W, 600W, 400W+100W Output power (sinus) Microphone inputs, symmetrical and electronic inputs XLR: 1-8 - MIC/LINE switch - MIC sensitivity control -40dB -15dB - LINE sensitivity control -15dB +5dB - impedance 1,6 kÙ...
- Page 18 RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN AVIS: RISQE DE CHOC ELECTRIQUE ! NE PAS OUVRIR ! UWAGA RYZYKO PORA¯ENIA PR¥DEM RYZYKO PORA¯ENIA PR¥DEM NIE OTWIERAÆ NIE OTWIERAÆ RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN UWAGA...
- Page 19 Control card (Noise generator) control INPUT 0 dB Pre Master Date ......INPUT 0 dB Post Master Microphone – linear input Typ ......Linear input Number ......Recording Power output ( 40W, 8W, 50V, 70V, 100V) 100 Hz filter Delay regulation Feedback eliminator regulation Zone regulation Compressor –...
-
Page 20: Operating Conditions
Below mentioned, efficient and in a good condition device is given to the buyer on …………..according to the rules stated in articles no 577-582 of the Penal Code. Rduch Elektoakustyka gives the buyer a guarantee on the proper working device for 36 months.
