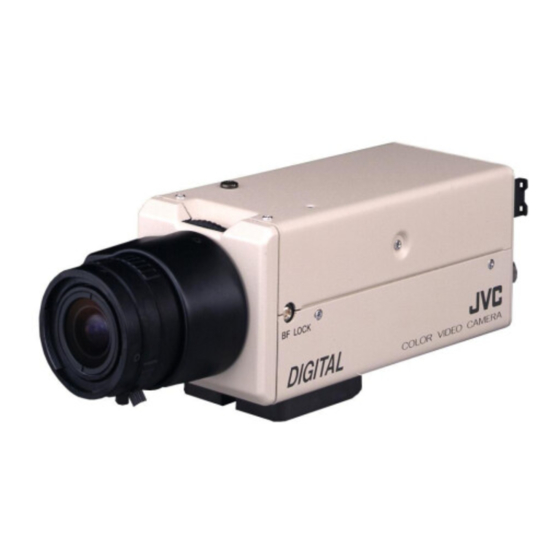

JVC TK-C750 Instruction Manual

®
For Customer Use:
TK-C750/TK-C751
These instructions are for TK-C750U, TK-C750E and TK-C751EG

IMPORTANT SAFEGUARDS

1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall,
causing serious injury to a child or adult, and serious damage to the appliance may fall,
causing serious injury to a child or adult, and serious damage to the appliance.
Use only with a cart or stand recommended by the manufacturer, or sold with the appliance.
Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting
kit approved by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart combination to overturn.
8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to
insure reliable operation of the appliance and to protect it from overheating, these openings
must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa,
rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This
appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power supplied to your home, consult your dealer or local power company. For appliance
designed to operate from battery power, refer to the operating instructions.
10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a third (grounding) pin). This plug
will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the
outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.
11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
12. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by
persons walking on it.
13. Follow all warnings and instructions marked on the appliance.
14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
15. Never push objects of any kind into his appliance through cabinet slots as they mat touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.
16. Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
17. Unplug his appliance from the wall outlet and refer servicing to qualified service personnel under following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the appliance.
c. If the appliance has been exposed to rain or water.
d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions as improper adjustment of other controls may result in damage and
will often require extensive work by a qualified technician to restore the appliance to normal operation.
e. If the appliance has been dropped or the cabinet has been damaged.
f. When the appliance exhibits a distinct change in performance - this indicates a need for service.
18. When replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
19. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety
checks to determine that the appliance is in safe operating condition.
For USA and CANADA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
A
C
IRIS
L H
LEVEL
COLOR VIDEO CAMERA
E
IRIS
L H
LEVEL
COLOR VIDEO CAMERA
MAX.
7
mm
COLOR VIDEO CAMERA
Enter below the Serial No. which is located on the body.
Retain this information for future reference.
Model No.
Serial No.
The lightning flash with arrowhead symbol,
within an equi-lateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's en-
closure that may be of sufficient magnitude
to constitute a risk of electric shock to per-
sons.
The exclamation point within an equilateral tri-
angle is intended to alert the user to the pres-
ence of important operating and maintenance
(servicing) instructions in the literature ac-
companying the appliance.
B
(b)
D
F
4mm
(f)
TK-C750
6mm
IRIS
L H
LEVEL
2mm
VID EO OU
TK-C751
COLOR VIDEO CAMERA
Thank you for purchasing the JVC color video camera.
To obtain the best results from your new camera, read these instructions carefully before use;
retain the manual for future reference.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOIS-
TURE.
Information for USA
This device complies with Part 15 of the FCC Rules.
Changes or modifications not approved by JVC could void the user's authority to operate the equipment.
INFORMATION (FOR CANADA) RENSEIGNEMENT (POUR LE CANADA)
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
PRECAUTIONS
• This unit incorporates the AGC (Auto Gain Control) function, which increases the sensitivity
automatically in dark places. It is not a malfunction when the image looks grainy in dark conditions.
PORTABLE CART WARNING
• Before mounting the camera, first mount the lens to be used with the camera, and then operate
(symbol provided by RETAC)
it in order to check the back focus.
• If a high-intensity object (such as a lamp) is in shot, the image on the screen may have vertical
lines (smear) or blur (blooming) at its periphery (especially in AES mode). This is a characteristic
of the CCD, and is not a defect.
• If an EE lens is used, set the automatic electronic shutter switch (AES) to OFF. If set to ON,
flickering may occur. If a manual iris lens is used, set the AES to ON.
• When used in hot places, vertical lines may appear on the screen of this camera. This is a
S3125A
characteristic of the CCD and not a failure of the camera.
• The automatic tracking system may not function properly when shooting with non-standard
lighting or lighting with a color temperature which exceeds the capability of the camera.
• If the camera subject is a single solid color (other than white), the auto white circuit will normally
attempt to change this color to white. In the case of this camera, if it cannot make a correct
prediction, the previous white balance setting will be maintained until the subject colors become
more varied.
• This unit assumes that the light source being used is either natural lighting (sunlight) or
incandescent lamps (color temperature 2300 K-10000 K). Under special light sources, such as
sodium lamps, colors may appear different compared to what is visible to the eye.
• Noise may appear in the picture and/or the colors may be incorrect if the camera is used near a
radio or television transmitting antenna, in places where strong electromagnetic waves are
generated by transformers, motors, etc., or near devices emitting radio waves, such as
transceivers or cellular phones.
• This unit accepts only a DC iris lens.
• To save energy, be sure to turn off the system when not in use.
MOUNTING A LENS
1. Before mounting a lens, check whether it is a C-mount or CS-mount lens.
If a C-Mount lens is used, loosen the back-focus locking screw (M 2.6) using a Phillips
head screwdriver, turn the back-focus adjusting ring with your fingers or the screw-
driver and change the mounting method.
2. Dimension (b) of the lens shown in the illustration must be as shown in the table
below. If (b) exceeds the value in the table, it may damage the inside of the camera
or correct mounting may be impossible; never use such lenses. Do not attach a C-
mount lens when using the CS-mount.
Lens
C mount lens
CS mount lens
The F mark indicates a focal point.
3. Mount the DC IRIS lens on the camera by turning the lens clockwise. Adjust its
position.
4. If the lens has an auto-iris mechanism, connect the lens cable after checking the pin
assignment.
Lens
Pin No.
1
2
3
4
*4 pin plug, service part number: SCV2859-001
For details, please consult your JVC dealer.
F
CONNECTION
1. When the camera is powered, the POWER LED lights up.
CAMERA type
TK-C750U
TK-C750E
TK-C751EG
(c)
EG only
When you use this camera, the socket - outlet must be installed near the equip-
ment to make disconnect on easily.
(d)
2. Connect to a video monitor, etc. (75 1)
3. When mounting the camera on a fixer, pan/tilt, etc., use the camera mounting screw
hole (d) located on the camera-mounting bracket.
CAUTION: Use a screw shorter in length than 7mm from the camera-mounting
face.
Furthermore, make use of the rotation prevention holes (e) to prevent the camera
from falling and be sure to mount the camera securely.
Special precautions must be taken when mounting the camera on a wall or a ceiling.
(e)
JVC is not liable for any damage caused by incorrect installation.
4. Installation of camera
• With the mounting plate on the underside
This camera is originally designed to be mounted from underneath, as shown
The hole is standard photographic pan-head screw size (1/4-20 UNC, as is found
in a typical camera fixing point or pan & tilt head.
• With the mounting plate relocated to the topside
Remove the CAMERA MOUNTING BRACKET (f) from the underside of the camera
by removing the two fixing screws as shown
BRACKET (f) to the top, then mount the camera on the Fixing Unit as shown
Make sure that two original screws are used when mounting the CAMERA
MOUNTING BRACKET (f). Be sure to use a 6 mm long locking screw for the camera-
mounting bracket.
These instructions assume the camera will only be mounted indoors.
Fall Prevention
• Exercise maximum caution when installing the unit to a wall or ceiling. If in any doubt
ask a professional to do the job, because if the unit were subsequently to fall, it could
result in personal injuries or accidents.
• When installing the unit on a fixer, turn table, etc., be sure to install it firmly and to
use one of the rotation-preventing holes (e) provided.
• As a failsafe against falling, attach the unit by chain, wire cable or other safety restraint to
ON- AES
OFF ON- BLC
OFF an appropriate anchor point. Attach the fall prevention wire using the black screw on the
AW B
ATW
INT
LL
SET
upper surface (TK-C751 : on the rear panel) of the camera as shown in figure F. When
RES ET
changing the side at which CAMERA MOUNTING BRACKET is installed, be sure to
PO WE R
change the attachment side of the fall prevention wire also to the appropriate side.
T
CTI ON
SEE INS TRU
• Specified screw (TK-C750 : M2.6 = 4 mm, TK-C751 : M3 = 6 mm )
MAN UAL
Never use any screw longer than the specified length as the inside can be damaged.
Flange back (c) Dimension (b)
17.526 mm 10 mm or less
12.5 mm 5.5 mm or less
DC IRIS
(does not contain EE amplifier)
Brake –
Brake
+
Drive Voltage: 0.45 V – 4.05 V
+
Drive Current: max. 26 mA
–
power
AC 24 V (class 2 only)
AC 24 V (isolated power only)
AC 220 V to 240 V (The power cable is 2500 mm in length.)
. Attach the CAMERA MOUNTING
Instructions
∆A
∆B
∆C
1 3
2 4
∆D
∆E
.
.
∆F
