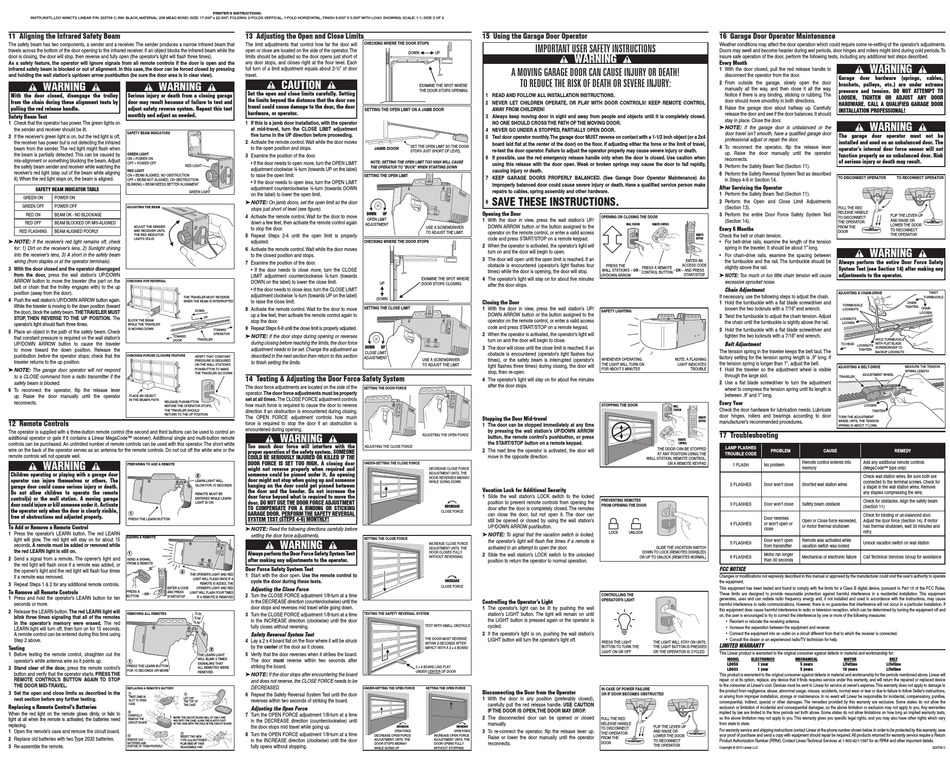

Linear LD033 Installation Instructions page 2

11 Aligning the Infrared Safety Beam
The safety beam has two components, a sender and a receiver. The sender produces a narrow infrared beam that
travels across the bottom of the door opening to the infrared receiver. If an object blocks the infrared beam while the
door is closing, the door will stop, then reverse and fully open (the operator's light will flash three times).
As a safety feature, the operator will ignore signals from all remote controls if the door is open and the
infrared safety beam is blocked or out of alignment. In this case, the door can be forced closed by pressing
and holding the wall station's up/down arrow pushbutton (be sure the door area is in clear view).
WARNING WARNING
With the door closed, disengage the trolley Serious injury or death from a closing garage
from the chain during these alignment tests by door may result because of failure to test and
pulling the red release handle. adjust safety reverse system. Repeat this test
monthly and adjust as needed.
Safety Beam Test
1 Check that the operator has power. The green lights on
the sender and receiver should be lit.
SAFETY BEAM INDICATORS
2 If the receiver's green light is on, but the red light is off,
the receiver has power but is not detecting the infrared
beam from the sender. The red light might flash when
the beam is partially detected. This can be caused by GREEN LIGHT
ON = POWER ON
mis-alignment or something blocking the beam. Adjust
OFF = POWER OFF
the safety beam sender and receiver while watching the RED LIGHT
RED LIGHT
receiver's red light (stay out of the beam while aligning
ON = BEAM ALIGNED, NO OBSTRUCTION
it). When the red light stays on, the beam is aligned.
OFF = BEAM NOT ALIGNED, OR OBSTRUCTION
BLINKING = BEAM NEEDS BETTER ALIGNMENT
SAFETY BEAM INDICATOR TABLE
GREEN LIGHT
GREEN ON POWER ON
GREEN OFF POWER OFF
ADJUSTING THE BEAM
RED ON BEAM OK - NO BLOCKAGE
RED OFF BEAM BLOCKED OR MIS-ALIGNED
ADJUST THE SENDER
RED FLASHING BEAM ALIGNED POORLY AND RECEIVER UNTIL
THE RED INDICATOR
LIGHTS SOLID
� N OTE: If the receiver's red light remains off, check
for: 1) Dirt on the receiver's lens, 2) Sunlight shining
into the receiver's lens, 3) A short in the safety beam
wiring (from staples or at the operator terminals).
3 With the door closed and the operator disengaged
from the door, press the wall station's UP/DOWN
ARROW button to move the traveler (the part on the
CHECKING FOR REVERSAL
belt or chain that the trolley engages with) to the up
position (away from the door).
THE TRAVELER MUST REVERSE
4 Push the wall station's UP/DOWN ARROW button again.
WHEN THE BEAM IS INTERRUPTED
While the traveler is moving to the down position (toward
the door), block the safety beam. THE T RAVELER MUST
STOP, THEN REVERSE TO THE UP POSITION. The
BLOCK THE BEAM
operator's light should flash three times.
WHILE THE TRAVELER
IS MOVING DOWN
5 Place an object in the path of the safety beam. Check
TOWARD
that constant pressure is required on the wall station's
DOOR
UP/DOWN ARROW button to cause the traveler
to move toward the down position. Release the
pushbutton before the operator stops; check that the CHECKING FORCED CLOSURE FEATURE
traveler returns to the up position.
� N OTE: The garage door operator will not respond
to a CLOSE command from a radio transmitter if the
safety beam is blocked.
6 To reconnect the operator, flip the release lever
up. Raise the door manually until the operator PLACE AN OBJECT
IN THE BEAM'S PATH
reconnects.
RELEASE PUSHBUTTON
BEFORE THE OPERATOR STOPS,
THE TRAVELER SHOULD
RETURN TO THE UP POSITION
12 Remote Controls
The operator is supplied with a three-button remote control (the second and third buttons can be used to control an
additional operator or gate if it contains a Linear MegaCode™ receiver). Additional single and multi-button remote
controls can be purchased. An unlimited number of remote controls can be used with this operator. The short white
wire on the back of the operator serves as an antenna for the remote controls. Do not cut off the white wire or the
remote controls will not operate well.
WARNING
PREPARING TO ADD A REMOTE
Children operating or playing with a garage door
operator can injure themselves or others. The
garage door could cause serious injury or death.
Do not allow children to operate the remote
control(s) or the wall station. A moving garage
door could injure or kill someone under it. Activate
the operator only when the door is clearly visible,
1
free of obstructions and adjusted properly.
PRESS THE LEARN BUTTON
To Add or Remove a Remote Control
1 Press the operator's LEARN button. The red LEARN
ADDING A REMOTE
light will glow. The red light will stay on for about 15
seconds. A remote must be added or removed while
the red LEARN light is still on.
1
2 Send a signal from a remote. The opener's light and
SEND A SIGNAL
the red light will flash once if a remote was added, or FROM A REMOTE
the opener's light and the red light will flash four times
2
if a remote was removed.
3 Repeat Steps 1 & 2 for any additional remote controls.
ENTER A CODE
To Remove all Remote Controls PRESS A
AND PRESS
- OR -
BUTTON START/STOP
1 Press and hold the operator's LEARN button for ten
seconds or more.
2 Release the LEARN button. The red LEARN light will
REMOVING ALL REMOTES
blink three times signaling that all of the remotes
in the operator's memory were erased. The red
LEARN light will turn off, then turn on for 15 seconds.
A remote control can be entered during this time using
Step 2 above.
Testing
1 Before testing the remote control, straighten out the
operator's white antenna wire so it points up.
1
PRESS THE LEARN BUTTON
2 Stand clear of the door, press the remote control's
FOR 10 SECONDS OR MORE
button and verify that the operator starts. PRESS THE
REMOTE CONTROL'S BUTTON AGAIN TO STOP
THE DOOR MID-TRAVEL.
REPLACING A REMOTE'S BATTERY
3 Set the open and close limits as described in the
1
2
next section before any further testing. TWIST DIME IN
LIFT OFF
SLOT TO OPEN
THE TOP OF
CASE
THE CASE
Replacing a Remote Control's Batteries
When the red light on the remote glows dimly, or fails to 3
CAREFULLY
light at all when the remote is activated, the batteries need NOTE: THE CIRCUIT BOARD WILL FIT ONLY ONE
REMOVE THE
WAY INTO THE CASE. ALIGN THE PLASTIC POST
CIRCUIT BOARD
replacing. IN THE CASE WITH THE HOLE IN THE CIRCUIT BOARD
1 Open the remote's case and remove the circuit board.
5
4
2 Replace old batteries with two Type 2032 batteries. INSERT TWO NEW
REMOVE OLD TYPE 2032 BATTERIES
BATTERIES AND
PLUS SIDE UP THEN
3 Re-assemble the remote.
DISPOSE OF THEM PROPERLY
REASSEMBLE UNIT
13 Adjusting the Open and Close Limits
CHECKING WHERE THE DOOR STOPS
The limit adjustments that control how far the door will
open or close are located on the side of the operator. The
limits should be adjusted so the door opens just short of
any door stops, and closes right at the floor level. Each
full turn of a limit adjustment equals about 2-½" of door
travel.
CAUTION
Set the open and close limits carefully. Setting
the limits beyond the distance that the door can
travel could cause damage to the door, the door
SETTING THE OPEN LIMIT ON A JAMB DOOR
hardware, or operator.
1 If this is a jamb door installation, with the operator
at mid-travel, turn the CLOSE LIMIT adjustment
five turns in the UP direction before proceeding.
2 Activate the remote control. Wait while the door moves
to the open position and stops.
3 Examine the position of the door.
• If the door needs to open more, turn the OPEN LIMIT
NOTE: SETTING THE OPEN LIMIT TOO HIGH WILL CAUSE
THE OPERATOR TO "BUCK" WHEN STARTING DOWN
adjustment clockwise ¼-turn (towards UP on the label)
to raise the open limit.
SETTING THE OPEN LIMIT
• If the door needs to open less, turn the OPEN LIMIT
adjustment counterclockwise ¼-turn (towards DOWN
on the label) to lower the open limit.
� N OTE: On jamb doors, set the open limit so the door
stops just short of level (see figure).
DOWN
4 Activate the remote control. Wait for the door to move
OPEN LIMIT
down a few feet, then activate the remote control again
ADJUSTMENT
to stop the door.
5 Repeat Steps 2-4 until the open limit is properly
adjusted. CHECKING WHERE THE DOOR STOPS
6 Activate the remote control. Wait while the door moves
to the closed position and stops.
7 Examine the position of the door.
• If the door needs to close more, turn the CLOSE
LIMIT adjustment counterclockwise ¼-turn (towards
DOWN on the label) to lower the close limit.
• If the door needs to close less, turn the CLOSE LIMIT
adjustment clockwise ¼-turn (towards UP on the label)
to raise the close limit.
8 Activate the remote control. Wait for the door to move SETTING THE CLOSE LIMIT
DOWN
up a few feet, then activate the remote control again to
UP
stop the door.
9 Repeat Steps 6-8 until the close limit is properly adjusted.
TOWARD
OPERATOR
� N OTE: If the door stops during opening or reverses
TRAVELER
during closing before reaching the limits, the door force
DOWN
adjustment needs to be set. Change the adjustment as
CLOSE LIMIT
described in the next section then return to this section
VERIFY THAT CONSTANT ADJUSTMENT
PRESSURE IS REQUIRED to finish setting the limits.
ON THE WALL STATION'S
PUSHBUTTON TO MAKE
THE TRAVELER GO DOWN
14 Testing & Adjusting the Door Force Safety System
The door force adjustments are located on the side of the
SETTING THE DOOR FORCE
operator. The door force adjustments must be properly
set at all times. The CLOSE FORCE adjustment controls
how much force is required to cause the door to reverse
direction if an obstruction is encountered during closing.
The OPEN FORCE adjustment controls how much
force is required to stop the door if an obstruction is
encountered during opening.
WARNING
Too much door force will interfere with the
ADJUSTING THE CLOSE FORCE
proper operation of the safety system. SOMEONE
COULD BE SERIOUSLY INJURED OR KILLED IF THE
DOOR FORCE IS SET TOO HIGH. A closing door
UNDER-SETTING THE CLOSE FORCE
might not reverse properly when required and
someone could be pinned under it. An opening
2
door might not stop when going up and someone
LEARN LIGHT WILL
hanging on the door could get pinned between
GLOW FOR 15 SECONDS
the door and the header. Do not increase the
REMOTE MUST BE
door force beyond what is required to move the
ENTERED WHILE LEARN
door. DO NOT USE THE DOOR FORCE ADJUSTMENT
LIGHT IS ON
TO COMPENSATE FOR A BINDING OR STICKING
GARAGE DOOR. PERFORM THE SAFETY REVERSAL
SYSTEM TEST (STEPS 4-6) MONTHLY!
� N OTE: Read the following directions carefully before
setting the door force adjustments.
SETTING THE CLOSE FORCE
WARNING
Always perform the Door Force Safety System Test
after making any adjustments to the operator.
Door Force Safety System Test
THE OPENER'S LIGHT AND RED 1 Start with the door open. Use the remote control to
LIGHT WILL FLASH ONCE IF A
cycle the door during these tests.
REMOTE IS ADDED, THE
OPENER'S LIGHT AND RED Adjusting the Close Force
LIGHT WILL FLASH FOUR TIMES
2 Turn the CLOSE FORCE adjustment 1/8-turn at a time
IF A REMOTE IS REMOVED
in the DECREASE direction (counterclockwise) until the
door stops and reverses mid travel while going down.
3 Turn the CLOSE FORCE adjustment 1/8-turn at a time TESTING THE SAFETY REVERSAL SYSTEM
in the INCREASE direction (clockwise) until the door
fully closes without reversing.
Safety Reversal System Test
4 Lay a 2 x 4 board flat on the floor where it will be struck
by the center of the door as it closes.
2
5 Verify that the door reverses when it strikes the board.
THE LEARN LIGHT
WILL BLINK 3 TIMES
The door must reverse within two seconds after
SIGNALING THAT
striking the board.
ALL REMOTES WERE
REMOVED
� N OTE: If the door stops after encountering the board
and does not reverse, the CLOSE FORCE needs to be
DECREASED.
UNDER-SETTING THE OPEN FORCE
6 Repeat the Safety Reversal System Test until the door
reverses within two seconds of striking the board.
Adjusting the Open Force
7 Turn the OPEN FORCE adjustment 1/8-turn at a time
in the DECREASE direction (counterclockwise) until
the door stops mid travel while going up.
8 Turn the OPEN FORCE adjustment 1/8-turn at a time
in the INCREASE direction (clockwise) until the door
fully opens without stopping.
15 Using the Garage Door Operator
IMPORTANT USER SAFETY INSTRUCTIONS
DOWN UP
A MOVING GARAGE DOOR CAN CAUSE INJURY OR DEATH!
TO REDUCE THE RISK OF DEATH OR SEVERE INJURY:
EXAMINE THE SPOT WHERE
THE DOOR STOPS OPENING
1 READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2 NEVER LET CHILDREN OPERATE, OR PLAY WITH DOOR CONTROLS! KEEP REMOTE CONTROL
AWAY FROM CHILDREN!
3 Always keep moving door in sight and away from people and objects until it is completely closed.
NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
4 NEVER GO UNDER A STOPPED, PARTIALLY OPEN DOOR.
5 Test door operator monthly. T he garage door MUST reverse on contact with a 1-1/2 inch object (or a 2x4
board laid flat at the center of the door) on the floor. If adjusting either the force or the limit of travel,
SET THE OPEN LIMIT SO THE DOOR
JAMB DOOR
re-test the door operator. Failure to adjust the operator properly may cause severe injury or death.
STOPS JUST SHORT OF LEVEL
6 If possible, use the red emergency release handle only when the door is closed. Use caution when
IF PROPERLY IF PROPERLY
using this release with the door open. Weak or broken springs may cause the door to fall rapidly, BALANCED, THE BALANCED, THE
DOOR WILL STAY AT A DOOR WILL STAY AT A
HALFWAY POSITION HALFWAY POSITION
causing injury or death.
7 KEEP GARAGE DOORS PROPERLY BALANCED. (See Garage Door Operator Maintenance) An
improperly balanced door could cause severe injury or death. Have a qualified service person make
repairs to cables, spring assembly and other hardware.
SAVE THESE INSTRUCTIONS.
8
Opening the Door
UP
1 With the door in view, press the wall station's UP/
DOWN ARROW button or the button assigned to the
USE A SCREWDRIVER
operator on the remote control, or enter a valid access
TO ADJUST THE LIMIT
code and press START/STOP on a remote keypad.
2 When the operator is activated, the operator's light will
turn on and the door will begin to open.
3 The door will open until the open limit is reached. If an
obstacle is encountered (operator's light flashes four
times) while the door is opening, the door will stop.
4 The operator's light will stay on for about five minutes
EXAMINE THE SPOT WHERE
UP DOOR STOPS CLOSING after the door stops.
DOWN
Closing the Door
1 With the door in view, press the wall station's UP/
DOWN ARROW button or the button assigned to the
operator on the remote control, or enter a valid access
code and press START/STOP on a remote keypad.
2 When the operator is activated, the operator's light will
turn on and the door will begin to close.
UP 3 The door will close until the close limit is reached. If an
obstacle is encountered (operator's light flashes four
USE A SCREWDRIVER times), or the safety beam is interrupted (operator's
TO ADJUST THE LIMIT
light flashes three times) during closing, the door will
stop, then re-open.
4 The operator's light will stay on for about five minutes
after the door stops.
Stopping the Door Mid-travel
1 The door can be stopped immediately at any time
by pressing the wall station's UP/DOWN ARROW
ADJUSTING THE OPEN FORCE
button, the remote control's pushbutton, or press
the START/STOP button on a remote keypad.
2 The next time the operator is activated, the door will
move in the opposite direction.
DECREASE CLOSE FORCE
ADJUSTMENT UNTIL THE
DOOR REVERSES MIDWAY
WHILE GOING DOWN
Vacation Lock for Additional Security
1 Slide the wall station's LOCK switch to the locked
position to prevent remote controls from opening the
DECREASE
door after the door is completely closed. The remotes
CLOSE FORCE
can close the door, but not open it. The door can
still be opened or closed by using the wall station's
UP/DOWN ARROW pushbutton.
� N OTE: To signal that the vacation switch is locked,
the operator's light will flash five times if a remote is
INCREASE CLOSE FORCE
activated in an attempt to open the door.
ADJUSTMENT UNTIL THE
DOOR CLOSES FULLY
2 Slide the wall station's LOCK switch to the unlocked
WITHOUT REVERSING
position to return the operator to normal operation.
INCREASE
CLOSE FORCE
Controlling the Operator's Light
1 The operator's light can be lit by pushing the wall
station's LIGHT button. The light will remain on until
the LIGHT button is pressed again or the operator is
TEST WITH SMALL OBSTACLE cycled.
2 If the operator's light is on, pushing the wall station's
THE DOOR MUST REVERSE LIGHT button will turn the operator's light off.
WITHIN 2-SECONDS AFTER
IMPACT WITH A 2 x 4 BOARD
2 x 4 BOARD LAID FLAT
UNDER CENTER OF DOOR
SETTING THE OPEN FORCE
Disconnecting the Door from the Operator
1 With the door in any position (preferably closed),
carefully pull the red release handle. USE CAUTION
IF THE DOOR IS OPEN, THE DOOR MAY DROP.
2 The disconnected door can be opened or closed
manually.
DECREASE INCREASE
3 To re-connect the operator, flip the release lever up.
OPEN FORCE OPEN FORCE
DECREASE OPEN FORCE INCREASE OPEN FORCE
Raise or lower the door manually until the operator
ADJUSTMENT UNTIL THE ADJUSTMENT UNTIL THE
reconnects.
DOOR STOPS MIDWAY DOOR OPENS FULLY
WHILE GOING UP WITHOUT STOPPING
16 Garage Door Operator Maintenance
Weather conditions may affect the door operation which could require some re-setting of the operator's adjustments.
Doors may swell and become heavier during wet periods, door hinges and rollers might bind during cold periods. To
WARNING
insure safe operation of the door, perform the following tests, including any additional test steps described.
Every Month
1 With the door closed, pull the red release handle to
disconnect the operator from the door.
2 From outside the garage, slowly open the door
manually all the way, and then close it all the way.
Notice if there is any binding, sticking or rubbing. The
door should move smoothly in both directions.
3 Raise the garage door about halfway up. Carefully
release the door and see if the door balances. It should
stay in place. Close the door.
� N OTE: If the garage door is unbalanced or the
door travel isn't smooth, have a qualified garage door
professional adjust or repair the door.
4 To reconnect the operator, flip the release lever
up. Raise the door manually until the operator
reconnects.
5 Perform the Safety Beam Test (Section 11).
6 Perform the Safety Reversal System Test as described
in Steps 4-6 in Section 14.
After Servicing the Operator
1 Perform the Safety Beam Test (Section 11).
2 Perform the Open and Close Limit Adjustments
(Section 13).
3 Perform the entire Door Force Safety System Test
OPENING OR CLOSING THE DOOR
(Section 14).
WALL STATION REMOTE CONTROL
Every 6 Months
REMOTE Check the belt or chain tension.
KEYPAD
• For belt-drive rails, examine the length of the tension
spring in the traveler. It should be about 1" long.
• For chain-drive rails, examine the spacing between
ENTER AN the turnbuckle and the rail. The turnbuckle should be
PRESS THE ACCESS CODE
slightly above the rail.
PRESS A REMOTE
- OR - - OR -
WALL STATION'S AND PRESS
CONTROL BUTTON
UP/DOWN ARROW START/STOP � N OTE: Too much or too little chain tension will cause
excessive sprocket noise.
Chain Adjustment
If necessary, use the following steps to adjust the chain.
1 Hold the turnbuckle with a flat blade screwdriver and
loosen the two locknuts with a 7/16" end wrench.
SAFETY LIGHTING
2 Twist the turnbuckle to adjust the chain tension. Adjust
the chain until the turnbuckle is sightly above the rail.
3 Hold the turnbuckle with a flat blade screwdriver and
tighten the two locknuts with a 7/16" end wrench.
Belt Adjustment
The tension spring in the traveler keeps the belt taut. The
factory setting for the tension spring length is .9" long. If
WHENEVER OPERATING NOTE: A FLASHING
the tension spring is longer than 1", adjust the belt.
THE LIGHT WILL TURN ON LIGHT INDICATES
FOR ABOUT 5 MINUTES TROUBLE 1 Hold the traveler so the adjustment wheel is visible
through the large slot.
2 Use a flat blade screwdriver to turn the adjustment
wheel to compress the tension spring until its length is
between .9" and 1" long.
Every Year
STOPPING THE DOOR
WALL
Check the door hardware for lubrication needs. Lubricate
STATION
door hinges, rollers and bearings according to door
REMOTE
manufacturer's recommended procedures.
KEYPAD
17 Troubleshooting
REMOTE
CONTROL
LAMP FLASHES
THE DOOR CAN BE STOPPED
TROUBLE CODE
AT ANY POSITION USING THE
WALL STATION, REMOTE CONTROL,
OR A REMOTE KEYPAD
1 FLASH
2 FLASHES
PREVENTING REMOTES
3 FLASHES
FROM OPENING THE DOOR
4 FLASHES
LOCK UNLOCK
5 FLASHES
SLIDE THE VACATION SWITCH
DOWN TO LOCK (REMOTES DISABLED)
6 FLASHES
OR UP TO UNLOCK (REMOTES NORMAL)
FCC NOTICE
Changes or modifications not expressly described in this manual or approved by the manufacturer could void the user's authority to operate
the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
CONTROLLING THE
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
OPERATOR'S LIGHT
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
PRESS THE LIGHT THE LIGHT WILL STAY ON UNTIL
LIMITED WARRANTY
BUTTON TO TURN THE THE LIGHT BUTTON IS PRESSED
LIGHT ON OR OFF OR THE OPERATOR IS CYCLED
This Linear product is warranted to the original consumer against defects in material and workmanship for:
MODEL ELECTRONICS
LDO50
LDO33
This product is warranted to the original consumer against defects in material and workmanship for the periods mentioned above. Linear will
repair, or at its option, replace, any device that it finds requires service under this warranty, and will return the repaired or replaced device
to the consumer at Linear's cost. Devices must be sent to Linear for service at owner's expense. This warranty does not apply to damage to
IN CASE OF POWER FAILURE
the product from negligence, abuse, abnormal usage, misuse, accidents, normal wear or tear or due to failure to follow Seller's instructions,
OR IF DOOR BECOMES OBSTRUCTED
or arising from improper installation, storage or maintenance. In no event will Linear be responsible for incidental, compensatory, punitive,
consequential, indirect, special or other damages. The remedies provided by this warranty are exclusive. Some states do not allow the
exclusion or limitation of incidental and consequential damages, so the above limitation or exclusion may not apply to you. Any warranties
implied by law are limited to the time periods set forth above. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary
PULL THE RED
RELEASE HANDLE from state to state.
FLIP THE LEVER UP
TO DISCONNECT
For warranty service and shipping instructions contact Linear at the phone number shown below. In order to be protected by this warranty, save
AND RAISE OR
THE OPERATOR NOTICE
IF DOOR BECOMES OBSTRUCTED,
LOWER THE DOOR PULL DOWN ON HANDLE your proof of purchase and send a copy with equipment should repair be required. All products returned for warranty service require a Return
FROM THE
TO RECONNECT Product Authorization Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.
NOTICE
DOOR IF DOOR BECOMES OBSTRUCTED,
PULL DOWN ON HANDLE
THE OPERATOR
Copyright © 2010 Linear LLC
WARNING
Garage door hardware (springs, cables,
brackets, pulleys, etc.) are under extreme
pressure and tension. DO NOT ATTEMPT TO
LOOSEN, TIGHTEN OR ADJUST ANY DOOR
HARDWARE. CALL A QUALIFIED GARAGE DOOR
INSTALLATION PROFESSIONAL!
WARNING
The garage door operator must not be
installed and used on an unbalanced door. The
operator's internal door force sensor will not
function properly on an unbalanced door. Risk
of serious injury or death may result.
TO DISCONNECT OPERATOR TO RECONNECT OPERATOR
PULL THE RED
RELEASE HANDLE
FLIP THE LEVER UP
TO DISCONNECT
AND RAISE OR
THE OPERATOR NOTICE
IF DOOR BECOMES OBSTRUCTED,
LOWER THE DOOR PULL DOWN ON HANDLE
FROM THE
NOTICE TO RECONNECT
DOOR IF DOOR BECOMES OBSTRUCTED,
PULL DOWN ON HANDLE
THE OPERATOR
WARNING
Always perform the entire Door Force Safety
System Test (see Section 14) after making any
adjustments to the operator.
ADJUSTING A CHAIN-DRIVE TWIST
TURNBUCKLE
CHAIN
TURNBUCKLE
TIGHTEN
CHAIN
LOCKNUTS
LOOSEN
LOCKNUTS
LOOSEN
HOLD TURNBUCKLE
TO HEAD LOCKNUTS WITH FLAT BLADE
SCREWDRIVER TO
TIGHTEN
BACKUP LOCKNUTS
ADJUSTING A BELT-DRIVE
MEASURE THE TENSION
SPRING LENGTH
ADJUSTMENT WHEEL
TRAVELER
LOOSEN
TIGHTEN
TURN THE ADJUSTMENT
WHEEL UNTIL THE TENSION
SPRING IS ABOUT 1" LONG
PROBLEM CAUSE REMEDY
Remote control entered into Add any additional remote controls
No problem
memory (MegaCode™ type only)
Check wall station wires. Be sure both are
connected to the terminal screws. Check for
Door won't close Shorted wall station wires
a staple in the wall station wires. Remove
any staples compressing the wire.
Check for obstacles. Align the safety beam
Door won't close Safety beam obstacle
(Section 11)
Check for binding or un-balanced door.
Door reverses
Open or Close force exceeded, Adjust the door force (Section 14). If motor
or won't open or
or motor thermal shutdown had thermal shutdown, wait 30 minutes and
close
retry.
Door won't open Remote was activated while
Unlock vacation switch on wall station
from transmitter vacation switch was locked
Motor ran longer
Mechanical or electronic failure Call Technical Services Group for assistance
than 30 seconds
MECHANICAL MOTOR BELT
1 year 5 years Lifetime Lifetime
1 year 5 years 10 years Lifetime
223709 C
