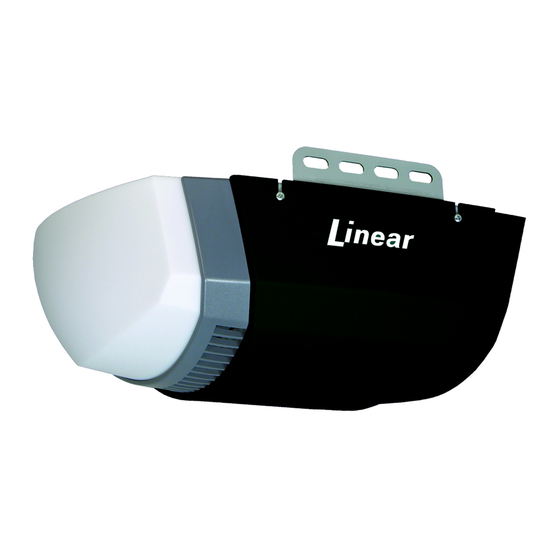

Linear LDC0800 Quick Programming Manual

ADDING A TRANSMITTER OR KEYPAD CODE
UP +
PRESS & RELEASE
DOWN -
LEARN BUTTON
LEARN
RED LED WILL LIGHT FOR 15
SECONDS - READY TO LEARN
PUSH TRANSMITTER BUTTON OR
ENTER KEYPAD CODE
1 FLASH = TRANSMITTER BUTTON OR
KEYPAD CODE LEARNED
ERASING A TRANSMITTER OR KEYPAD CODE
UP +
PRESS & RELEASE
DOWN -
LEARN BUTTON
LEARN
RED LED WILL LIGHT FOR 15
SECONDS - READY TO ERASE
PUSH TRANSMITTER BUTTON OR
ENTER KEYPAD CODE
4 FLASHES = TRANSMITTER BUTTON
OR KEYPAD CODE ERASED
ERASING ALL TRANSMITTERS & KEYPADS
UP +
PRESS LEARN BUTTON
10
DOWN -
SEC.
FOR 10 SECONDS
LEARN
3 FLASHES = ALL TRANSMITTERS &
KEYPADS ERASED
LDCO800
QUICK PROGRAMMING GUIDE

SETTING THE OPEN LIMIT

NOTE: LIMITS ARE PRESET FOR 7-FOOT DOORS
UP +
PRESS LEARN & UP
DOWN -
FOR 3 SECONDS
LEARN
2 GREEN FLASHES = SET UP LIMIT
PRESS UP (+) OR DOWN (-)
UP +
TO JOG THE DOOR TO THE
DOWN -
CORRECT POSITION
LEARN
UP +
PRESS LEARN TO STORE LIMIT
DOWN -
LEARN
2 GREEN FLASHES = OPEN LIMIT STORED

SETTING THE CLOSE LIMIT

UP +
PRESS LEARN & DOWN
DOWN -
FOR 3 SECONDS
LEARN
2 RED FLASHES = SET DOWN LIMIT
PRESS UP (+) OR DOWN (-)
UP +
TO JOG THE DOOR TO THE
DOWN -
CORRECT POSITION
LEARN
UP +
PRESS LEARN TO STORE LIMIT
DOWN -
LEARN
2 RED FLASHES = CLOSE LIMIT STORED

SETTING THE DOOR FORCE

RUN THE OPERATOR FOUR
COMPLETE UP & DOWN CYCLES
THE OPERATOR AUTOMATICALLY
SETS THE CORRECT DOOR FORCE
FOR OPTIONAL OPEN AND CLOSE FORCE
MODIFICATIONS, SEE INSTRUCTIONS
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
www.linearcorp.com
Copyright © 2010 Linear LLC 231165 A
