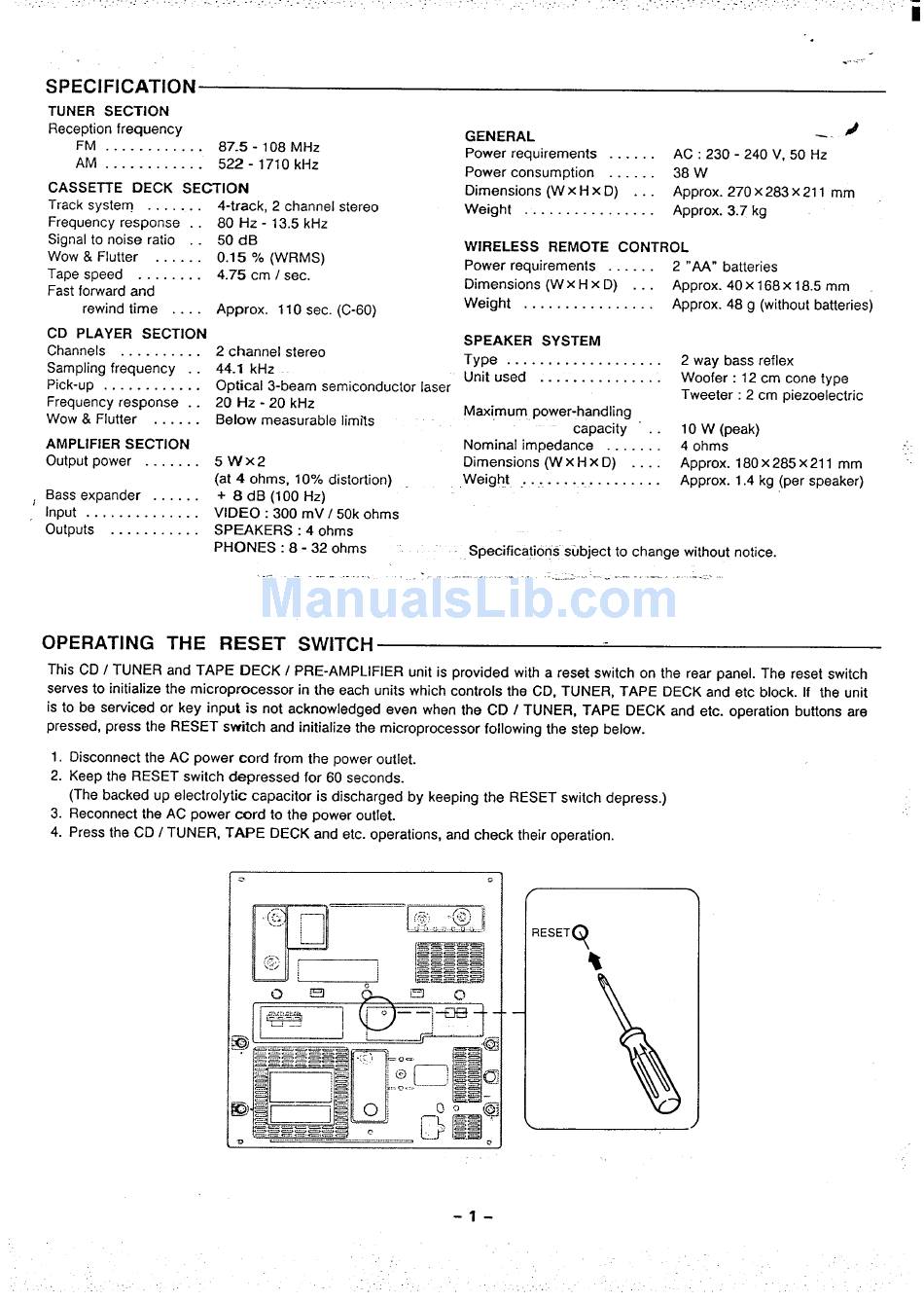

SPECIFICATION
TUNER
SECTION
Reception frequency
FM
. . . . . . . . . . . .
87-5
-108 MHZ
AM . . . . . . . . . . . .
522-
1710kHz
CASSETTE
DECK
SECTION
Track system
. . . . . . .
Frequency response
. .
Signal to noise ratio
. .
Wow & Flutter
. . . . . .
Tape speed
. . . . . . . .
Fast forward and
rewind time
. . . .
CD PLAYER
SECTION
Channels
. . . . . . . . . .
Sampling frequency
. .
Pick-up
. . . . . . . . . . . .
Frequency response
. .
Wow&Flutter
. . . . . .
AMPLIFIER
SECTION
Output power
. . . . . . .
Bass expander
. . . . . .
,' Input . . . . . . . . . . . . . .
outputs
. . . . . . . . . . .
OPERATING
THE
4-track, 2 channel stereo
80
6iZ
-13.5
kHz
50 dB
0.15 % (WRMS)
4.75 cm I sec.
Approx.
110 sec. (C-60)
2 channel stereo
44.1 kHz
optical
3-beam semiconductor laser
20
HZ
-20
kHz
Below measurable
limits
5WX2
(at 4 ohms, 10% distortion)
+ 8 dB (100" Hz)
VIDEO
:300 mV / 50k ohms
SPEAKERS
:4 ohms
PHONES
:8-32
ohms
GENERAL
Power requirements
. .
Power consumption
. .
Dimensions (WX H x D)
Weight
. . . . . . . . . . . .
-.
d
. . . .
AC :230-240
V, 50
tiz
. . . .
38 W
. . .
Approx. 270x283x211
mm
. . . .
Approx. 3.7 kg
WIRELESS
REMOTE
CONTROL
Power requirements
. . . . . .
2 "AA" batteries
Dimensions (W x H x D)
. . .
Approx. 40x 168x 18.5 mm
Weight
. . . . . . . . . . . . . . . .
Approx. 48 g (without batteries)
SPEAKER
SYSTEM
Type
. . . . . . . . . . . . . . . . . . .
Unit used
. . . . . . . . . . . . . . .
Maximum
power-handling
capacity
. .
Nominal impedance
. . . . . . .
Dimensions (W
x
H
x
D)
. . . .
Weight
.. . .. . . . . . . . . . . . .
2 way bass reflex
Woofer :12 cm cone type
Tweeter :2 cm piezoelectric
10 W (peak)
4 ohms
..
Approx. 180x285
x211 mm
""
Approx. 1.4 kg (per speaker)
Specifications
subject to change without notice.
. ...
..
. . . . ... .
. .. . . . ...
. . .. ..
RESET
SWITCH
This CD / TUNER and TAPE DECK/
PRE-AMPLIFIER
unit is provided with a reset switch on the rear panel. The reset switch
serves to initialize the microprocessor
in the each units which controls the CD, TUNER, TAPE DECK and etc block. If the unit
is to be serviced or key input is not acknowledged
even when the CD / TUNER,
TAPE DECK and etc. operation buttons are
pressed, press the RESET switch and initialize the microprocessor following the step below.
1. Disconnect the AC power cord from the power outlet.
2. Keep the RESET switch depressed
for 60 seconds.
(The backed up electrolytic
capacitor is discharged by keeping the RESET switch depress.)
3. Reconnect the AC power cord to the power outlet.
4. Press the CD / TUNER, TAPE DECK and etc. operations, and check their operation.
s
I
-1-
