INSTALLATION

THERMOSTAT INSTALLATION:

NOTE: Always Disconnect Power Before Performing
The Thermostat Installation.
A 24 volt wall thermostat and 20 feet of 18-gage thermo-
stat wire is included in your stove's accessory package.
It is recommended that the thermostat and thermostat
wire be installed by an authorized Lennox Hearth Prod-
ucts dealer.
Installation Steps:
1. Unplug stove power cord from the wall outlet.
2. Locate the thermostat terminal block on the back of
the stove.
3. Loosen the two terminal screws on the terminal block
and remove jumper.
4. Connect the two wires from your thermostat to the
terminals (one per terminal). Ensure that the purple
wires from the harness remain connected to the ter-
minal block and tighten the terminal screws. Make
sure the wires are firmly connected to the thermo-
stat.
5. Plug in the stove and you are ready to operate with
your thermostat!
IMPORTANT: IF THE WALL THERMOSTAT PRO-
VIDED IS NOT USED, THE JUMPER IS REQUIRED
FOR THE STOVE TO OPERATE
PAGE 12
www.PelletKing.com

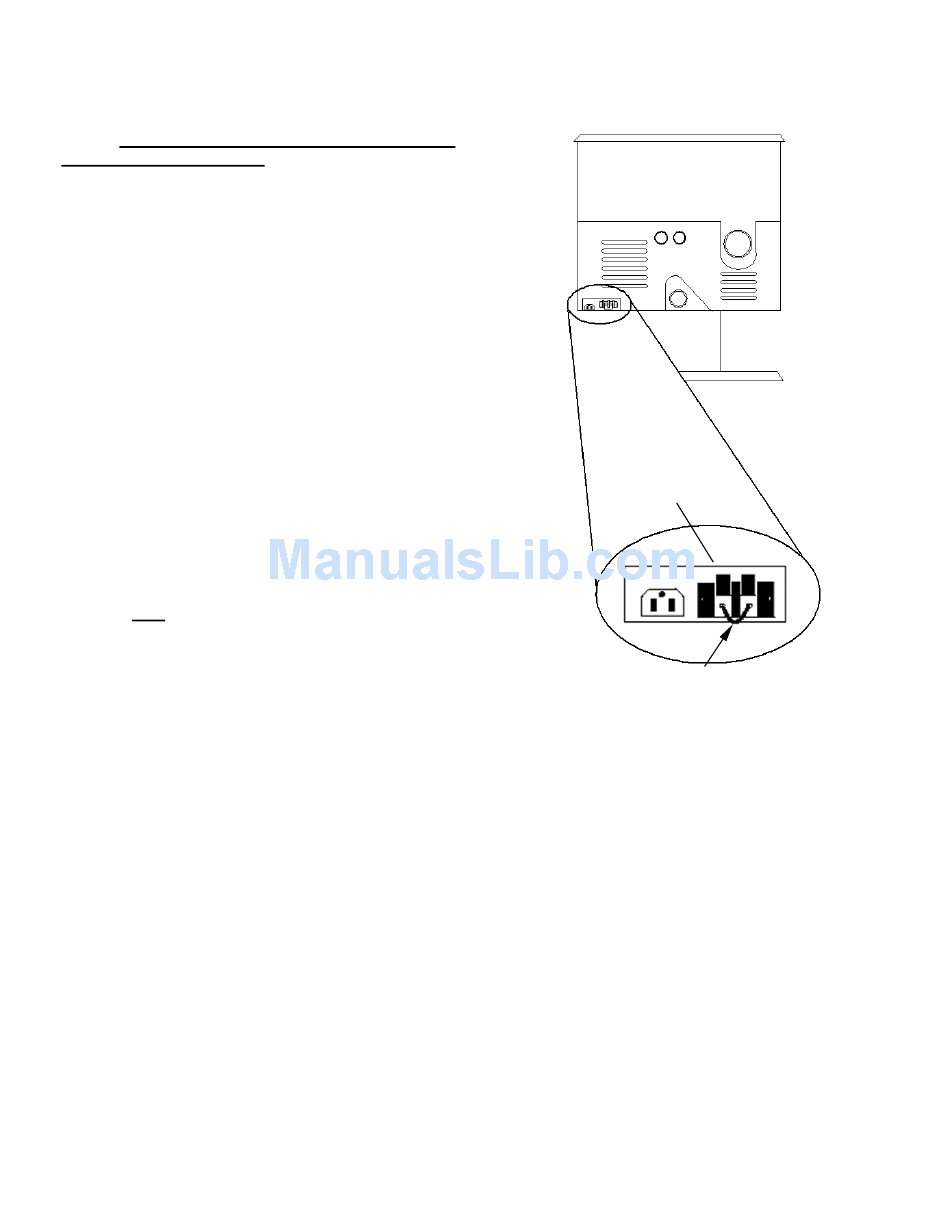

Rear View of Advantage II-T C FS
Back of Stove
Thermostat
Terminal
Block
Thermostat Jumper
