Multi Split Outdoor Unit CU-2E18NBU CU-5E36QBU ENGLISH 2-10 Operating Instructions Air Conditioner Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached. Before operating the unit, read these operating instructions thoroughly and keep them for future reference. FRANÇAIS 11-20 Instructions d’utilisation Climatiseur Merci d’avoir acheté...
SAFETY PRECAUTIONS TABLE OF CONTENTS TABLE OF CONTENTS To prevent personal injury, injury to others, or property damage, please comply with the following. SAFETY PRECAUTIONS Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: MULTI AIR CONDITIONER This sign warns of death or SYSTEM...
Page 3
WARNING WARNING CAUTION CAUTION REMOTE CONTROL INDOOR UNIT AND OUTDOOR UNIT Do not allow infants and small children to play Do not wash the indoor unit with water, benzene, with the remote control to prevent them from thinner or scouring powder to avoid damage or accidentally swallowing the batteries.
INDOOR UNIT • Switch off the power at the circuit breaker before cleaning. • Do not touch the aluminium fi n, sharp parts may cause injury. CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS HINT HINT • Do not use benzene, thinner or scouring powder. •...
REMOTE CONTROL Press the remote control’s button TO TURN ON OR OFF THE UNIT • Please be aware of the OFF indication on the remote Maximum distance: 26ft/8m control display to prevent the unit from starting/stopping improperly. TO SET TEMPERATURE •...
TO ENJOY QUIET OPERATION TO SET THE TIMER TO SET THE TIMER • This operation reduces airfl ow noise. • To turn ON or OFF the unit at a preset time. TO REACH TEMPERATURE QUICKLY • Single Split System: This operation stops automatically after 20 minutes.
TROUBLESHOOTING The following symptoms do not indicate malfunction. The following symptoms do not indicate malfunction. SYMPTOM SYMPTOM CAUSE CAUSE Mist emerges from indoor unit. ► • Condensation effect due to cooling process. Water fl owing sound during operation. ► • Refrigerant fl ow inside the unit. The room has a peculiar odor.
Page 9
TROUBLESHOOTING The unit stops and the TIMER indicator blinks. The unit stops and the TIMER indicator blinks. Use remote control to retrieve error code. TIMER Press until you hear beep sound, then write Press for 5 seconds. down the error code. CANCEL Press for 5 seconds to Turn the unit off and reveal the error code to...
Page 10
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Contact your local hazardous waste disposal hotline. CS-E9NKUAW / CU-E9NKUA Models Number CS-E12NKUAW / CU-E12NKUA...
Page 11

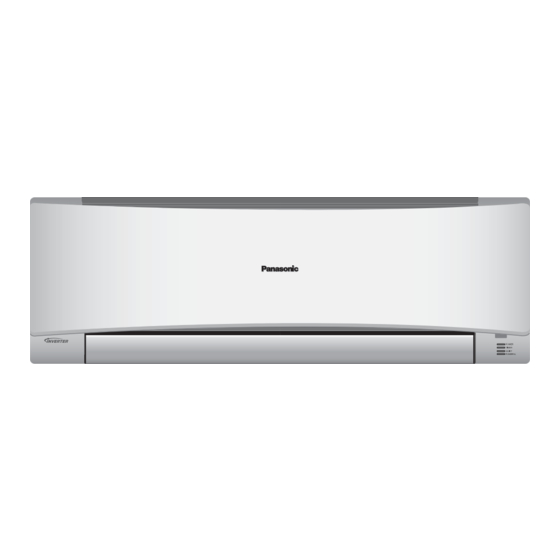

Instructions d’utilisation Climatiseur de modèle Unité intérieure Unité extérieure CS-E9NKUAW d’un système à deux blocs CS-E12NKUAW CU-E9NKUA CU-E12NKUA Unité extérieure d’un système multiblocs CU-2E18NBU CU-5E36QBU...
Page 12
CONSIGNES DE SÉCURITÉ TABLE DES MATIÈRES TABLE DES MATIÈRES Afi n de prévenir tout risque de blessures ou de dommages matériels, observer les consignes suivantes. L’utilisation incorrecte due au non-respect des consignes de sécurité entraîne des CONSIGNES DE SÉCURITÉ blessures ou dommages classifi és comme suit : 12 et 13 Cette indication signale un risque de SYSTÈME DE CLIMATISATION...
Page 13
ATTENTION ATTENTION MISE EN GARDE MISE EN GARDE TÉLÉCOMMANDE UNITÉS INTÉRIEURE ET EXTÉRIEURE UNITÉS INTÉRIEURE ET EXTÉRIEURE Ne pas permettre aux bébés et aux enfants en bas âge Ne pas laver l’unité intérieure à l’eau, ni utiliser de de jouer avec la télécommande pour éviter qu’ils avalent benzène, diluant ou poudre à...
Page 14
CS-E9NKUAW / CU-E9NKUA 15 ampères Climatiseur à deux 208/230V blocs CS-E12NKUAW / CU-E12NKUA 15 ampères CS-E9NKUAW / CS-E12NKUAW / CU-2E18NBU 25 ampères 208/230V Climatiseur multiblocs CS-E9NKUAW / CS-E12NKUAW / CU-5E36QBU 45 ampères Pour une liste complète des caractéristiques, consulter le catalogue.
Page 15
UNITÉ INTÉRIEURE • Couper le courant au disjoncteur avant de nettoyer. • Ne pas toucher l’ailette tranchante en aluminium; les pièces tranchantes peuvent causer des blessures graves. INSTRUCTIONS DE NETTOYAGE INSTRUCTIONS DE NETTOYAGE ASTUCE ASTUCE • Ne pas utiliser de benzène, diluant ni poudre à récurer. •...
Page 16
TÉLÉCOMMANDE Appuyer sur la touche de la télécommande MISE EN/HORS MARCHE DE L’APPAREIL • Prêter attention à l’indication de mise hors marche (OFF) Portée maximale : 8 m/26 pi sur l’affi chage de la télécommande afi n de prévenir le démarrage et l’arrêt irrégulier de l’appareil.
Page 17
FONCTIONNEMENT SILENCIEUX RÉGLAGE DE LA MINUTERIE RÉGLAGE DE LA MINUTERIE • Ce mode réduit le bruit du fl ux d’air. • Pour la mise en/hors marche de l’appareil à l’heure préréglée. ATTEINTE RAPIDE DE LA TEMPÉRATURE SOUHAITÉE • Climatiseur à deux blocs : Ce mode de fonctionnement est automatiquement interrompu après 20 minutes.
Page 18
DÉPANNAGE Les situations suivantes ne sont pas le signe d’un problème de fonctionnement. Les situations suivantes ne sont pas le signe d’un problème de fonctionnement. PROBLÈME PROBLÈME CAUSE CAUSE Pulvérisation de gouttelettes d’eau à la sortie de l’unité intérieure. ► • Effet de condensation attribuable au processus de refroidissement.
Page 19
DÉPANNAGE L’appareil arrête de fonctionner et le voyant TIMER clignote. L’appareil arrête de fonctionner et le voyant TIMER clignote. Utiliser la télécommande pour connaître le code d’erreur. TIMER Maintenir la touche enfoncée jusqu’à Maintenir la touche enfoncée l’émission d’un bip, puis noter le code pendant 5 secondes.
Page 20
Si ce pictogramme est combiné avec un symbole chimique, il remplit également les exigences posées par la Directive relative au produit chimique concerné. Appeler la ligne sans frais de votre centre local d’élimination des déchets dangereux. CS-E9NKUAW / CU-E9NKUA Numéros de modèles CS-E12NKUAW / CU-E12NKUA Les produits énumérés plus haut ont été...
