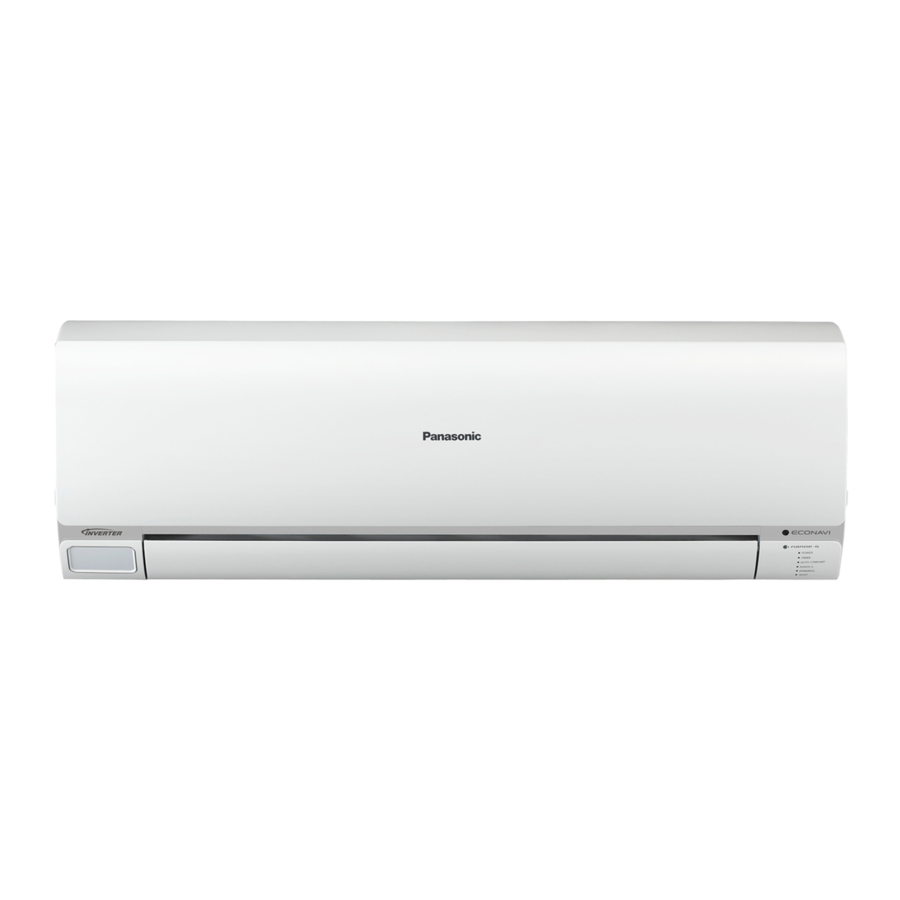

Panasonic CS-E7NKR Operating Instructions Manual

Hide thumbs

Advertisement

QUICK GUIDE
QUICK GUIDE

Operating Instructions

Model No.
Indoor Unit
CS-E7NKR
CS-E9NKR
CS-E12NKR
CS-E15NKR
CS-E18NKR
CS-E21NKR
CS-E24NKR
CS-E28NKR
Before operating the unit, read these operating
instructions thoroughly and keep them for future
reference.
© Panasonic Appliances Air-Conditioning Malaysia
Sdn. Bhd. 2012. Unauthorized copying and distribution
is a violation of law.

Air Conditioner

Outdoor Unit
CU-E7NKR
CU-E9NKR
CU-E12NKR
CU-E15NKR
CU-E18NKR
CU-E21NKR
CU-E24NKR
CU-E28NKR
F568746
