User Manual
mPM-100B
mini Power Meter

INTRODUCE

mPM-100 (mini Power Meter) is a very small and lightweight optical
power meter. mPM can be operated as a stand-alone power meter
with LCD, battery, buttons and LED indicators. Also it has a micro
USB 2.0 port to communicate with PC/Laptop and Android
Smartphone. Also it is communicated with iPhone and Android
phone by Bluetooth. Its universal 2.5mm adapter is used to accept
FC, SC, ST, E2000 connectors for applications such as FTTH, PON
and CATV network. The multiple pre-calibrated wavelengths can
meet any testing requirement for the variety applications. mPM has
a built-in rechargeable battery which can be easily charged by
usual smartphone charger (micro USB 2.0 type).

AVAIABLE APPLICATIONS

▪ Fiber To The Home (FTTH), PON and CATV Network
▪ Fiber Optic Installation and Maintenance
▪ Fiber Optic Product Manufacturers and Installers
▪ Fiber Optic Service Activation & Troubleshooting

STANDARD PACKAGE

a. Power Meter (included Battery)
b. Smart USB Cable (Smartphone to mPM-100)
c. PC USB Cable (PC to mPM-100)
d. Necklace
e. Manual
f. Case

WARRANTY

mPM-100 you bought is passed our all inspection and then is
shipped to the customers. TheFibers give you a warranty for one
year from the buying date. During the warranty period, the returned
product by freight prepaid from the customer, TheFibers will provide
repair and replacement for any defective product without additional
charge which is needed to repair or replacement.
However please careful that the following are expressly NOT
COVERED under warranty:
▪ Any loss, damage by using un-approved Battery Charger
▪ In case the serial or warranty sticker is removed
▪ Failure to use products under abnormal operating conditions
▪ Any loss, damage by user fault
▪ Any damage by disassembly without permission

KEY FEATURES

• Very small and lightweight optical power meter
• Communicate with PC/Laptop as well as Smartphone (iPhone and
Android) via micro USB 2.0 and Bluetooth included Smartphone
Application Software and PC Software
• Calibrated multi wavelengths included 980nm and 1625nm
• Internal data storage upto 100 measurements (unlimited storage
via Smartphone)
• Pass/Fail indication for in-field compliance
• Universal 1.25mm Adapter could be added optionally
• Built-in rechargeable Battery
• Usual Smartphone Charger (micro USB 2.0 type) could be used

HARDWARE SPECIFICATIONS

Model
Calibrated Wavelength (nm)
mPM-100B-7 850, 980, 1300, 1310, 1490, 1550, 1625
mPM-100B-5 850, 1300, 1310, 1490, 1550
Measurement Range -60dBm ~ 10dBm
Accuracy +/-0.5dB @-20dBm
Resolution
Display unit
Adapter type Universal 2.5mm Adapter
Display LCD (with LED backlight), 3 LED indicators
Bluetooth Bluetooth 4.0 BLE (4m)
for Android phones and higher than iPhone 4S (IOS7.0)
Battery 3.7V Rechargeable Lithium Ion Polymer Battery
Battery Life 3 hours (continuous usage)
Data Storage 100 measurements
External interface
Dimension 102 (W) x 32 (H) x 24 (D) mm
Weight
1
Universal 1.25mm Adapter could be added optionally.
2
Usual Smartphone Charger (micro USB 2.0 type) is option.
3
Unlimited storage capacity via Smartphone.
4
Bluetooth spec is for mPM-100B version only.

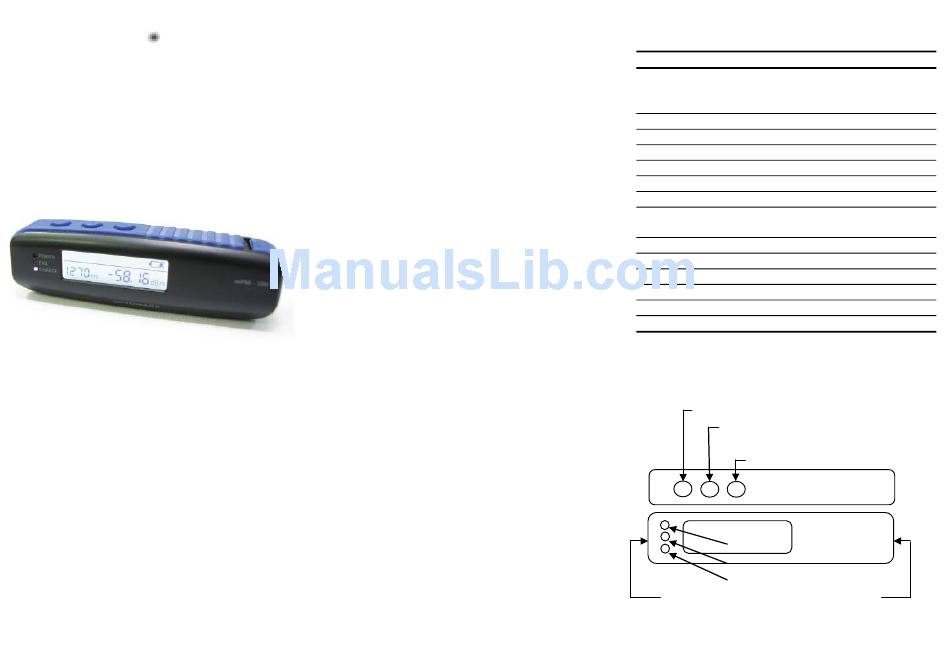

PRODUCT EXTERIOR OVERVIEW

Store button (Store & View data & Down key)
Wavelength button (Wavelength Selection &
turn on Bluetooth, erase all stored data & Up key)
Power button (Power On/Off & Backlight)
Power LED (Power-on Indicator)
PassFail LED (Fail Indicator)
Charge LED (Charge Indicator)
USB connector Universal Adapter
mPM-100B
0.01dB
dBm, nm
1
for SC,FC,ST,E2000
4
2
3
micro USB 2.0
70g
