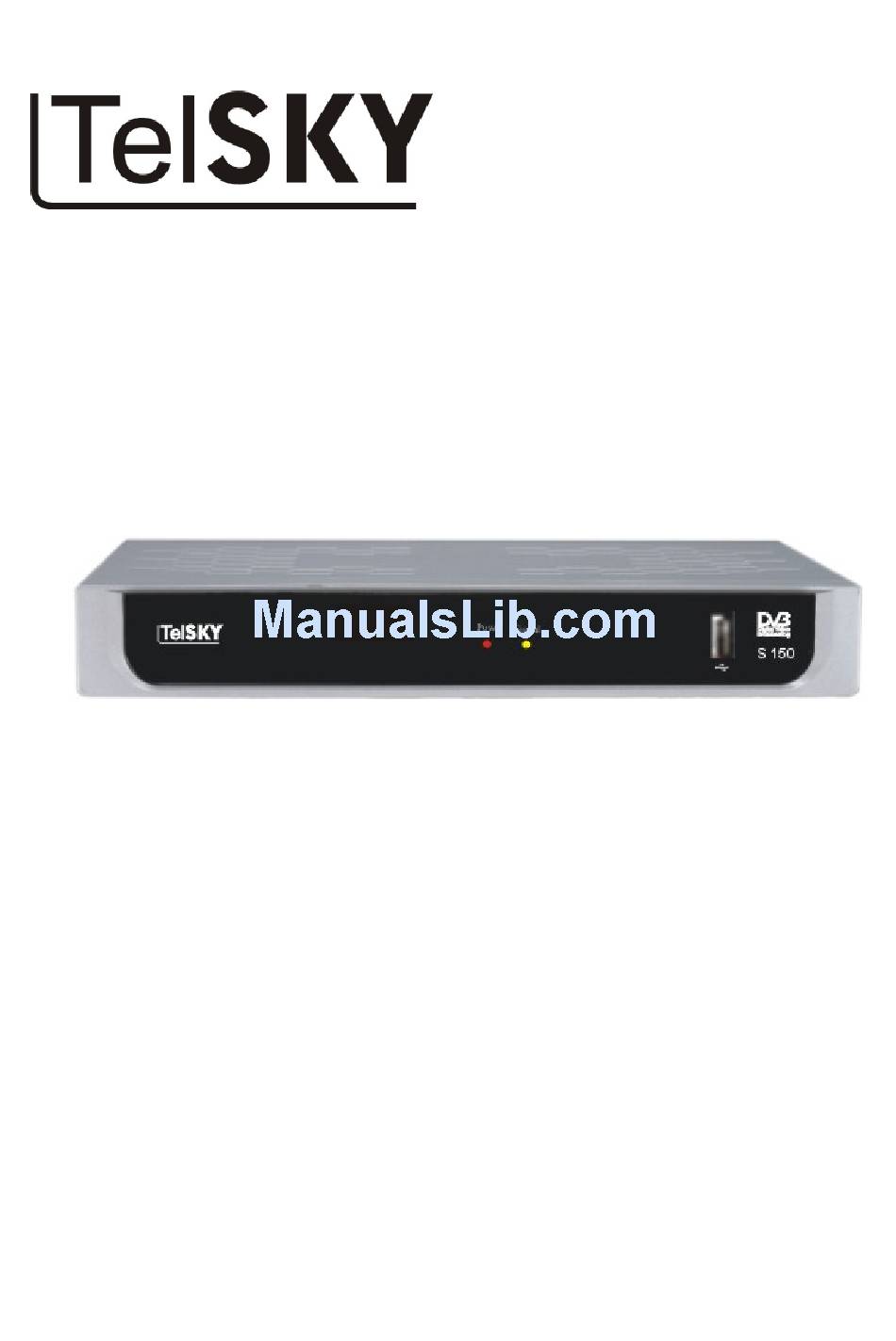

- Page 1 S 150 User manual Digital Satellite Receiver USB2.0 Media Interface...
-
Page 2: Table Of Contents
Contents Safety…………………………………………………………………………….……4 General Introduction………………………………………………………….…..…6 Front Panel / Rear Panel…………………………………………………………..8 Remote Control Unit………………………………………………………….……. 9 S.T.B Connection………………………………………………………………..12 Basic Operations………………………………………………………………..14 1. USER SETTING………………………………………………………………...17 1.1 OSD setting……………………………………………………………….…...17 1.2 A/V output setting………………………………………………………………17 1.3 Local time setting……………………………………………………………….18 1.4 Timer setting…………………………………………………………………..18 1.5 Parental Control……..………………………………………………………...18 1.6 Local Games………….………………………………………………………..19 2. - Page 3 Contents 3.4 Skip channel…………………………………………………………………..23 3.5 Lock channel…………………………………………………………………...23 3.6 Set Favorite….………………………………………………………………….23 4. SYSTEM SETTING……………………………………………………………..24 4.1 System information……………………………………………………………..24 4.2 Factory Default.………………………………………………………………..24 5. USB ………………………………………………………………………………25 5.1 USB Media………………………………………………………………………25 5.2 Software Update………………………………………………………………26 5.3 Database backup………………………………………………………………26 Trouble Shooting………………………………………………………………….…27 Glossary……………………………………………………………….……………...28 Specification………………………………………………………………………….30...
-
Page 4: Safety Instructions
Safety Instructions This STB has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully. MAIN SUPPLY :AC 100/240V, 50/60Hz, 30W. OVERLOADING :Do not overload a wall outlet, extension cord or adapter as this may result in fire or electric shock. - Page 5 Safety Instructions CONNECTION TO THE SATELLITE DISH LNB :Disconnect the STB from the main supply before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE LNB. CONNECTION TO THE TV :Disconnect the STB from the main supply before connecting or disconnecting the cable from TV.
-
Page 6: General Introduction
General Introduction INTRODUCTION This manual will help you learn basic functions such as installation, selecting channels and many other functions of the STB. All functions can be operated by the remote control. You can easily install it by selecting ”Installation” function and upgrade its software through communication cable. - Page 7 General Introduction UNPACKING Unpack the unit and check to make sure that all of the following items are included in the packaging. 1 x Remote Control Unit (RCU) 1 x User Manual 2 x AAA batteries 1 x Digital Satellite Receiver We hope you enjoy using your digital satellite receiver!
-
Page 8: Front Panel/ Rear Panel
Front Panel/ Rear Panel Front Panel USB 2.0 media interface Rear Panel Symbol Function LNB INPUT Use to connect an antenna. TV SCART For the video/audio input of the TV. Digital Audio: DSPDIF format sound by coaxial and optical output... -
Page 9: Remote Control Unit
Remote Control Unit... - Page 10 Remote Control Unit Switches between Operation and Standby modes. 0–9 Changes channels or selects the menu options. SUBTL Subtitle functions Selects favorite channel list or current channel list in the view mode. In Edit Channel mode’s“Add favorite” menu it changes the right window’s channel list. VOL(◄/►) Turns up/down volume.
- Page 11 Remote Control Unit NEXT Press to skip the playing file to play the next file MUTE Turns sound on or off. TV/SAT Switch between TV and SAT mode. ( This function only valid to Terrestrial TV program that is connected and deliver by Modulator of this STB ) RECALL Press to jump to previous channel.
-
Page 12: Connection
S.T.B Connection Various equipment and TV/VCR can be connected to STB. This manual will explain common ways to connect to the equipment. If you experience any problem, please contact your sales agency. How to connect the STB to a TV set (1) Connect one end of the SCART cable to the TV SCART socket on the back of the STB and the other end to the SCART input socket on your TV. - Page 13 S.T.B Connection 3. How to connect the Audio system ① Connect the AUDIO R, L socket of the STB to the Audio System like HI-FI, Amplifier, etc.. ① Audio System must capable of stereo audio ability. ① If Digital Audio or S/PDIF Optical output are available on STB, you can get better stereo experience.
-
Page 14: Basic Operations
Basic Operations BASIC OPERATIONS Switch on STB Switch the [Device’s Main Power] switch on. Standby Mode: Press [ Power] button on RCU to switch from TV/Radio mode to standby mode; In standby mode press [Power] button again to switch back to TV/Radio mode. - Page 15 Basic Operations Pause In Tv/Radio mode, press the [Pause] button to stop the display. The sound of the channel will continue. Press [Pause] button again to continue the display at the actual moment. AUDIO In TV mode, press the [Audio] button to open the audio mode window. Select the item you want to adjust with [Channel Up/Down] and change the value with [Volume Up/Down].
- Page 16 Basic Operations OK advance List Press OK button on the remote control, the channel list will be displayed, there are total 10 channels as well as brief information of channel in one page, and press ”CH” buttons and ”Vol” buttons to move in the list, and press “OK”...
-
Page 17: User Setting
Plug in the STB, and power on, there are foreign languages for your choice, choose the one you prefer. Then, pls press “Menu” on the remote control to get started. USER SETTINGS 1.1 OSD setting Select the preferred languages and OSD transparency. -
Page 18: Local Time Setting
1.3 Local Time setting To set the local time and date to your STB, then save it. Time Zone Choose the time zone of your country belong to. Local Date Set the Local Date. Local Time Set the Local Time. Summer Time If you set summer time to “ON”, then your local time should add one hour more. -
Page 19: Local Games
User settins Channel Manager Lock: To lock the Channel Edit menu to prevent unauthorized adjusting of Channel. Installation Lock: To lock the installation menu to prevent unauthorized adjusting of Installation. System Setting Lock: To lock the System Setting menu to prevent unauthorized adjusting of System Setting. -
Page 20: Installation
INSTALLATION 2.1 Antenna Setting Your STB can be easily installed by using “Antenna Setting” Menu, Selecting your installed Satellite on the right side, and press “Vol+” button to enter into left side, then set all the other figures such as LNB type; Frequency; 22KHz; DiSEqC control;... -
Page 21: Transponder List
2.3 Transponder List Add TP Press Green button you can add a TP. Input the frequency value and symbol rate value by numeric key, choose the correct Polarization, Horizontal or Vertical, then save it. Edit TP Press yellow button you can edit the current TP. -
Page 22: Usals Setup
Ref position Adjust the Move Step from 1 to 10. (Reset) Calculate Reset the configuration. 2.5 Usals Setup To set up the USALS system onto your STB. If you have a USALS motorized system, you must set your position (latitude and longitude) in order to calculate all motor positions for viewable satellites. -
Page 23: Edit Channels
CHANNEL MANAGER You can easily access to any TV and Radio programs variable functions available from this STB, and enjoy your digital entertainment TV fun. 3.1 Edit channels Press Red button to rename the channels name . 3.2 Delete channel Press the “RED”... -
Page 24: System Setting
SYSTEM SETTING 4.1 System Information Here you can find the receiver Hardware and SW information. And you can confirm your SW version here by the SW Version numder and Date. If you have any HW or problems, please provide this information to the dealer/distributors. -
Page 25: Usb
With the USB2.0 interface, you will have a wonderful media life with your receivers. Supported Device: Most of popular USB2.0 Hard Drive Disk can be supported by our STB, however due to there are too many types of HDD available in the market, if you find one particular HDD can not work with our STB, please kindly provide it to us, and we will be happy... -
Page 26: Software Update
Picture Go to USB pictures menu, choose path to photo files, for the picture selected, there is preview in right side, and use “OK” button to full screen display. Press “Exit” or “USB Stop” to stop and back to picture menu. Movie Go to USB movie menu, choose path to video files, select one and press “USB Play”... -
Page 27: Troubleshooting
Troubleshooting When you found some problems about this STB, please check the table as below. Because these may not be any serious problems: Fault Phenomenon probably reasons Resolve Put firmly the power plug to the Power on, but no Please carefully check the socket on display on screen power plug, to see it is in... -
Page 28: Glossary
Glossary (1) 22KHz switch A tone that can be sent via the LNB coax, this tone can control the LNB or switches on the coax cable. Do not interfere with the DC or 22KHz tone that the receiver sends to the dish. (2) Antenna A device that collects and radiates electromagnetic waves includes a satellite dish and a broadband antenna. - Page 29 Glossary (11) Packet Identifier (PID) A set of numbers that identifies transport stream packets containing data from a single data stream (12) Polarization Satellite waves are polarized. They can be linear or circular. Linear polarity is Vertical or Horizontal, circular polarity is Right-hand and Left-hand circular polarity.
-
Page 30: Specification
Specification 1. Tuner & Demodulator Input Frequency Range 950MHz ~ 2150 MHz RF Input Signal Level -65 ~ -25dBm RF Impedance RF Bandwidth 55MHz/8MHz(Under 5 Msps) LNB Power 13/18DC, +/-5%, 0.5Amax, 1.8Apeak overloaded protect LNB Tone Switch 22KHz +/- 2KHz, 0.65Vp-p+/-0.15V DiSEqC Contro V1.0, V1.2, Tone burst A/B Demodulation...
