Summary of Contents for In Phase IPS 720I

  • Page 1: Instruction Manual

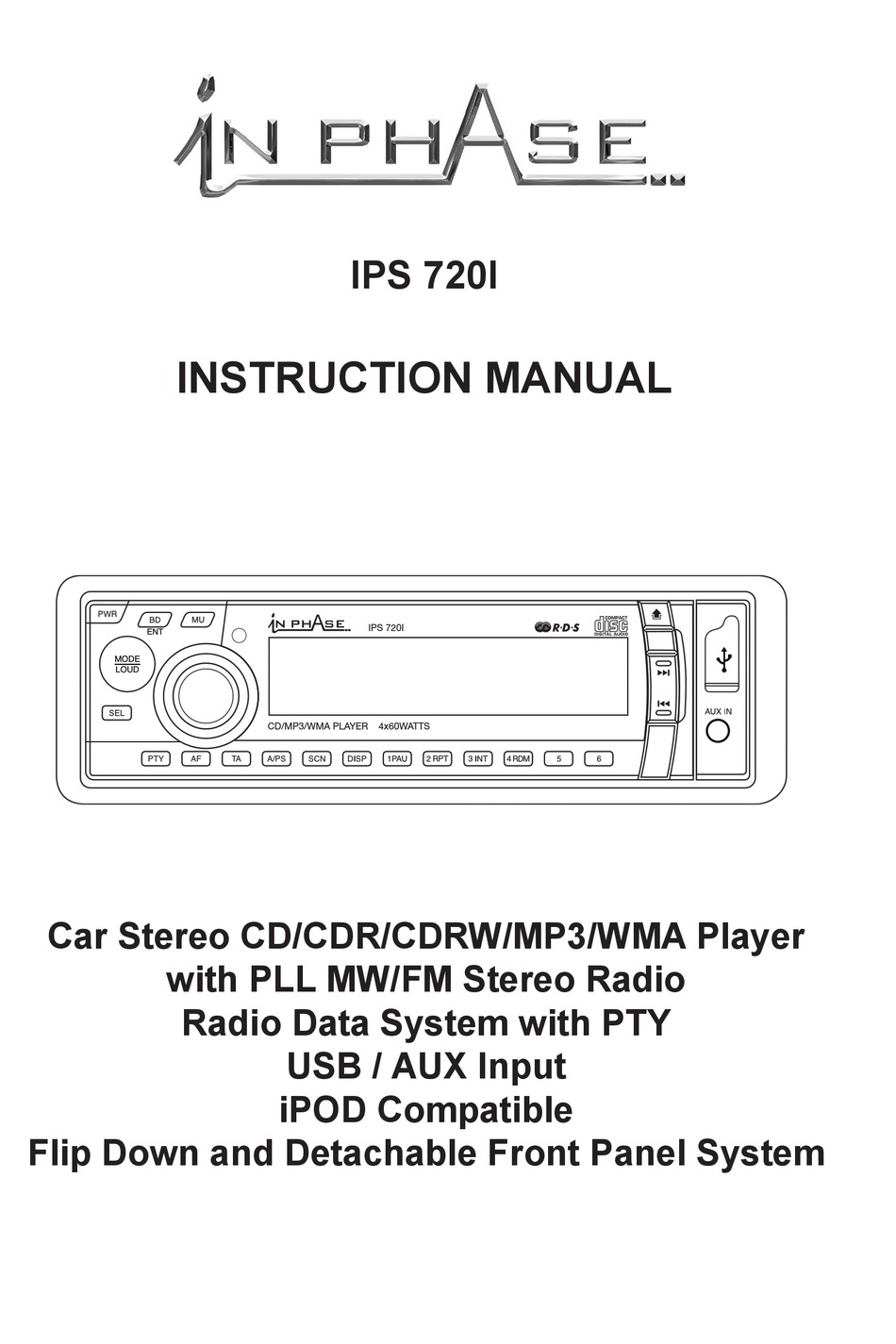

    IPS 720I INSTRUCTION MANUAL IPS 720I MODE LOUD CD/MP3/WMA PLAYER 4x60WATTS Car Stereo CD/CDR/CDRW/MP3/WMA Player with PLL MW/FM Stereo Radio IPS 720I Radio Data System with PTY MODE LOUD USB / AUX Input iPOD Compatible CD/MP3/WMA PLAYER 4x60WATTS Flip Down and Detachable Front Panel System...
  • Page 2: Location Of Parts And Controls

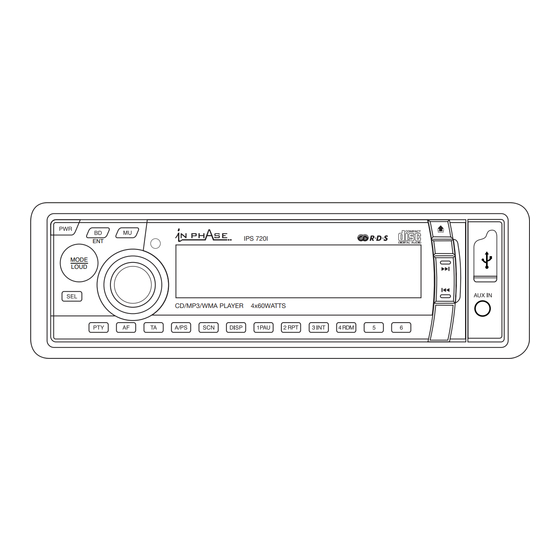

    LOCATION OF PARTS AND CONTROLS IPS 720I IPS 720I MODE LOUD MODE LOUD CD/MP3/WMA PLAYER 4x60WATTS CD/MP3/WMA PLAYER 4x60WATTS 1. POWER ON/OFF (PWR) 2. FUNCTION SELECT BUTTON: CONTROLS FOR BASS/ TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA LOUD POWER MODE VOL / EON / DSP (SEL) IPS 720I BAND 3. VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/ TUNE/SEEK ENTER MODE TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA LOUD VOL / EON /DSP AS/PS 4. PRESET STATIONS (1,2,3,4,5,6)
  • Page 3: Iso Connector

    ISO CONNECTOR RCA Jack Line Out: RCA Jack Line In: : Red (right) : Red (right) : White (left) : White (left) CONNECTOR A 4. MEMORY +12V 5. AUTO ANTENNA OUTPUT 7. +12V (TO IGNITION KEY) 8. GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period. CONNECTOR B 1. REAR RIGHT SPEAKER (+) 2. REAR RIGHT SPEAKER (-) 3. FRONT RIGHT SPEAKER (+) 4. FRONT RIGHT SPEAKER (-) 5. FRONT LEFT SPEAKER (+) 6. FRONT LEFT SPEAKER (-) 7. REAR LEFT SPEAKER (+) 8. REAR LEFT SPEAKER (-) Maintenance FUSE REPLACEMENT If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repair center.
  • Page 4: To Support The Unit

    TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE . DASH BOARD . HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL Before detaching the front panel, be sure to press the PWR button (1) OFF first. Then press the ( ) button, let the Front Panel arrive in horizontal position and detach the panel by pulling it towards you as illustrated.
  • Page 5: Preset Stations

    1. POWER ON/OFF (PWR) By pressing this key, the unit is on or off. This unit is turned on by pressing any key. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / INITIAL VOLUME / CT / TA VOL / EON / DSP (SEL) 3. VOLUME UP/DOWN Turning VOL knob (right/left) to adjust VOL/BAS/TRE/BAL/FAD. To select other functions, press the SEL button shortly until the desired functions are shown on the display. Figure 1 shows how to control functions that are selected using the SEL button. Fig. 1 Selection of sound control functions 1. VOL 2. SEL 3. BASS 4. TRE 5. BAL 6. FAD Increase or decrease the volume by turning VOL knob (right/left). These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER. 2 sec. IN VOL TA VOL Press and hold SEL to adjust INIT VOL /CT/TA VOL/EON ON/DSP INIT VOL: Initial Volume when the unit turns on.
  • Page 6: Display (Disp)

    – When the unit in CD/MP3 mode, it will switch to radio mode temporarily. – If the volume level was under the threshold point, it will be raised to the threshold point. – When TP station is received, TP segment is turned on in LCD display. 7. ‘PTY’ function (PROGRAM TYPE) When pressed momentarily, it is activated as TPY ON/OFF function and start to search corresponding PTY information. And stop if the corresponding PTY information is detected. By pressing this key longer than 2 sec., you can select PTY mode by turning Volume UP/DOWN knob as below. NEWS--AFFAIRS--INFO--SPORT--EDUCATE--DRAMA--CULTURE--SCIENCE--VARIED--POP-- ROCK--EASY M--LIGHT M--CLASSIC--OTHER M--WEATHER--FINANCE--CHILDREN--SOCIAL- -RELIGION--PHONE IN--TRAVEL--LEISURE--JAZZ--COUNTRY--NATION. M--OLDIES--FOLK M--DOCUMENT--TEST--ALARM. 8. DISPLAY (DISP) When this key is pressed, it is operated as the conversion of each display mode as follow. 1) In case of receiving RDS station. RADIO MODE PS ---- PTY ---- FREQ ---- CT CD/MP3/WMA PLAYER MODE CDP ---- CT ---- PTY ---- FREQ ---- PS 2) In case of receiving NON RDS station RADIO MODE FREQ ---- CLOCK...
  • Page 7: Cd/Mp3/Wma Control Location Of Parts

    CD/MP3/WMA CONTROL LOCATION OF PARTS TRACK/SEARCH BUTTON (11) FORWARD AND REVERSE TRACK SEARCH (or changing songs) Press the SKIP button ( ) during play to go to the desired track(song)..REVERSE ..FORWARD Press and hold the SKIP button ( ) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. 17. CD SLOT 18. CD EJECT BUTTON Press the EJECT button to remove the CD. 19. PAUSE BUTTON During “PLAY”, press (19) ‘PAU’ button to “PAUSE”. Press it again to resume play. 20. REPEAT BUTTON When this button is pressed, “RPT ON” indication is displayed and play of the selected track will be continually repeated until the Track repeat mode is cancelled by pressing ‘RPT’ button again. 21.
  • Page 8: Technical Specifications

    More AUX input: Additional Auxiliary RCA input jack on the back of the unit can be used to connect more external audio sources such as a DVD player, Video game player and other portable audio devises. Connecting iPOD You can connect your iPOD portable device and play songs from the car stereo. Only the audio feature is supported, other features of iPOD is not supported. Playing Songs in iPOD You now can play songs in iPOD once the cable is properly connected. 1. Press MODE repeatedly until I-POD shows in the display. 2. Press A/PS. 3. Rotate VOL to select PLAYLIST – ARTISTS – ALBUMS – SONGS – GENRES – COMPOSER. 4. Press VOL. If you are aware on how to use iPOD, the way to use the car stereo feature is basically just the same. Take note of the equivalent key function below. Car Stereo iPOD Function Rotate VOL knob Rotate CLICK WHEEL Up/down category/file browsing...
