In Phase IPS 247BT Instruction Manual

Car stereo cd/cdr/cdrw/mp3/wma player with pll mw/fm stereo radio radio data system with pty usb/mmc/sd card input bluetooth function in mobile phone and detachable front panel system
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL

MD/MU
BD/PAU
1
14
9
MD/MU
Car Stereo CD/CDR/CDRW/MP3/WMA Player
with PLL MW/FM Stereo Radio
Radio Data System with PTY
BD/PAU
USB / MMC / SD Card Input
Bluetooth Function in Mobile Phone
20
10
and Detachable Front Panel System
IPS 247BT
IPS 247BT
1 TOP
SCAN
2
3
22
IPS 247BT
SCAN
1 TOP
11
13
12
19
CD/MP3/WMA PLAYER
4x60WATTS
17
15
CD/MP3/WMA PLAYER
4x60WATTS
21
23
24
4
(1-6)
DISP
6
18
16
27
DISP
25
8
7
5
26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPS 247BT and is the answer not in the manual?

Questions and answers

Related Manuals for In Phase IPS 247BT

Summary of Contents for In Phase IPS 247BT

  • Page 1: Instruction Manual

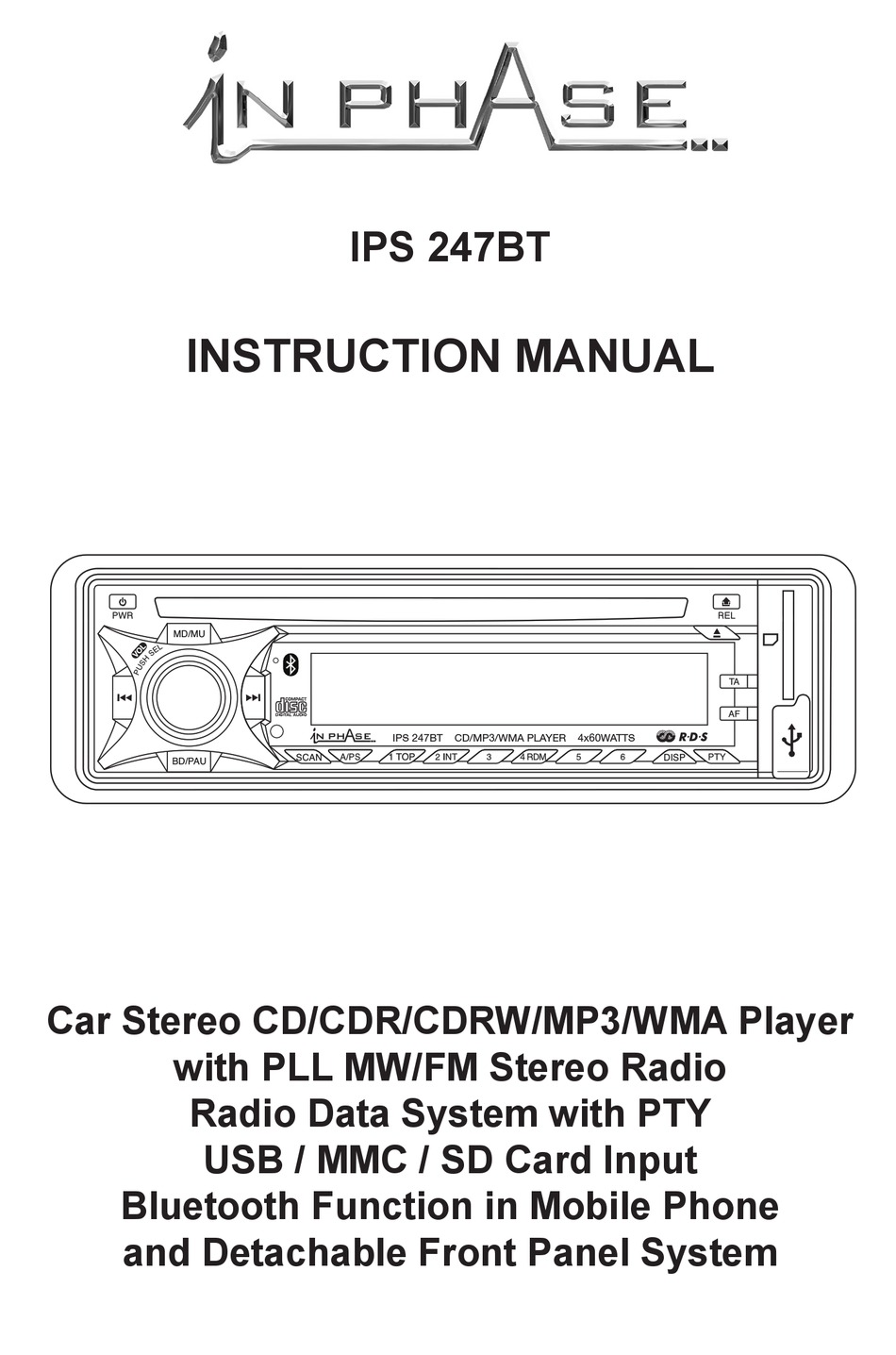

    IPS 247BT INSTRUCTION MANUAL MD/MU IPS 247BT CD/MP3/WMA PLAYER 4x60WATTS 1 TOP SCAN DISP BD/PAU MD/MU Car Stereo CD/CDR/CDRW/MP3/WMA Player with PLL MW/FM Stereo Radio IPS 247BT CD/MP3/WMA PLAYER 4x60WATTS Radio Data System with PTY SCAN 1 TOP DISP BD/PAU...

  • Page 2: Location Of Parts And Controls

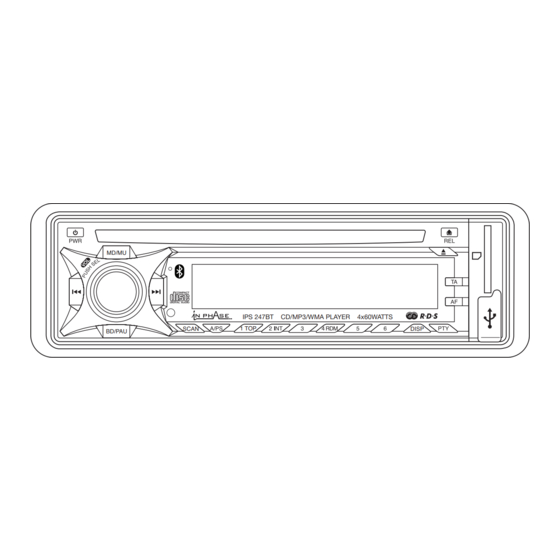

    IPS 247BT CD/MP3/WMA PLAYER 4x60WATTS 1 TOP SCAN DISP BD/PAU LOCATION OF PARTS AND CONTROLS MD/MU IPS 247BT CD/MP3/WMA PLAYER 4x60WATTS 1 TOP SCAN DISP BD/PAU (1-6) 1. POWER ON/OFF ( 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER/TA SEEK/MASK DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/SCROLL/BEEP/STEREO/ LOCAL/PAIRING 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER/TA SEEK/MASK DPI/ RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/SCROLL/BEEP/STEREO/LOCAL/ PAIRING 4. PRESET STATIONS (1,2,3,4,5,6) 5. ‘AF’ function (ALTERNATIVE FREQUENCIES) 6. ‘TA’ function (TRAFFIC ANNOUNCEMENT)
