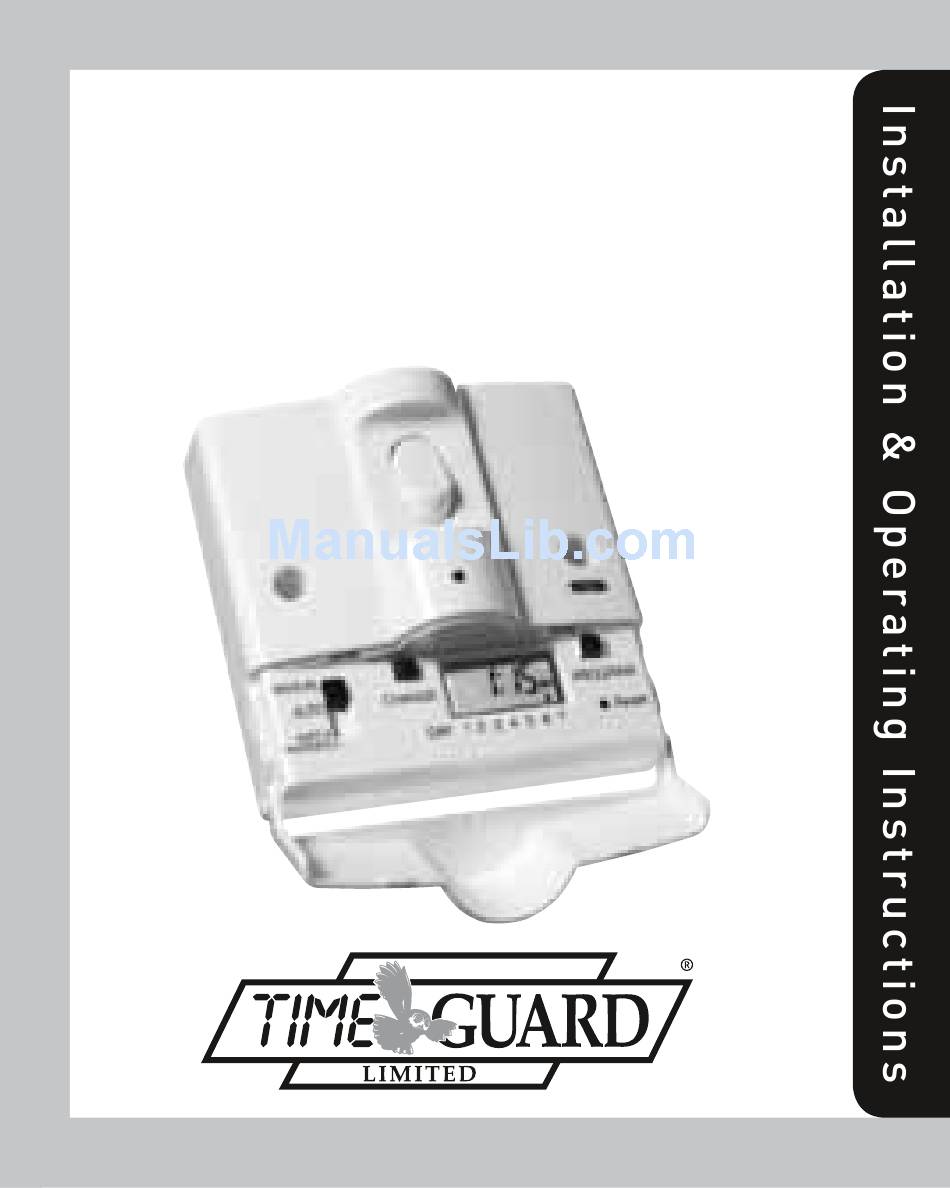

- Page 1 7 Day Digital Lightswitch with Optional Dusk Start Cat No. ZV700...
- Page 2 – see page 2 1. General The ZV700 combines the function of a manual lightswitch with automatic timed control of lighting on a weekly basis available at the slide of a switch. There is a further option of starting an automatic lighting...
- Page 3 ZV700 – Lower Flap Open Override button Guarded – also used in tamper conjunction with resistant button the programme used to button to set the programme clock and ON/ clock and OFF times, days times/days for and random ON periods facility.
-
Page 4: Important Installation Instructions
Important Installation Instructions IF IN DOUBT CONSULT AN ELECTRICIAN. Switch off mains electricity Remove the existing light switch and transfer the wires to the security switch according to the following instructions. If the switch is an ON/OFF two wire type, those wires should be inserted into the terminals marked L1 and COM. -
Page 5: Operation In Auto Mode
2. Commissioning After having installed the unit in accordance with the installation and wiring instructions on the back of the blister card, move the slide switch to the AUTO & PHOTOCELL position (this is important because the unit always powers up in this mode regardless of switch position), and switch ON the supply to the unit. -
Page 6: Programming Overview
In this mode the rocker switch can be used manually to turn the lamp OFF once a programmed ON period has started, but not to turn it ON during a programmed OFF period. ZV700 – Programming Instructions Override button (also... -
Page 7: Normal Operating Mode
Only two setting buttons are required, <Change> and <Program>. The <Program> button is guarded to minimise inadvertent programme change. In normal operating mode the <Change> button is used to switch ON or OFF, overriding the timeswitch until the next programmed OFF or ON time. During programming the <Change> button is used to set the hours, minutes and days. -
Page 8: Programming Sequence
Programming sequence Setting clock Programme 4 ON Programme 1 ON Programme 4 OFF Programme 1 OFF Programme 5 ON Programme 2 ON Programme 5 OFF Programme 2 OFF Programme 6 ON Programme 3 ON Programme 6 OFF Programme 3 OFF Operation Mode Note: Pauses between button presses greater than 1 minute during programming will result in automatic return to the operating mode. - Page 9 11 To Set Programme ON/OFF Times (after clock setting) It must be remembered that the unit has a total of six programmes. The user is now able to set the day(s) that the first programme will operate on. The alternatives are: 1 2 3 4 5 6 7 = 5 days (Weekdays) Mo Tu We Th Fr ●...
- Page 10 vi Repeat steps i to v to set the remainder of the 5 programme ON/OFF times and day(s) as required. Note: Any unused ON/OFF programmes must be left blank and should be skipped by pressing the <Programme> button until the display shows normal operating mode.
-
Page 11: Random Operation
15 Programming Across Midnight This can be achieved by programming the required ON time in the initial day and the required OFF time in the subsequent day. The unused times in these two programmes can either be left blank (--:--) or used for an OFF time during the initial day and an ON time during the subsequent day. - Page 12 Should you encounter any difficulty please contact our helpline on 0845 3554504 For assistance with the product please contact: HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Office: 020 8452 1112 or email csc @ timeguard.com...
