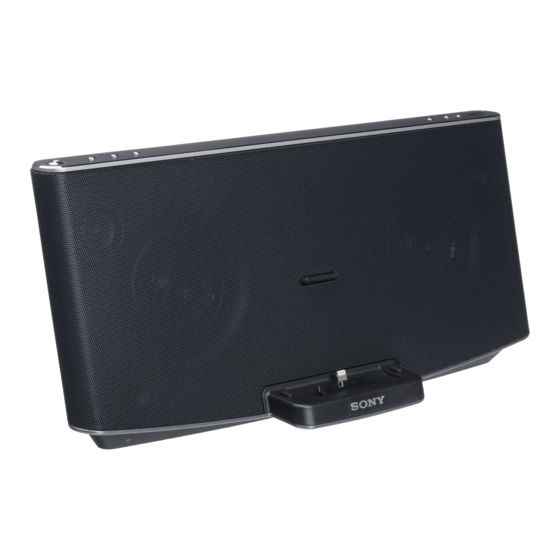

Sony RDP-X200iPN Reference Manual

Personal Audio
System
©2013 Sony Corporation Printed in China
RDP-X200iPN
— with respect to the supply to the public of the RLAN
WARNING
access to telecom networks and services, by the
Ministerial Decree 28.5.2003, as amended, and Art.
25 (general authorization for electronic communications
To reduce the risk of fire or electric shock, do
networks and services) of the Code of electronic
not expose this apparatus to rain or moisture.
communications.
To reduce the risk of fire, do not cover the ventilation of On Copyrights and Licenses
The Bluetooth® word mark and logos are owned by the
the apparatus with newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the apparatus. Bluetooth SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other trademarks and trade
To reduce the risk of fire or electric shock, do not expose
names are those of their respective owners.
this apparatus to dripping or splashing, and do not place
objects filled with liquids, such as vases, on the apparatus. iPad, iPhone, iPod, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
Do not install the appliance in a confined space, such as a
countries.
bookcase or built-in cabinet.
Lightning is a trademark of Apple Inc.
Do not expose the batteries (battery pack or batteries
"Made for iPod, " "Made for iPhone, " and "Made for iPad"
installed) to excessive heat such as sunshine, fire or the like
mean that an electronic accessory has been designed to
for a long time.
connect specifically to iPod, iPhone, or iPad, respectively,
and has been certified by the developer to meet Apple
As the main plug is used to disconnect the unit from the
performance standards. Apple is not responsible for the
mains, connect the unit to an easily accessible AC outlet.
operation of this device or its compliance with safety and
Should you notice an abnormality in the unit, disconnect
regulatory standards. Please note that the use of this
the main plug from the AC outlet immediately.
accessory with iPod, iPhone, or iPad may affect wireless
The unit is not disconnected from the AC power source
performance.
(mains) as long as it is connected to the wall outlet, even if
the unit itself has been turned off.
Use of this radio equipment is not allowed in the
geographical area within a radius 20km from the centre of
The nameplate and important information concerning
Ny-Alesund, Svalbard in Norway.
safety are located on the bottom exterior of the main unit
and on the surface of the AC adaptor.
CAUTION
Precautions
Danger of explosion if battery is incorrectly replaced.
Replace only with the same type.  To disconnect AC power, grasp the plug itself, not the cord.
 Since a strong magnet is used for the speaker, keep credit
Notice for customers: the following information is
cards using magnetic coding or spring-wound watches,
only applicable to equipment sold in countries
CRT-based TVs, or projectors, etc., away from the unit
applying EU directives
to prevent possible damage from the magnet.
This product has been manufactured by or on behalf of
 Do not leave the unit in a location near a heat source such
Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-
as a radiator or airduct, or in a place subject to direct
0075 Japan. Inquiries related to product compliance based
on European Union legislation shall be addressed to the sunlight, excessive dust, mechanical vibration, or shock.
authorized representative, Sony Deutschland GmbH,
 Allow adequate air circulation to prevent internal heat
Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any build-up. Do not place the unit on a surface (a rug, a
service or guarantee matters, please refer to the addresses blanket, etc.) or near materials (a curtain) which might
provided in the separate service or guarantee documents. block the ventilation holes.
 Should any solid object or liquid fall into the unit,
unplug the unit and have it checked by qualified
personnel before operating it any further.
Hereby, Sony Corp., declares that this equipment is in
 During a thunderstorm, do not touch the antenna
compliance with the essential requirements and other
(aerial) and plug.
relevant provisions of Directive 1999/5/EC. For details,
 Do not touch the unit with wet hands.
please access the following URL:
http://www.compliance.sony.de/  Do not place the unit anywhere near water.
NOTES ON LITHIUM BATTERY
Use of the RLAN network is governed:
 Wipe the battery with a dry cloth to assure a good
— with respect to private use, by the Legislative Decree of
contact.
1.8.2003, no. 259 ("Code of Electronic
 Be sure to observe the correct polarity when installing
Communications"). In particular Article 104 indicates
the battery.
when the prior obtainment of a general authorization is
required and Art. 105 indicates when free use is
 Do not hold the battery with metallic tweezers,
permitted;
otherwise a short-circuit may occur.
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
4-461-402-33(1)
Union and other European countries with
separate collection systems)
This symbol on the product or on its packaging indicates
that this product shall not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative
Reference Guide GB
consequences for the environment and human health,
which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will
help to conserve natural resources. For more detailed
information about recycling of this product, please contact
your local Civic Office, your household waste disposal
service or the shop where you purchased the product.
Applicable accessory: Remote control
Disposal of waste batteries (applicable
in the European Union and other
European countries with separate
collection systems)
This symbol on the battery or on the packaging indicates
that the battery provided with this product shall not be
treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol. The chemical
symbols for mercury (Hg) or lead (Pb) are added if the
battery contains more than 0.0005% mercury or 0.004%
lead.
By ensuring these batteries are disposed of correctly, you
will help prevent potentially negative consequences for the
environment and human health which could otherwise be
caused by inappropriate waste handling of the battery. The
recycling of the materials will help to conserve natural
resources.
In case of products that for safety, performance or data
integrity reasons require a permanent connection with an
incorporated battery, this battery should be replaced by
qualified service staff only.
To ensure that the battery will be treated properly, hand
over the product at end-of-life to the applicable collection
point for the recycling of electrical and electronic
equipment.
For all other batteries, please view the section on how to
remove the battery from the product safely. Hand the
battery over to the applicable collection point for the
recycling of waste batteries.
For more detailed information about recycling of this
product or battery, please contact your local Civic Office,
your household waste disposal service or the shop where
you purchased the product.
On Bluetooth communication
 Bluetooth wireless technology operates within a range of
about 10 meters.
Maximum communication range may vary depending
on obstacles (human body, metal, wall, etc.) or
electromagnetic environment.
The unit
Steel cabinet
Optimal performance
Limited performance
 The following conditions may affect the sensitivity of
Bluetooth communication.
— There is an obstacle such as a person, metal, or wall
between this unit and iPod.
— A device using 2.4 GHz frequency, such as a wireless
LAN device, cordless telephone, or microwave oven,
is in use near the unit.
— The unit is installed on a shelf made of steel.
 Because Bluetooth devices and wireless LAN
(IEEE802.11b/g/n) use the same frequency, microwave
interference may occur and resulting in communication
speed deterioration, noise, or invalid connection if this
unit is used near a wireless LAN device. In such a case,
perform the following.
— Use this unit at least 10 m away from any wireless
LAN device.
— If this unit is used within 10 m of a wireless LAN
device, turn off the wireless LAN device.
— Install this unit and iPod as near to each other as
possible.
 Microwaves emitting from a Bluetooth device may affect
the operation of electronic medical devices. Turn off this
unit and iPod in the following locations, as it may cause
an accident.
— where inflammable gas is present, in a hospital, train,
airplane, or a petrol station
— near automatic doors or a fire alarm
 This unit supports security capabilities that comply with
the Bluetooth standard to provide a secure connection
when the Bluetooth wireless technology is used, but
security may be insufficient, depending on the setting.
Be careful when communicating using Bluetooth
wireless technology.
 We do not take any responsibility for leakage of
information during Bluetooth communication.
 Connection with all Bluetooth devices cannot be
guaranteed.
— A device featuring Bluetooth function is required to
conform to the Bluetooth standard specified by
Bluetooth SIG, Inc. and be authenticated.
— Even if the connected device conforms to the above
mentioned Bluetooth standard, some devices may not
be connected or work correctly, depending on the
features or specifications of the device.
 Depending on the device to be connected, it may require
some time to start communication.
Note
Troubleshooting
 In the Reference Guide, "iPod" is used as a general
reference to functions on an iPod, iPhone or iPad, unless
otherwise specified by the text or illustrations.
General
If you have any questions or problems concerning your
The power does not turn on when the AC adaptor is
unit, please consult your nearest Sony dealer.
connected.
 Make sure the AC adaptor is connected to the wall outlet
General information firmly.
There is no sound.
 Adjust VOLUME +/− (VOL +/− on the remote).
Specifications
Noise is heard.
 Ensure that the unit is not near in-use portable phones,
etc.
iPod
The power indicator flashes.
DC out: 5 V
 The power indicator flashes when the unit receives a
MAX: 2.1 A
signal from the remote. In this case, the flashing does
not mean there is an error or fault.
Bluetooth
Output
When using an iPod on the Dock
Bluetooth Specification Power Class 2
Maximum communication range There is no sound.
Line of sight approx. 10 m* 1  Make sure the iPod is connected firmly.
 Make sure that the function for iPod is activated.
Frequency band
Operation is not performed.
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
 Make sure the iPod is connected firmly.
Communication System
 Check that the iPod is compatible with this unit. (See
Bluetooth Specification Version 2.1 + EDR (Enhanced
"Lightning connector works with.")
Data Rate)
The iPod does not charge.
Compatible Bluetooth Profiles * 2
 Make sure the iPod is connected firmly.
A2DP (Advanced Audio Distribution Profile)
 Make sure the AC adaptor is connected firmly.
AVRCP* (Audio/Video Remote Control Profile)
3
 Check that the iPod is compatible with this unit. (See
Supported codec *
4
"Lightning connector works with. " )
SBC (Subband Codec)
* 1
The actual range will vary depending on factors such as obstacles
When using the Bluetooth connection
between devices, magnetic fields around a microwave oven,
static electricity, reception sensitivity, aerial performance,
There is no sound.
operating system, application software, etc.
 Ensure that this unit is not too far from the iPod, or this
* 2
Bluetooth standard profiles provide the specifications for
unit is not receiving interference from a wireless LAN,
Bluetooth communication between devices.
other 2.4 GHz wireless device, or microwave oven.
*
3 Some operations may not be available for some models of iPod.
 Check that the Bluetooth connection is made properly
*
4 Codec: Audio signal compression and conversion format
between this unit and the iPod.
 Pair this unit and the iPod again.
General
 Keep away from metal objects or surfaces.
Speaker
 Make sure that the Bluetooth function is activated.
Woofer: Approx. 76 mm dia. × 2
Tweeter: Approx. 25 mm dia. × 2 Sound skips or the correspondence distance is short.
 If a device that generates electromagnetic radiation, such
Input
as a wireless LAN, other Bluetooth device(s), or a
AUDIO IN jack (ø 3.5 mm stereo minijack)
microwave oven is nearby, move away from such
Impedance: 50 kΩ
sources.
Average input level: 245 mV
 Remove any obstacle between this unit and the iPod or
Power output
move away from the obstacle.
20 W + 20 W (at 1% harmonic distortion)
 Locate this unit and the iPod as close to each other as
Power source possible.
Rated external power source: DC IN 20 V (with supplied AC
 Re-position this unit.
adaptor (AC 100 V - 240 V, 50 Hz/60 Hz))
 Re-position the iPod.
Dimensions
Connecting cannot be done.
Approx. 356.0 mm × 168.1 mm × 155.8 mm (w/h/d)
 Perform pairing again. (See "To pair with an iPod. " )
(incl. projecting parts and controls)
 Check that the iPod is compatible with this unit. (See
Mass
"Wireless music streaming compatible models. " )
Approx. 2.2 kg
Pairing cannot be done.
Supplied accessories
 Bring this unit and the iPod closer together.
Remote control (with a lithium battery) (1)
 Delete the unit from the iPod and perform pairing again.
AC adaptor (1)
 Check that the iPod is compatible with this unit. (See
AC power cord (1)
"Wireless music streaming compatible models. " )
Reference Guide (this document) (1)
Compatible iPod/iPhone/iPad
Audio-in
models
There is no sound.
 Make sure the audio connecting cable is connected
The compatible iPod/iPhone/iPad models are as follows.
firmly.
Update the software of the iPod/iPhone/iPad to the latest
 Make sure that the connected optional component is in
version before using it with this unit.
playback mode.
Lightning connector works with
 Make sure that the Audio-in function is activated.
iPhone 5s
The sound is low.
iPhone 5c
 Check the volume of the connected optional component.
iPhone 5
iPad Air
Remote control
iPad mini with Retina display
iPad (4th generation) The remote does not function.
iPad mini
 Replace the battery in the remote with a new one if it is
iPod touch (5th generation)
weak.
iPod nano (7th generation)*
 Make sure that you are pointing the remote at the
remote sensor on the unit.
Wireless music streaming compatible models
 Do not cover or place any objects directly in front of the
iPhone 5s
(Remote sensor) receiver.
iPhone 5c
 Remove any obstacles in the path of the remote and the
iPhone 5
unit.
iPhone 4s
 Make sure the remote sensor is not exposed to strong
iPhone 4
light such as direct sunlight or fluorescent lamp light.
iPhone 3GS
iPhone 3G
If the problem persists, consult your nearest Sony dealer.
iPad Air
iPad mini with Retina display
Preparations
iPad (4th generation)
iPad mini
iPad (3rd generation)
iPad 2 Power source
iPad
iPod touch (5th generation)
Auto power off
iPod touch (4th generation)
After playback of music (from an iPod on the Dock,
iPod touch (3rd generation)
Bluetooth connection, or optional component connected
iPod touch (2nd generation)
to the AUDIO IN jack) has finished, and if no operation is
iPod nano (7th generation)
performed for about 20 minutes, the unit will
automatically turn off.
* The remote command of "MENU, " ", " ", " and "ENTER" will
only work with iPhone, iPad, and iPod touch.
To use the AC adaptor
Design and specifications are subject to change without
1
Connect the supplied AC power cord to the AC
notice.
adaptor.
2
Connect the AC adaptor to the DC IN 20V jack
on the back of this unit firmly and plug it into a
wall outlet.
Note on the AC adaptor
 Use the supplied Sony AC adaptor only. The polarity of
the plugs of other manufacturers may be different.
Failure to use the supplied AC adaptor may cause the
unit to malfunction.
Remote control
Before using the supplied remote for the first time, remove
the insulation film.
Aim the remote at the (Remote sensor) of the unit.
The power indicator flashes when the remote's command is
received.
When to replace the battery
With normal use, the battery (CR2025) should last for about
6 months. When the remote can no longer operate the unit,
replace the battery with a new one.
 side facing up
Note
 If you are not going to use the remote for a long time,
remove the battery to avoid any damage that may be caused
by leakage or corrosion.
Continued on the reverse side
