Summary of Contents for Trueshopping 110CB2400

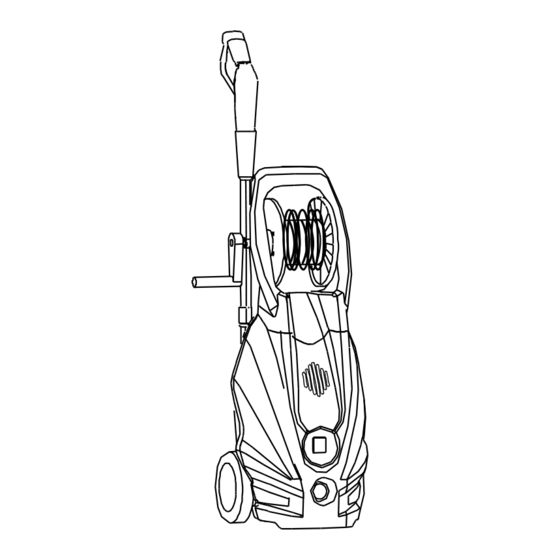

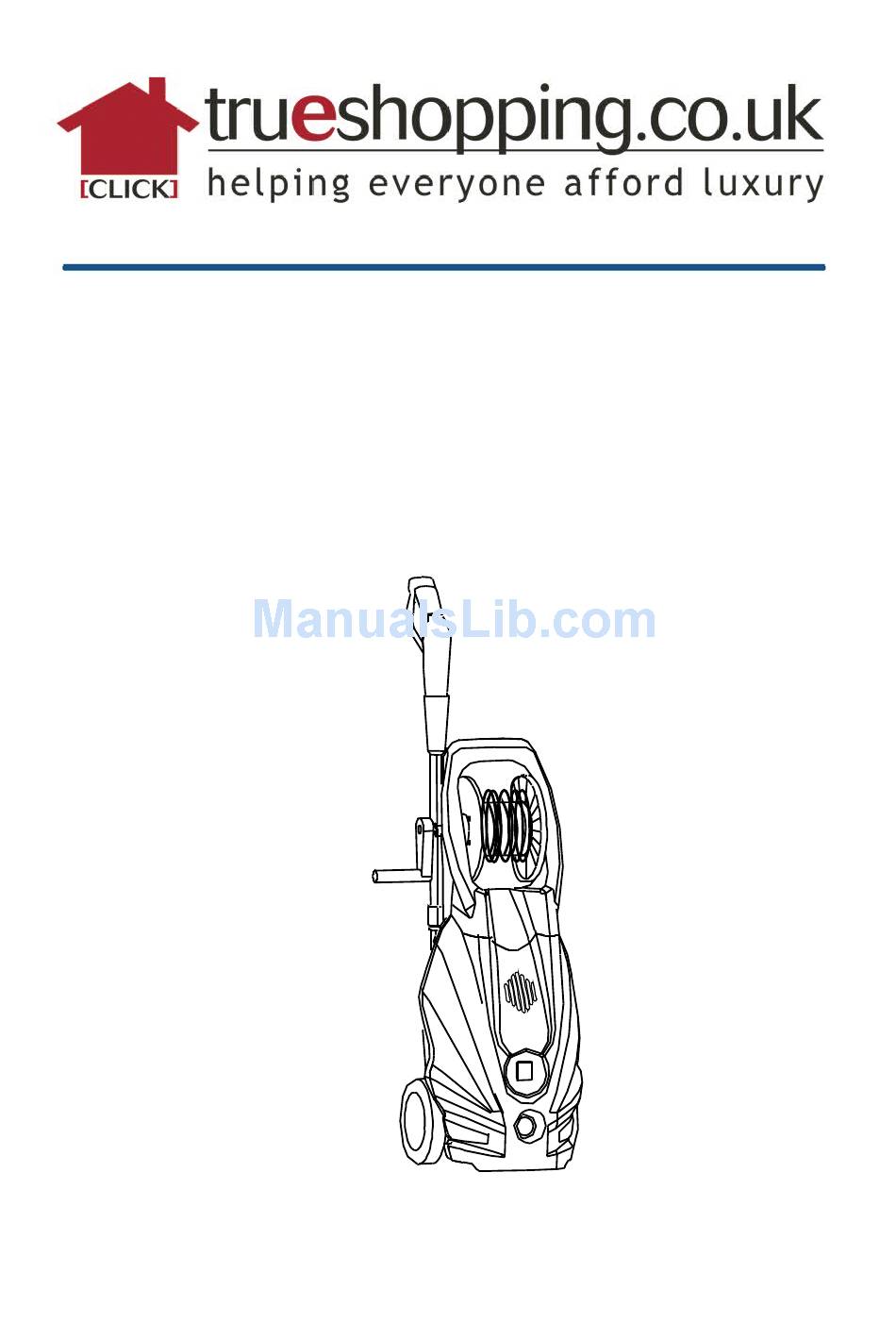

  • Page 1 Offering a wide selection of products at competitive prices Electric Pressure Washers 110CB2400...

  • Page 2: Instruction Manual

    Trueshopping Instruction Manual Introduction Do not use the machine without reading the Instruction Manual. Please save these instructions. The portable pressure washing machine is a highly specialised multifunctional machine with exceptionally reliable safety assurance, which must be inspected before use.
  • Page 3 Trueshopping The electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.

  • Page 4: Safety Guidelines

    Trueshopping Safety guidelines This information is provided for safety and to prevent equipment problems. To help recognise this information, observe the following: WARNING! This indicates a hazardous situation. CAUTION: Caution indicates a potentially hazardous situation which could result in minor or moderate injury.
  • Page 5 Trueshopping Please apply the following precautions when the machine is used: • Read all instructions before using the machine. Keep children away from the machine. • • Always disconnect power before disassembling or repairing the unit of the machine. Follow all safety codes as well as the Occupational •...
  • Page 6 Trueshopping • In any event of accident, always switch off the machine and pull out the plug from socket outlet and disconnect the connection with water. The machine is not intended to be connected to the • potable water mains. If necessary, please use only inlet hose-set approved by IEC 61770.
  • Page 7 Trueshopping Servicing of double-insulated machine In a double-insulated machine, two systems of insulation are provided instead of grounding. No grounding means are provided for a double-insulated machine, nor should grounding means be added to the machine. Servicing a double-insulated machine requires extreme care and knowledge of the system, and should be done only by qualified service personnel.
  • Page 8 Trueshopping WARNING! Explosion hazard Never spray flammable liquids or use pressure • washer in areas containing combustible dust, liquids or vapors. Never operate the machine in a closed building or in/near an explosive environment. WARNING! Do not spray electrical apparatus and wiring.
  • Page 9 Trueshopping • Never operate pressure washer with broken or missing parts. Check equipment regularly and repair or replace worn or damaged parts immediately. Use only the nozzle supplied with this machine. • • Never leave the wand unattended while the machine is running.

  • Page 10: Extension Cords

    Trueshopping CAUTION: Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hose regularly and replace it if damaged. Do not attempt to mend a damaged hose. Extension cords The use of an extension cord is not recommended. Use only extension cords intended for outdoor use.
  • Page 11 Trueshopping • This machine is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
  • Page 12 Trueshopping • High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hosed, fittings and couplings recommended by the manufacturer. • To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.
  • Page 13 Trueshopping WARNING! The machine is intended to be used at a temperature above 0 degree. (Only for machine with power cord of H05VV-F). To ensure the machine safety, please only use • original spare parts (including nozzle) from the manufacturer or approved by the manufacturer. Do not use the machine before you change them if they are damaged.
  • Page 14 Trueshopping • If connecting this machine to portable water mains, you must install a backflow preventer in the water pipe to prevent dirty water flow back to the drinking water system. The backflow preventer should comply with EN 60335-2-79 ANNEX AA.

  • Page 15: Installation, Electrical & Water Connections

    Trueshopping Installation, electrical & water connections 1. Pressure cleaner 2. Water supply hose 3. Water connection 4. Water inlet 5. High pressure tube 6. High pressure w ater outlet 7. Spray gun 8. Supply power Pre-operation...

  • Page 16: Adjusting Fan Pattern

    Trueshopping Adjusting fan pattern The angle of spray coming out of the lance may be adjusted on some lances by rotating the nozzle. This will vary the spray pattern from approximately a 0° narrow high impact stream to a 60° wide fan spray. (See...
  • Page 17 Trueshopping A narrow stream has high impact force on the cleaning surface and results in maximum deep cleaning in a concentrated area. However, this narrow high impact spray must be used cautiously, as it may damage some surfaces. A wide fan pattern will distribute the impact of the water over a larger area, resulting in excellent cleaning action with a reduced risk of surface damage.

  • Page 18: Nozzle Cleaning Instructions

    Trueshopping Nozzle cleaning instructions A clogged or partially clogged nozzle can cause a significant reduction of water coming out of the nozzle and cause the unit to pulsate while spraying. To clean out nozzle: • Turn off and unplug unit.
  • Page 19 Trueshopping...
  • Page 20 Trueshopping Angle to the cleaning surface When spraying water against a surface, maximum impact is generated when the water strikes the surface “head on.” However, this type of impact tends to cause dirt particles to imbed in the surface, thereby preventing the desired cleaning action.
  • Page 21 Trueshopping Distance from cleaning surface Another factor that determines the impact force of the water is the distance from the spray nozzle to the cleaning surface. The impact force of the water is increased as the nozzle is moved closer to the surface.
  • Page 22 Trueshopping Turbo nozzle (Not included with all models) A turbo nozzle, sometimes referred to as a rotary nozzle, is a very effective tool that can significantly reduce cleaning time. The turbo nozzle combines the power of a narrow high impact stream and the efficiency of a 25 degree fan pattern.
  • Page 23 Trueshopping Low/high pressure adjustable lance Using high pressure: Please make sure the trigger is released and there is not any water spraying. Then turn the rear part of spray nozzle withershins (fig 4). Squeeze the trigger, the gun will spray water with high pressure.

  • Page 24: Using Detergent

    Trueshopping Water inlet screen The water inlet filter must be inspected regularly, so as to avoid blockage and restriction in the water supply to the pump (fig 5). Fig6 Fig 7 Using detergent Add detergent to the container. Set the adjustable spray wand at low pressure position.

  • Page 25: Operation

    Trueshopping Detergents The use of detergents can dramatically reduce cleaning time and assist in the removal of difficult stains. Some detergents have been customised for pressure washer use on specific cleaning tasks. These detergents are approximately as thick as water.

  • Page 26: Surface Preparation

    Trueshopping The following cleaning procedure will help you to organise your cleaning task, and ensure that you achieve the most beneficial results in the shortest amount of time. Remember to use the spraying/cleaning techniques previously listed. Surface preparation Before starting a pressure wash cleaning job, it is important to prepare the surface that is to be cleaned.
  • Page 27 Trueshopping Initial high pressure rinse The next step is to spray the cleaning surface with water to clear off any dirt or grime that may have collected on the surface. This will allow your detergent to attack the deep down dirt that has worked its way into the cleaning surface.
  • Page 28 Trueshopping CAUTION: Never turn water supply off before turning motor off. Serious damage could occur to the pump and/ or motor. WARNING! Never disconnect high pressure discharge hose from machine while system is pressurised. To depressurise, turn motor off, turn water supply off and squeeze gun trigger 2-3 times.

  • Page 29: Technical Data

    Resulting heat buildup will damage pump. 5. Before adjusting nozzle’s pressure (high-to-low or low- to-high) release trigger. Failure to do so will reduce life of o-rings in lance. Technical data ITEM 110CB2400 Working pressure 11MPa(110bar) Allowable pressure 16.5MPa(165bar) Working flow rate 6.6 l/min Max flow rate 8.2 l/min...

  • Page 30: Electrical Diagram

    Trueshopping Electrical diagram Troubleshooting Symptom Possible cause(s) Corrective Action(s) No detergent 1. Lance nozzle is not in low pres- 1. Slide lance nozzle into low suction –units sure. pressure position. with tanks. 2. High pressure exten- 2. Remove high pressure exten-...
  • Page 31 Trueshopping Symptom Possible cause(s) Corrective Action(s) Pressure washer 1. Unit is pressurised. 1. Squeeze trigger on gun. does not start up. 2. Plug is not well connected 2. Check plug, socket or electric socket is faulty. and fuse. 3. Extension cord is too long or 3.
  • Page 32 Trueshopping 3. Valves dirty, worn of stuck. 3. Call the dealer. 4. Water seals worn. 4. Call the dealer. Motor stops 1. Extension cord is too long or 1. Remove extension cord(see Suddenly. wire size too small. page 4). 2. Thermal safety switch has 2 .Check that main supply...

  • Page 33: Inspection And Maintenance

    Trueshopping Inspection & maintenance For safety make sure to clean the machine every three- months. Before working, be sure to inspect the filter and the nozzle, make sure there is no impurity. After working, make sure there is no water in the pump and the hose.
  • Page 34 Trueshopping If electrical machines are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old machines with new ones, the retailer is legally obligated to take back your old...
