Summary of Contents for Trueshopping 90P1850

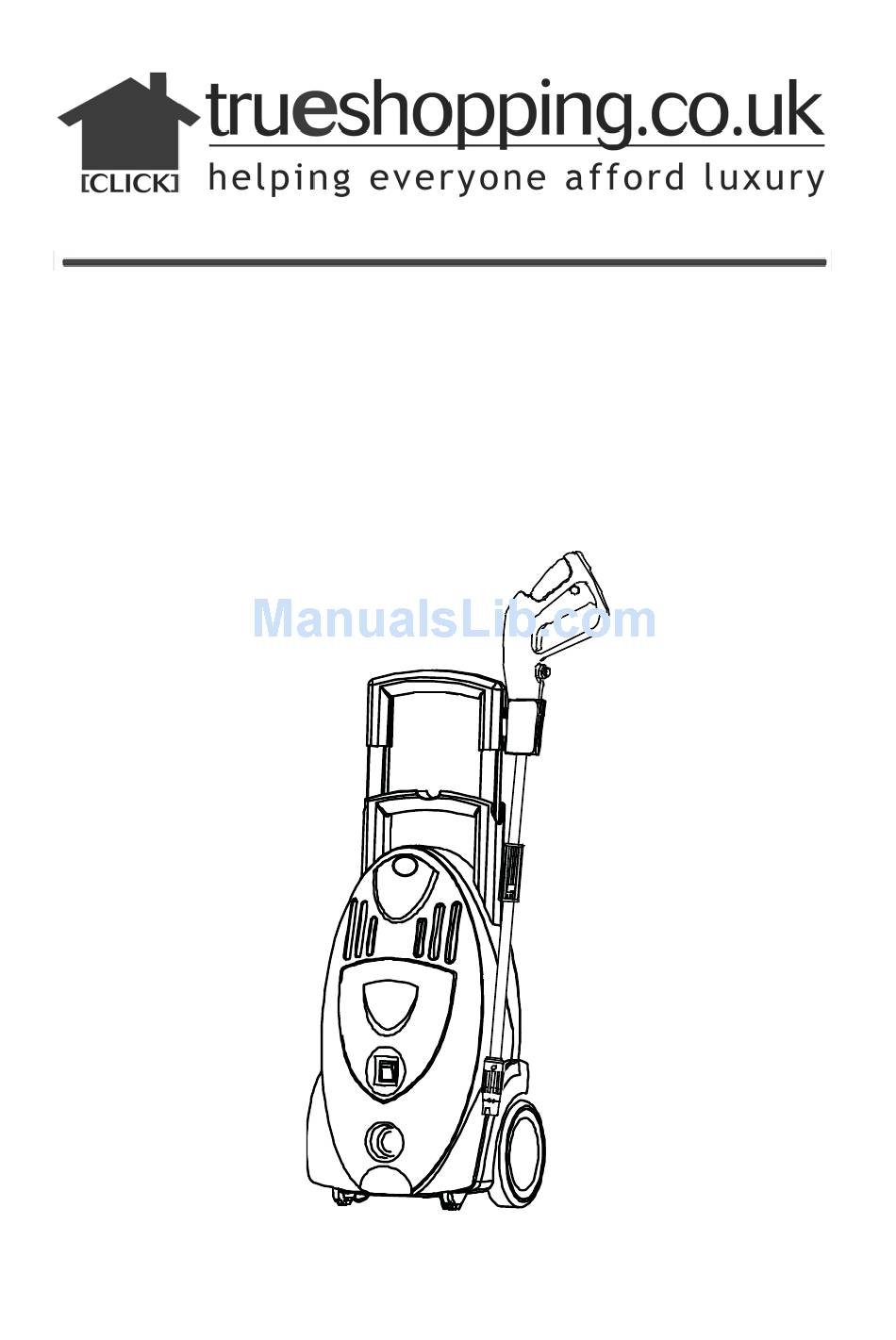

- Page 1 Offering a wide selection of products at competitive prices Electric Pressure Washers 90P1850 Instruction Manual...
- Page 2 Trueshopping Introduction Do not use the machine without reading the Instruction Manual. Please save these instructions. The portable pressure washing machine is a highly specialised multifunctional machine with exceptionally reliable safety assurance, which must be inspected before use. Automatic ON/OFF The motor on this pressure washer does not run continuously.
-
Page 3: Safety Guidelines
Trueshopping Safety guidelines This information is provided for safety and to prevent equipment problems. To help recognise this information, observe the following: WARNING! This indicates a hazardous situation. CAUTION: Caution indicates a potentially hazardous situation which could result in minor or moderate injury. - Page 4 Trueshopping Please apply the following precautions when the machine is used: Read all instructions before using the machine. Keep children away from the machine. Always disconnect power before disassembling or repairing the unit of the machine. Follow all safety codes as well as the Occupational Safety and Health Act (OSHA).
- Page 5 Trueshopping machine and pull out the plug from socket outlet and disconnect the connection with water. The machine is not intended to be connected to the potable water mains. If necessary, please use only inlet hose-set approved by IEC 61770. The necessary length of the water supply hose is 30cm, and the pressure of the water supply hose is 0.8...
- Page 6 Trueshopping Servicing of double-insulated machine In a double-insulated machine, two systems of insulation are provided instead of grounding. No grounding means are provided for a double-insulated machine, nor should grounding means be added to the machine. Servicing a double-insulated machine requires extreme care and knowledge of the system, and should be done only by qualified service personnel.
- Page 7 Trueshopping WARNING! Explosion hazard Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquids or vapors. Never operate the machine in a closed building or in/near an explosive environment. WARNING! Do not spray electrical apparatus and wiring.
- Page 8 Trueshopping missing parts. Check equipment regularly and repair or replace worn or damaged parts immediately. Use only the nozzle supplied with this machine. Never leave the wand unattended while the machine is running. Never attempt to alter factory settings. Altering factory settings could damage the unit and will void the warranty.
-
Page 9: Extension Cords
Trueshopping hoses may cause injury. Examine hose regularly and replace it if damaged. Do not attempt to mend a damaged hose. Extension cords The use of an extension cord is not recommended. Use only extension cords intended for outdoor use. These are identified by the mark “Acceptable for use with outdoor... - Page 10 Trueshopping This machine is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
- Page 11 Trueshopping High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hosed, fittings and couplings recommended by the manufacturer. To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.
- Page 12 Trueshopping WARNING! The machine is intended to be used at a temperature above 0 degree. (Only for machine with power cord of H05VV-F). To ensure the machine safety, please only use original spare parts (including nozzle) from the manufacturer or approved by the manufacturer. Do not use the machine before you change them if they are damaged.
- Page 13 Trueshopping If connecting this machine to portable water mains, you must install a backflow preventer in the water pipe to prevent dirty water flow back to the drinking water system. The backflow preventer should comply with EN 60335-2-79 ANNEX AA.
-
Page 14: Installation, Electrical & Water Connections
Trueshopping Installation, electrical & water connections 1. Pressure cleaner 2. Water supply hose 3. Water connection 4. Water inlet 5. High pressure tube 6. High pressure water outlet 7. Spray gun 8. Supply power Pre-operation Adjusting fan pattern The angle of spray coming out of the lance may be adjusted on some lances by rotating the nozzle. - Page 15 Trueshopping A narrow stream has high impact force on the cleaning surface and results in maximum deep cleaning in a concentrated area. However, this narrow high impact spray must be used cautiously, as it may damage some surfaces. A wide fan pattern will distribute the impact of the water over a larger area, resulting in excellent cleaning action with a reduced risk of surface damage.
- Page 16 Trueshopping A clogged or partially clogged nozzle can cause a significant reduction of water coming out of the nozzle and cause the unit to pulsate while spraying. To clean out the nozzle: • Turn off and unplug unit. • Turn off water supply. Relieve any pressure trapped in the hose by squeezing trigger 2-3 times.
- Page 17 Trueshopping Angle to the cleaning surface When spraying water against a surface, maximum impact is generated when the water strikes the surface “head on.” However, this type of impact tends to cause dirt particles to imbed in the surface, thereby preventing the desired cleaning action.
- Page 18 Trueshopping Distance from cleaning surface Another factor that determines the impact force of the water is the distance from the spray nozzle to the cleaning surface. The impact force of the water is increased as the nozzle is moved closer to the surface.
- Page 19 Trueshopping Turbo nozzle (Not included with all models) A turbo nozzle, sometimes referred to as a rotary nozzle, is a very effective tool that can significantly reduce cleaning time. The turbo nozzle combines the power of a narrow high impact stream and the efficiency of a 25 degree fan pattern.
- Page 20 Trueshopping Low/high pressure adjustable lance Using high pressure: Please make sure the trigger is released and there is not any water spraying. Then turn the rear part of spray nozzle withershins (fig 4). Squeeze the trigger, the gun will spray water with high pressure.
- Page 21 Trueshopping Water inlet screen The water inlet filter must be inspected regularly, so as to avoid blockage and restriction in the water supply to the pump (fig 5). Using detergent Add detergent to the container. Set the adjustable spray wand at low pressure position. (fig 6) Trigger gun to spray detergent.
-
Page 22: Operation
Trueshopping The cleaning power of detergents comes from applying them to a surface and giving the chemicals time to break down the dirt and grime. Detergents work best when applied at low pressure. The combination of chemical action and high pressure rinsing is very effective. - Page 23 Trueshopping This is done by clearing the area of furniture, and making sure that all windows and doors are closed tight. In addition, you should make sure that all plants and trees adjacent to the cleaning area are protected by a drop cloth.
- Page 24 Trueshopping Shut down 1. Be sure all detergent is flushed from system. 2. Turn off motor. 3. Turn off water supply. 4. After motor and water supply are turned off, trigger gun to depressurise system. CAUTION: Never turn water supply off before turning motor off.
- Page 25 Trueshopping Storage Do not store pressure washer outdoors. Do not store pressure washer where it might freeze. Tips for extending the life of your pressure washer. 1. Never operate unit without water. 2. Pressure washer is not meant to pump hot water.
-
Page 26: Technical Data
Trueshopping Technical data ITEM 90P1850 Working pressure 9MPa(90bar) Allowable pressure 13.5MPa(135bar) Working flow rate 6 l/min Max. flow rate 7.5 l/min Max. pressure water supply 0.4MPa(4 bar) Motor capacity 1850W Power supply voltage 240V~50Hz LPA(sound pressure) 78dB(A),k=3 dB(A) LWA(acoustic power) 93 dB(A) ＜2.5m/s... -
Page 27: Troubleshooting
Trueshopping Electrical diagram Troubleshooting Symptom Possible cause(s) Corrective Action(s) No detergent 1. Lance nozzle is not in low pres- 1. Slide lance nozzle into low suction –units sure. pressure position. with tanks. 2. High pressure exten- 2. Remove high pressure exten-... - Page 28 Trueshopping Symptom Possible cause(s) Corrective Action(s) Pressure washer 1. Unit is pressurised. 1. Squeeze trigger on gun. does not start up. 2. Plug is not well connected 2. Check plug, socket or electric socket is faulty. and fuse. 3. Extension cord is too long or 3.
-
Page 29: Inspection And Maintenance
Trueshopping Inspection & maintenance For safety make sure to clean the machine every three-months. Before working, be sure to inspect the filter and the nozzle, make sure there is no impurity. After working, make sure there is no water in the pump and the hose. - Page 30 Trueshopping If electrical machines are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old machines with new ones, the retailer is legally obligated to take back your old machine for disposals free of charge.
- Page 31 Trueshopping EC DECLARATION OF CONFORMITY The undersigned, as authorised by: TrueShopping Ltd, Unit 1&2 Dawson Court, Billington Road, Burnley, Lancashire, UK, BB11 5UB Declares that the following equipment manufactured by Trueshopping Ltd (Address above) conforms to the Directive: - 2000/14/EC...
- Page 32 Trueshopping www.trueshopping.co.uk...
