Seaward
OWNER'S MANUAL
Installation – Operation - Maintenance
MODELS:
G2247T-5100 (120v)
G2247T-5400 (208v)
G2247T-5200 (240v)
Serial Number:
Save the Owner's Manual / Installation instructions for local inspector's use.
Installer: Provide this manual to the vehicle owner. Vehicle Owner: Keep this manual for future reference

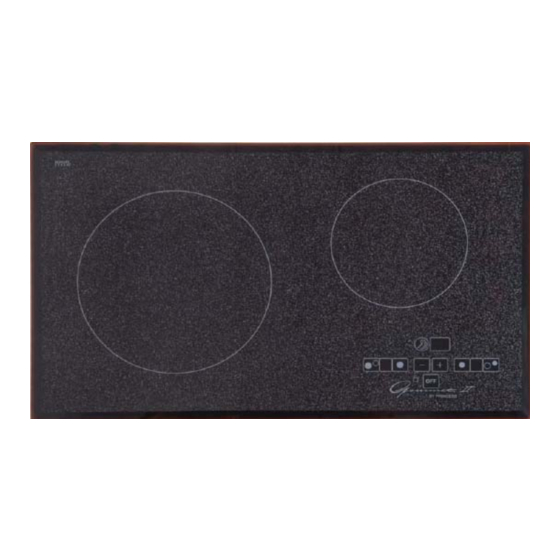

GOURMET II
IMPORTANT:
Read all instructions before operating stove.
.
Products
BY PRINCESS
BY PRINCESS
G2247TV-5100 (120v)
G2247TV-5400 (208v)
G2247TV-5200 (240v)
Advertisement
Table of Contents
Related Manuals for Seaward GOURMET II G2247T-5100
Summary of Contents for Seaward GOURMET II G2247T-5100

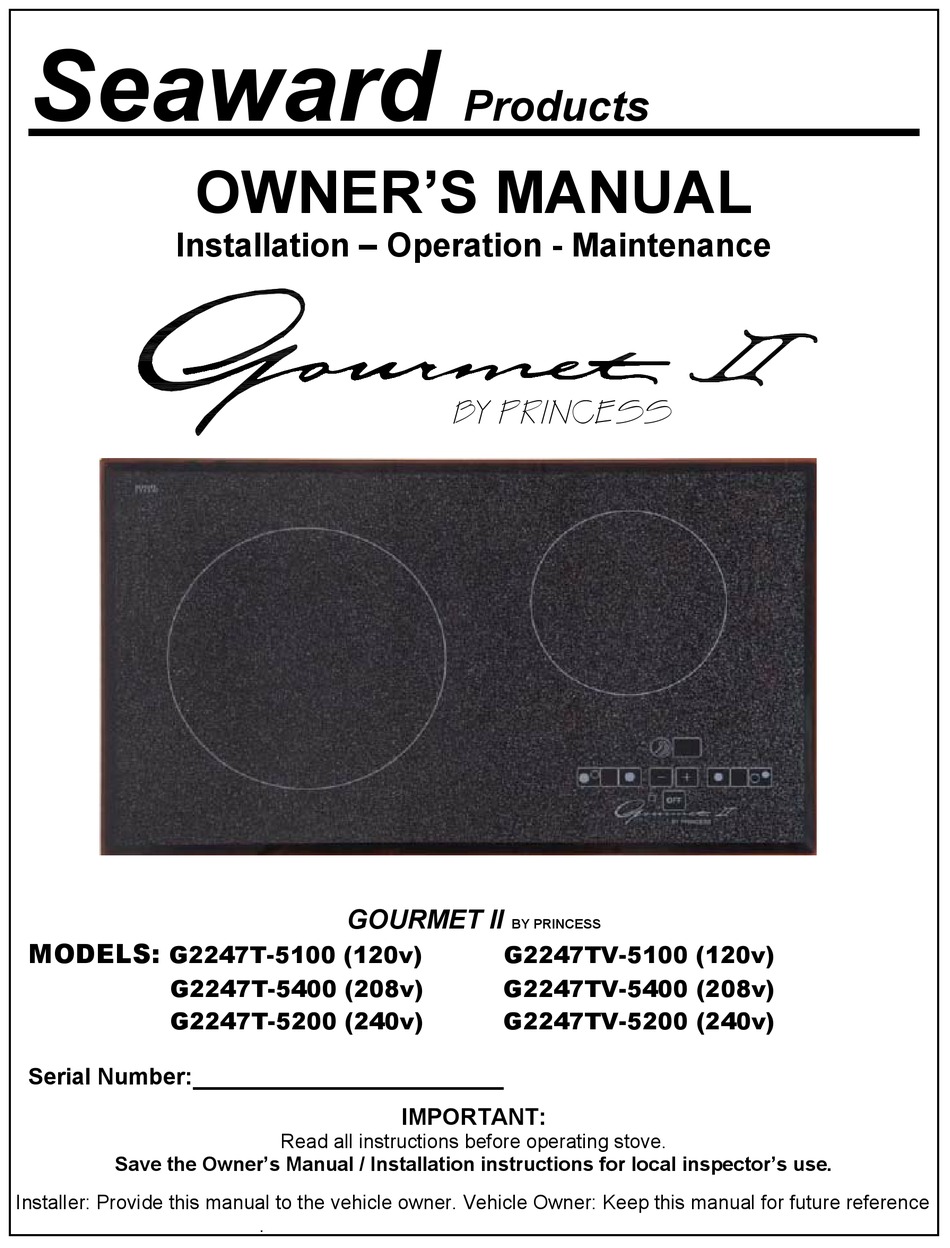

- Page 1 Seaward Products OWNER’S MANUAL Installation – Operation - Maintenance BY PRINCESS GOURMET II BY PRINCESS MODELS: G2247T-5100 (120v) G2247TV-5100 (120v) G2247T-5400 (208v) G2247TV-5400 (208v) G2247T-5200 (240v) G2247TV-5200 (240v) Serial Number: IMPORTANT: Read all instructions before operating stove. Save the Owner’s Manual / Installation instructions for local inspector’s use.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS Save the owner’s manual / instructions for local Electrical Inspector's use. CAUTION! To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If the cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 in. -
Page 3: Electrical Installation
UTENSILS SHOULD BE TURNED INWARD AND NOT EXTEND OVER ADJACENT SURFACE UNITS: To reduce the risk of burns, ignition of flammable materials and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units. - Page 4 COOKING VESSEL SELECTION The physical characteristics of pots and pane influence the performance of cooking. Heat is transferred through the glass top to the cooking vessel. Proper contact of the cooking vessel the stove top will assure heat is readily absorbed. Vessels with the following characteristics will work well. Flat Bottom: Use pans with bottoms that become flat when heated.
-
Page 5: Stainless Steel
THE MATERIAL OF THE VESSEL ALSO INFLUENCES COOKING PERFORMANCE. Stainless Steel: Used for sauces, soups, vegetables and egg cookery. It responds relatively slowly to temperature changes. The best stainless steel utensils have thick “sandwich” bottoms where a layer of aluminum or copper lies between layers of stainless steel. -
Page 6: Glass Cook-Top Cleaning
GLASS COOK-TOP CLEANING WARNING CLEAN COOK-TOP WITH CAUTION: If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface. Some cleaning material recommended by manufactures for glass may contain an ingredient, which can damage your glass stove top. -
Page 7: Cooking Operation
COOKING OPERATION Digital Timer Display Digital Timer Power Large Burner Power Off Small Burner Power Off Large Burner Power Display Small Burner Power Display Large Burner Select Small Burner Select Increase Burner Power Setting Decrease Burner Power Setting Also Also Decrease Time On Digital Display Increase Time On Digital Display Touch Control Lock Indicator... -
Page 8: Cabinet Installation
TURNING OFF THE UNIT 1. To shut the unit off press the OFF button. If the OFF button is pressed while the burners are on it will also shut the unit off. 2. To activate the safety lock feature press and hold the OFF button for approximately five (5) seconds. - Page 9 PARTS LIST MODELS G2247T-5100, G2247T-5200, G2247T-5400 PART ITEM MODEL NO. DESCRIPTION 80726 ENCLOSURE BOTTOM ASSEMBLY 80706 ALL G2247T MODELS GOURMET TOUCH CONTROL TOP ASSY ALL G2247TV MODELS 80736 G2247T-5100 75200 120V LARGE RADIANT ELEMENT G2247T-5200 75201 240V LARGE RADIANT ELEMENT G2247T-5400 75202 208V LARGE RADIANT ELEMENT...
-
Page 10: Limited Two-Year Warranty
The foregoing warranty and condition shall apply to any repaired, reworked, or replaced products, part or component supplied by SEAWARD and shall in no event be liable to BUYER or BUYER’S customers for any incidental or consequential damages, or loss of use, or other losses, however occasioned.
