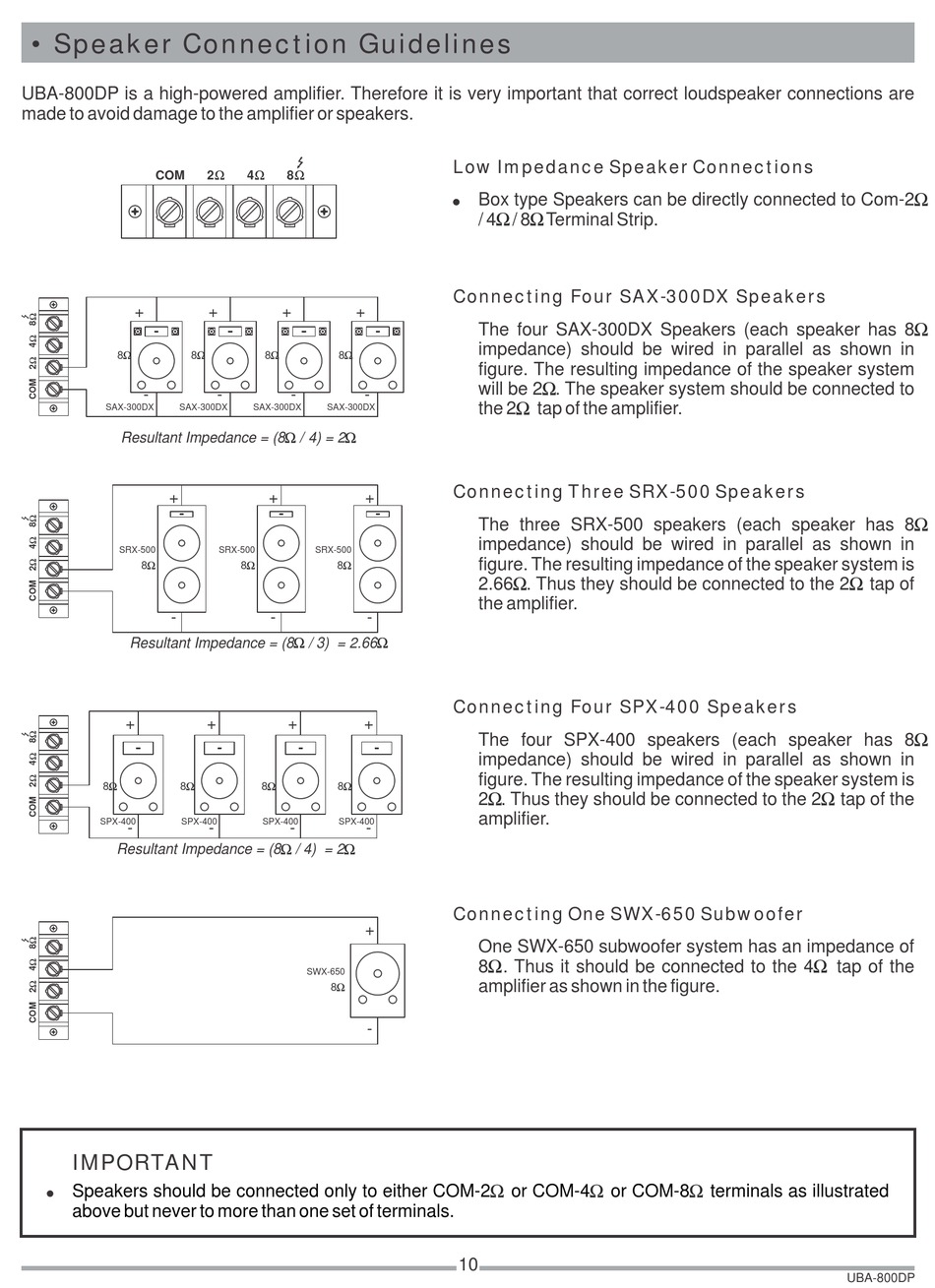

• Speaker Connection Guidelines

UBA-800DP is a high-powered amplifier.
made to avoid damage to the amplifier or speakers.
COM
+
8 8
-
SAX-300DX SAX-300DX
Resultant Impedance = (8 / 4) = 2
+
SRX-500
8
-
Resultant Impedance = (8 / 3) = 2.66
+
8 8
SPX-400 SPX-400
-
Resultant Impedance = (8 / 4) = 2
IMPORTANT
Speakers should be connected only to either COM-2
!
above but never to more than one set of terminals.
Therefore it is very important that correct loudspeaker connections are
2 4 8
+ + +
8 8
- - -
SAX-300DX SAX-300DX
+ +
SRX-500 SRX-500
8 8
- -
+ + +
8 8
SPX-400 SPX-400
- - -
+
SWX-650
8
-
Low Impedance Speaker Connections
! Box type Speakers can be directly connected to Com-2
/ 4 / 8 Terminal Strip.
Connecting Four SAX-300DX Speakers
The four SAX-300DX Speakers (each speaker has 8
impedance) should be wired in parallel as shown in
figure. The resulting impedance of the speaker system
will be 2 . The speaker system should be connected to
the 2 tap of the amplifier.
Connecting Three SRX-500 Speakers
The three SRX-500 speakers (each speaker has 8
impedance) should be wired in parallel as shown in
figure. The resulting impedance of the speaker system is
2.66 . Thus they should be connected to the 2
the amplifier.
Connecting Four SPX-400 Speakers
The four SPX-400 speakers (each speaker has 8
impedance) should be wired in parallel as shown in
figure. The resulting impedance of the speaker system is
2 . Thus they should be connected to the 2
amplifier.
Connecting One SWX-650 Subwoofer
One SWX-650 subwoofer system has an impedance of
8 . Thus it should be connected to the 4
amplifier as shown in the figure.
or COM-4 or COM-8
10
tap of
tap of the
tap of the
terminals as illustrated
UBA-800DP
